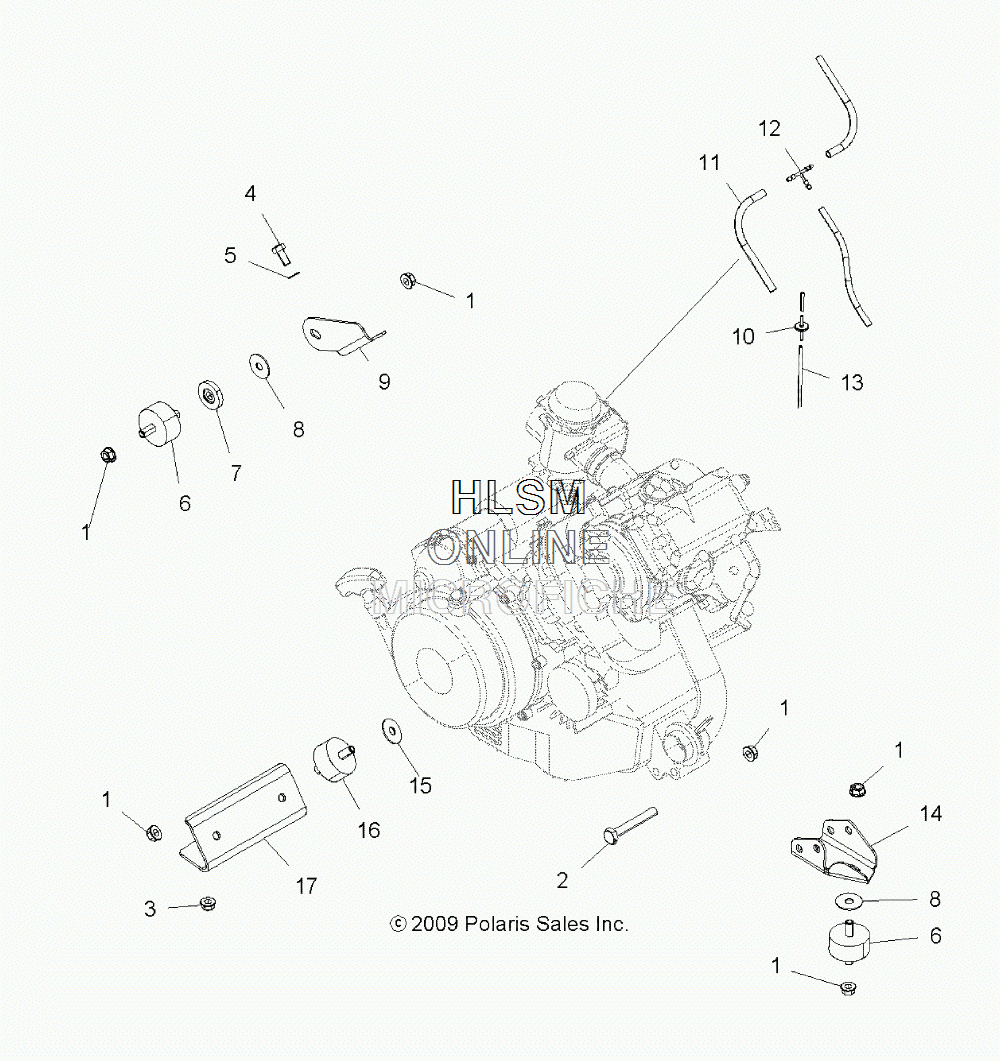

ENGINE - MOUNTING для Polaris TRAIL BLAZER 330 [A12NA32AA] - 2012 года выпуска
-
№АртикулНазвание
-
17547108 NUTNUT
-
27518415 BOLT, FLANGEBOLT, FLANGE
-
37547089 NUT, FLANGE LOCKNUT, FLANGE LOCK
-
47512315 BOLTBOLT
-
57552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
63022077 ISOLATORISOLATOR
-
75430802 INSULATOR, MOTOR MOUNTINSULATOR, MOTOR MOUNT
-
87555823 WASHERWASHER
-
95247344 BRACKET, ENGINE MOUNT, TOPBRACKET, ENGINE MOUNT, TOP
-
107051011 VALVE, CHECKVALVE, CHECK
-
118450003-1525 LINE, FUELLINE, FUEL
-
127052075 T-FITTINGT-FITTING
-
138360009-600 LINE, FUELLINE, FUEL
-
145247342 MOUNT, LOWER FRONTMOUNT, LOWER FRONT
-
157555815 WASHER, FLATWASHER, FLAT
-
163022072 ISOLATORISOLATOR
-
171017072-329 MOUNT, ENGINE, REAR, BLACKMOUNT, ENGINE, REAR, BLACK
