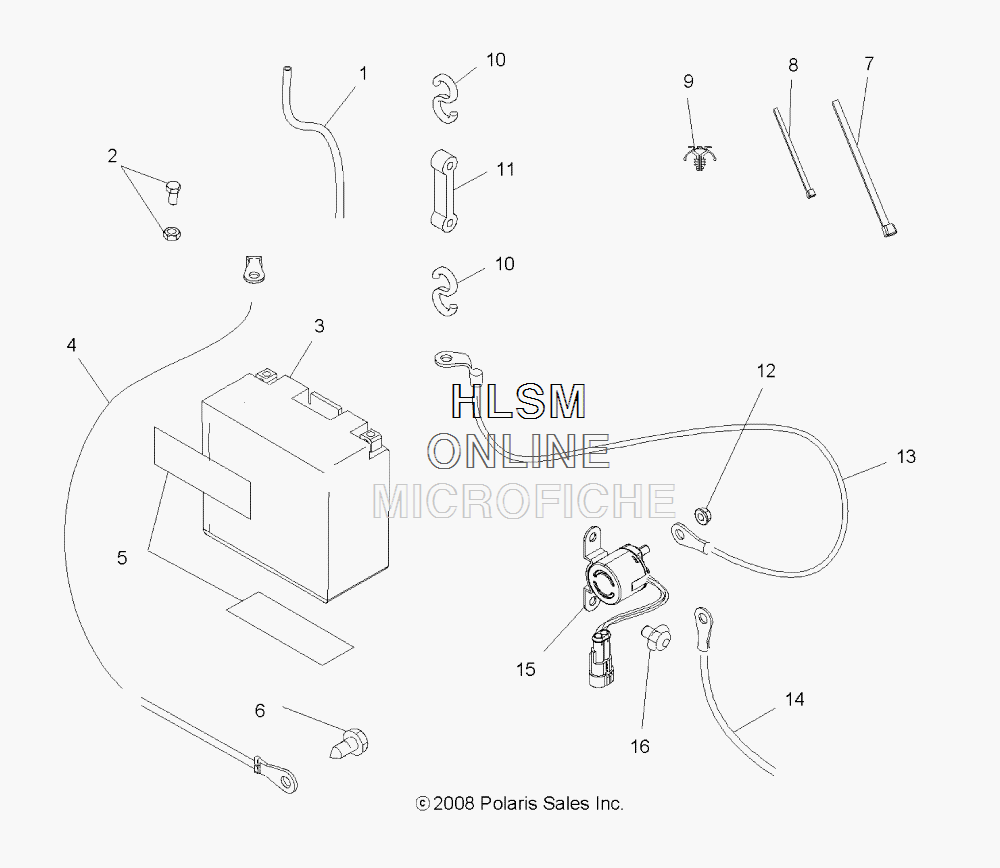

BATTERY для Polaris HAWKEYE 400 HO 2X4 - (BLUE FIRE) METALLIC [A13MB46FZ] - 2013 года выпуска
-
№АртикулНазвание
-
15432077 TUBE, VENTTUBE, VENT
-
22200361 KIT, BATTERY BOLTKIT, BATTERY BOLT
-
34140006 BATTERYBATTERY
-
44013868 CABLE, ELECT.CABLE, ELECT.
-
55810290 PAD, BATTERYPAD, BATTERY
-
67515179 SCREWSCREW
-
77080492 CABLE TIECABLE TIE
-
87080138 CABLE TIECABLE TIE
-
97080965 MOUNT, CABLE TIEMOUNT, CABLE TIE
-
107010032 HOOK, BATTERY STRAPHOOK, BATTERY STRAP
-
115412499 STRAP, BATTERY HOLDDOWNSTRAP, BATTERY HOLDDOWN
-
127547270 NUT, HEX, FLANGENUT, HEX, FLANGE
-
134010471 CABLE, 8.5 INCH, BATTERY/SOLENOID (RED)CABLE, 8.5 INCH, BATTERY/SOLENOID (RED)
-
144011147 CABLE, BATTERY/SOLENOID, 16.5 INCH (RED)CABLE, BATTERY/SOLENOID, 16.5 INCH (RED)
-
154012001 SOLENOID, STARTERSOLENOID, STARTER
-
167512084 SCREWSCREW
