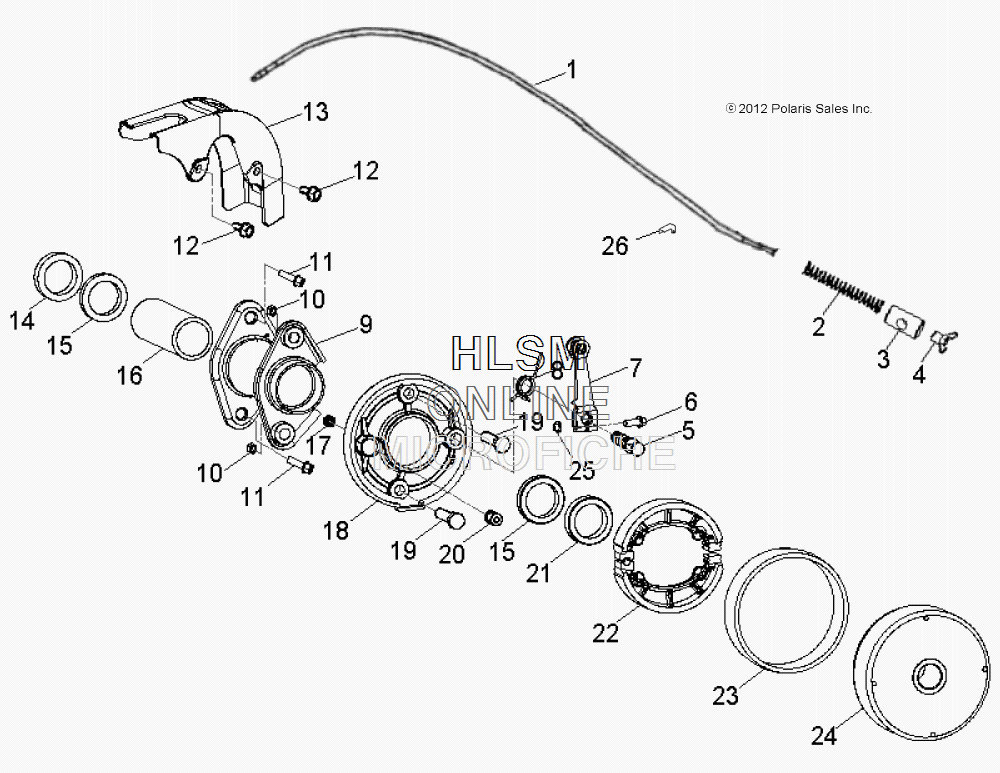

BRAKE - REAR для Polaris OUTLAW 50 - PINK [A13KA05AD] - 2013 года выпуска
-
№АртикулНазвание
-
10453878 CABLE, BRAKE, REARCABLE, BRAKE, REAR
-
20450435 SPRING, CABLE, REARSPRING, CABLE, REAR
-
30453094 SPACER, BRAKE CABLE, REARSPACER, BRAKE CABLE, REAR
-
40451079 NUT, ADJUST, BRAKENUT, ADJUST, BRAKE
-
50450431 SHAFT, CAM, REARSHAFT, CAM, REAR
-
60451783 BOLTBOLT
-
70454753 ARM, BRAKE, REARARM, BRAKE, REAR
-
80450453 SPRINGSPRING
-
90453912-385 HOUSING, AXLE, REAR (SILVER) (AD)HOUSING, AXLE, REAR (SILVER) (AD)
-
100453706 NUTNUT
-
110453707 BOLTBOLT
-
120452215 BOLTBOLT
-
130453880 GUARD, CHAINGUARD, CHAIN
-
140450430 SEAL, OILSEAL, OIL
-
150454032 BEARINGBEARING
-
160453913 TUBE, SPACERTUBE, SPACER
-
170450881 NUTNUT
-
180454707 PLATE, BRAKE, REARPLATE, BRAKE, REAR
-
190450452 BOLTBOLT
-
200450854 SHAFT, FIXED, BRAKE, REARSHAFT, FIXED, BRAKE, REAR
-
210451781 SEAL, OILSEAL, OIL
-
220450434 SHOE, BRAKE, REARSHOE, BRAKE, REAR
-
230450442 RUBBER, PROTECTIVERUBBER, PROTECTIVE
-
240450441 DRUM, BRAKE, REARDRUM, BRAKE, REAR
-
250450489 NUTNUT
-
260454883 RETAINER, CABLE, BRAKERETAINER, CABLE, BRAKE
