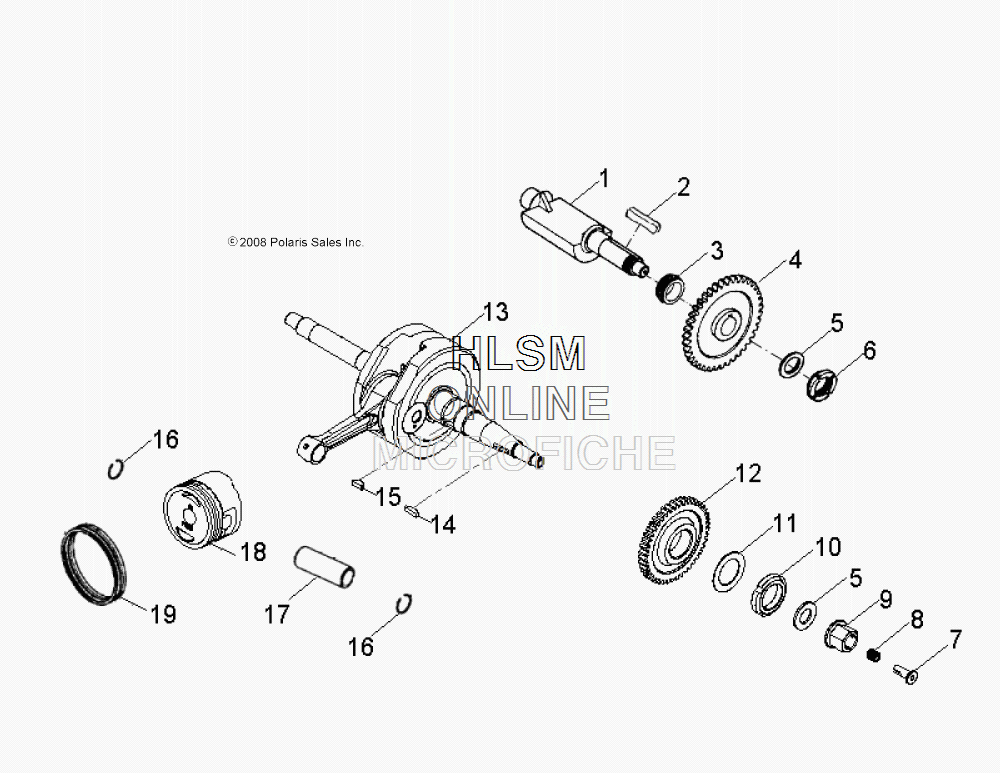

CRANKSHAFT W/ CYLINDER для Polaris PHOENIX 200 - BOARDWALK BLUE [A13PB20AF] - 2013 года выпуска
-
№АртикулНазвание
-
10452435 SHAFT, BALANCESHAFT, BALANCE
-
20452439 KEY, WOODRUFFKEY, WOODRUFF
-
30452436 SPROCKET, OIL PUMPSPROCKET, OIL PUMP
-
40452437 GEAR, BALANCE, DRIVENGEAR, BALANCE, DRIVEN
-
50450264 WASHERWASHER
-
60452438 NUT, LOCKNUT, LOCK
-
70452445 TUBE, OIL, CRANKSHAFTTUBE, OIL, CRANKSHAFT
-
80452444 SPRING, OILSPRING, OIL
-
90452442 NUT, FLANGENUT, FLANGE
-
100452441 NUT, LOCKNUT, LOCK
-
110452440 WASHER, GEARWASHER, GEAR
-
120452434 GEAR, BALANCEGEAR, BALANCE
-
130453752 ASM., CRANKSHAFTASM., CRANKSHAFT
-
140452429 KEY, WOODRUFFKEY, WOODRUFF
-
150452430 KEY, WOODRUFFKEY, WOODRUFF
-
160452443 CLIP, PISTON PINCLIP, PISTON PIN
-
170452433 PIN, PISTONPIN, PISTON
-
180452432 PISTONPISTON
-
190452431 RINGRING
