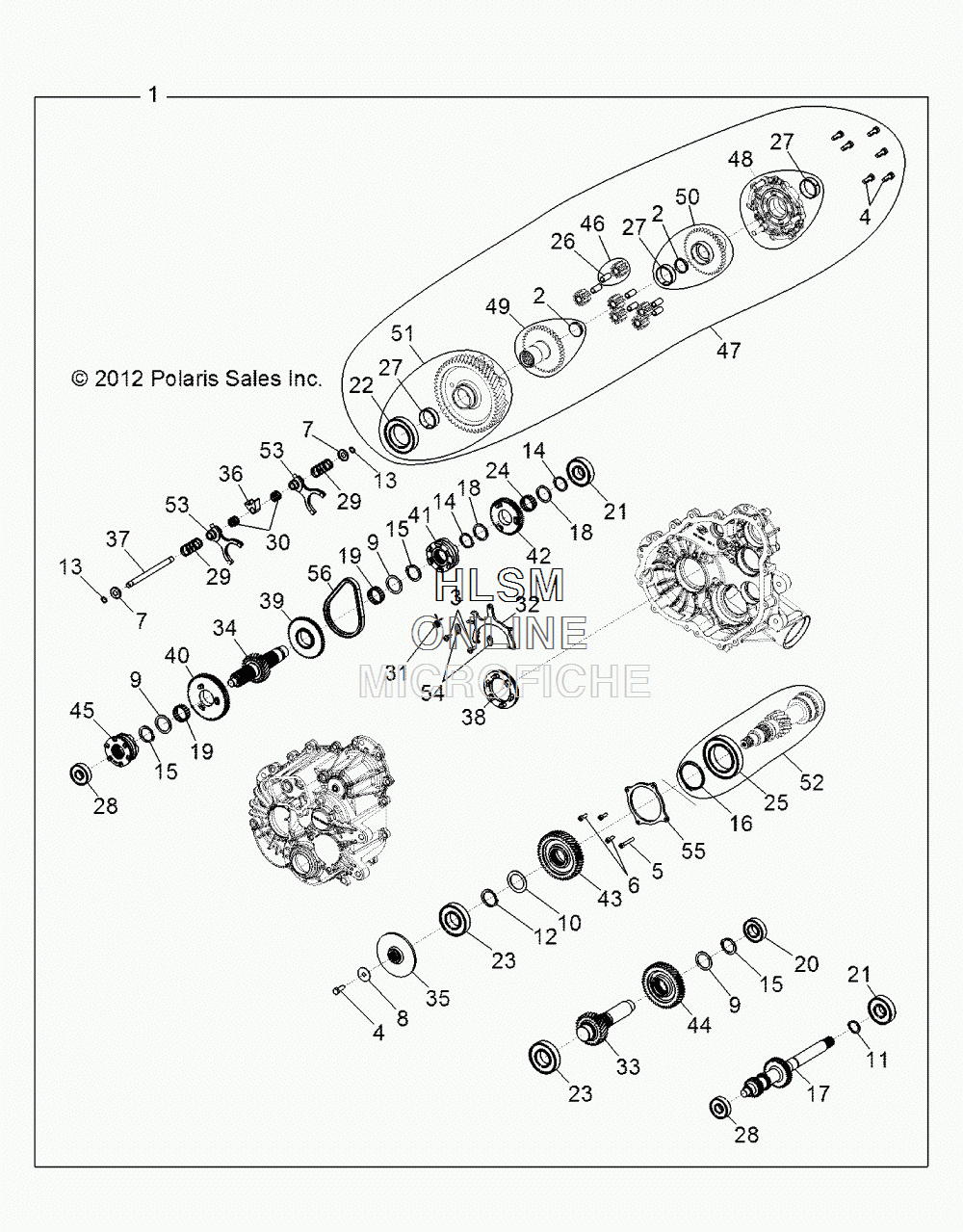

MAIN GEARCASE INTERNAL для Polaris RZR 570 EFI INTERNATIONAL INDY RED [R13VH57FX] - 2013 года выпуска
![](/wa-data/public/shop/sheme/polaris/atv/fe4ec1b3-e85f-4c79-b80a-90d4ca1fc0c5.gif)
-
№АртикулНазвание
-
11333133 ASM. GEARCASE (INCL. ALL)ASM. GEARCASE (INCL. ALL)
-
23534249 PLUGPLUG
-
33534329 SCREW, TORX PAN HDSCREW, TORX PAN HD
-
43235096 SCREWSCREW
-
53235208 SCREW, SOCKET HEAD, CAPSCREW, SOCKET HEAD, CAP
-
63235332 SCREW, SOCKET HEAD, CAPSCREW, SOCKET HEAD, CAP
-
73234091 WASHER, CUPWASHER, CUP
-
83234952 WASHER, FENDERWASHER, FENDER
-
93235211 WASHERWASHER
-
103235212 WASHERWASHER
-
113233106 RING, RETAINING BASIC, EXTERNALRING, RETAINING BASIC, EXTERNAL
-
123233364 RING, RETAINING, SHAFTRING, RETAINING, SHAFT
-
133234090 RING, RETAINING BASIC, EXTERNALRING, RETAINING BASIC, EXTERNAL
-
143234205 RING, RETAININGRING, RETAINING
-
153235214 RING, RETAINING BASIC, EXTERNALRING, RETAINING BASIC, EXTERNAL
-
163235216 RING, RETAININGRING, RETAINING
-
173235429 SHAFT, INPUTSHAFT, INPUT
-
183233378 WASHER, THRUSTWASHER, THRUST
-
193233014 BEARING, NEEDLEBEARING, NEEDLE
-
203233019 BEARING, BALLBEARING, BALL
-
213233020 BEARING, BALLBEARING, BALL
-
223233268 BEARING, BALLBEARING, BALL
-
233234065 BEARING, BALLBEARING, BALL
-
243233384 BEARING, NEEDLEBEARING, NEEDLE
-
253235218 BEARING, BALLBEARING, BALL
-
263234239 BEARING, PLAINBEARING, PLAIN
-
273234241 BEARING, PLAINBEARING, PLAIN
-
283234652 BEARING, BALLBEARING, BALL
-
293234078 SPRING, COMPRESSIONSPRING, COMPRESSION
-
303234089 SPRING, COMPRESSIONSPRING, COMPRESSION
-
313234276 SPRING, TORSION, RETURNSPRING, TORSION, RETURN
-
323235455 FORK, PIVOT SHIFTFORK, PIVOT SHIFT
-
333235223 SHAFT, IDLER 29TSHAFT, IDLER 29T
-
343235380 SHAFT, REVERSE 27TSHAFT, REVERSE 27T
-
353235372 DISC, BRAKEDISC, BRAKE
-
363234073 COLLAR, SHIFTCOLLAR, SHIFT
-
373234079 RAIL, SHIFT SHAFTRAIL, SHIFT SHAFT
-
383234928 DOG, ENGAGEMENTDOG, ENGAGEMENT
-
393235231 SPROCKET, 48T 6-FACESPROCKET, 48T 6-FACE
-
403235232 GEAR, LOW 67TGEAR, LOW 67T
-
413235233 DOG, ENGAGEMENT 6-FACEDOG, ENGAGEMENT 6-FACE
-
423235234 GEAR, 53TGEAR, 53T
-
433235236 GEAR, 46T STAGE 3GEAR, 46T STAGE 3
-
443235381 GEAR, 46T STAGE 2GEAR, 46T STAGE 2
-
453235457 SHIFT DOG, PARKSHIFT DOG, PARK
-
463234469 SUBASSEMBLY, PLANET GEAR (INCL. BUSHING)SUBASSEMBLY, PLANET GEAR (INCL. BUSHING)
-
473235373 DIFF, LOCKINGDIFF, LOCKING
-
483235376 SUBASSY, DIFF COVER (INCL. PLUG, BUSHING)SUBASSY, DIFF COVER (INCL. PLUG, BUSHING)
-
493235374 SUBASSEMBLY, 39T SIDE GEAR (INCL. PLUG)SUBASSEMBLY, 39T SIDE GEAR (INCL. PLUG)
-
503235375 SUBASSY, 39T SIDE GEAR (INCL. PLUG, BUSHING)SUBASSY, 39T SIDE GEAR (INCL. PLUG, BUSHING)
-
513235378 SUBASSY, GEAR 53T (INCL. PINS, BUSHING, BEARING)SUBASSY, GEAR 53T (INCL. PINS, BUSHING, BEARING)
-
523235371 SUBASSY, 11T PINION (INCL. BEARING, RETAINING RING)SUBASSY, 11T PINION (INCL. BEARING, RETAINING RING)
-
533235454 SUBASSY, SHIFT FORKSUBASSY, SHIFT FORK
-
543234934 RETAINER, FORKRETAINER, FORK
-
553235241 COVER, BEARING, CENTER DRIVECOVER, BEARING, CENTER DRIVE
-
563234737 CHAIN, SILENTCHAIN, SILENT
-
11333133 ASM. GEARCASE (INCL. ALL)ASM. GEARCASE (INCL. ALL)
-
23534249 PLUGPLUG
-
33534329 SCREW, TORX PAN HDSCREW, TORX PAN HD
-
43235096 SCREWSCREW
-
53235208 SCREW, SOCKET HEAD, CAPSCREW, SOCKET HEAD, CAP
-
63235332 SCREW, SOCKET HEAD, CAPSCREW, SOCKET HEAD, CAP
-
73234091 WASHER, CUPWASHER, CUP
-
83234952 WASHER, FENDERWASHER, FENDER
-
93235211 WASHERWASHER
-
103235212 WASHERWASHER
-
113233106 RING, RETAINING BASIC, EXTERNALRING, RETAINING BASIC, EXTERNAL
-
123233364 RING, RETAINING, SHAFTRING, RETAINING, SHAFT
-
133234090 RING, RETAINING BASIC, EXTERNALRING, RETAINING BASIC, EXTERNAL
-
143234205 RING, RETAININGRING, RETAINING
-
153235214 RING, RETAINING BASIC, EXTERNALRING, RETAINING BASIC, EXTERNAL
-
163235216 RING, RETAININGRING, RETAINING
-
173235429 SHAFT, INPUTSHAFT, INPUT
-
183233378 WASHER, THRUSTWASHER, THRUST
-
193233014 BEARING, NEEDLEBEARING, NEEDLE
-
203233019 BEARING, BALLBEARING, BALL
-
213233020 BEARING, BALLBEARING, BALL
-
223233268 BEARING, BALLBEARING, BALL
-
233234065 BEARING, BALLBEARING, BALL
-
243233384 BEARING, NEEDLEBEARING, NEEDLE
-
253235218 BEARING, BALLBEARING, BALL
-
263234239 BEARING, PLAINBEARING, PLAIN
-
273234241 BEARING, PLAINBEARING, PLAIN
-
283234652 BEARING, BALLBEARING, BALL
-
293234078 SPRING, COMPRESSIONSPRING, COMPRESSION
-
303234089 SPRING, COMPRESSIONSPRING, COMPRESSION
-
313234276 SPRING, TORSION, RETURNSPRING, TORSION, RETURN
-
323235455 FORK, PIVOT SHIFTFORK, PIVOT SHIFT
-
333235223 SHAFT, IDLER 29TSHAFT, IDLER 29T
-
343235380 SHAFT, REVERSE 27TSHAFT, REVERSE 27T
-
353235372 DISC, BRAKEDISC, BRAKE
-
363234073 COLLAR, SHIFTCOLLAR, SHIFT
-
373234079 RAIL, SHIFT SHAFTRAIL, SHIFT SHAFT
-
383234928 DOG, ENGAGEMENTDOG, ENGAGEMENT
-
393235231 SPROCKET, 48T 6-FACESPROCKET, 48T 6-FACE
-
403235232 GEAR, LOW 67TGEAR, LOW 67T
-
413235233 DOG, ENGAGEMENT 6-FACEDOG, ENGAGEMENT 6-FACE
-
423235234 GEAR, 53TGEAR, 53T
-
433235236 GEAR, 46T STAGE 3GEAR, 46T STAGE 3
-
443235381 GEAR, 46T STAGE 2GEAR, 46T STAGE 2
-
453235457 SHIFT DOG, PARKSHIFT DOG, PARK
-
463234469 SUBASSEMBLY, PLANET GEAR (INCL. BUSHING)SUBASSEMBLY, PLANET GEAR (INCL. BUSHING)
-
473235373 DIFF, LOCKINGDIFF, LOCKING
-
483235376 SUBASSY, DIFF COVER (INCL. PLUG, BUSHING)SUBASSY, DIFF COVER (INCL. PLUG, BUSHING)
-
493235374 SUBASSEMBLY, 39T SIDE GEAR (INCL. PLUG)SUBASSEMBLY, 39T SIDE GEAR (INCL. PLUG)
-
503235375 SUBASSY, 39T SIDE GEAR (INCL. PLUG, BUSHING)SUBASSY, 39T SIDE GEAR (INCL. PLUG, BUSHING)
-
513235378 SUBASSY, GEAR 53T (INCL. PINS, BUSHING, BEARING)SUBASSY, GEAR 53T (INCL. PINS, BUSHING, BEARING)
-
523235371 SUBASSY, 11T PINION (INCL. BEARING, RETAINING RING)SUBASSY, 11T PINION (INCL. BEARING, RETAINING RING)
-
533235454 SUBASSY, SHIFT FORKSUBASSY, SHIFT FORK
-
543234934 RETAINER, FORKRETAINER, FORK
-
553235241 COVER, BEARING, CENTER DRIVECOVER, BEARING, CENTER DRIVE
-
563234737 CHAIN, SILENTCHAIN, SILENT
