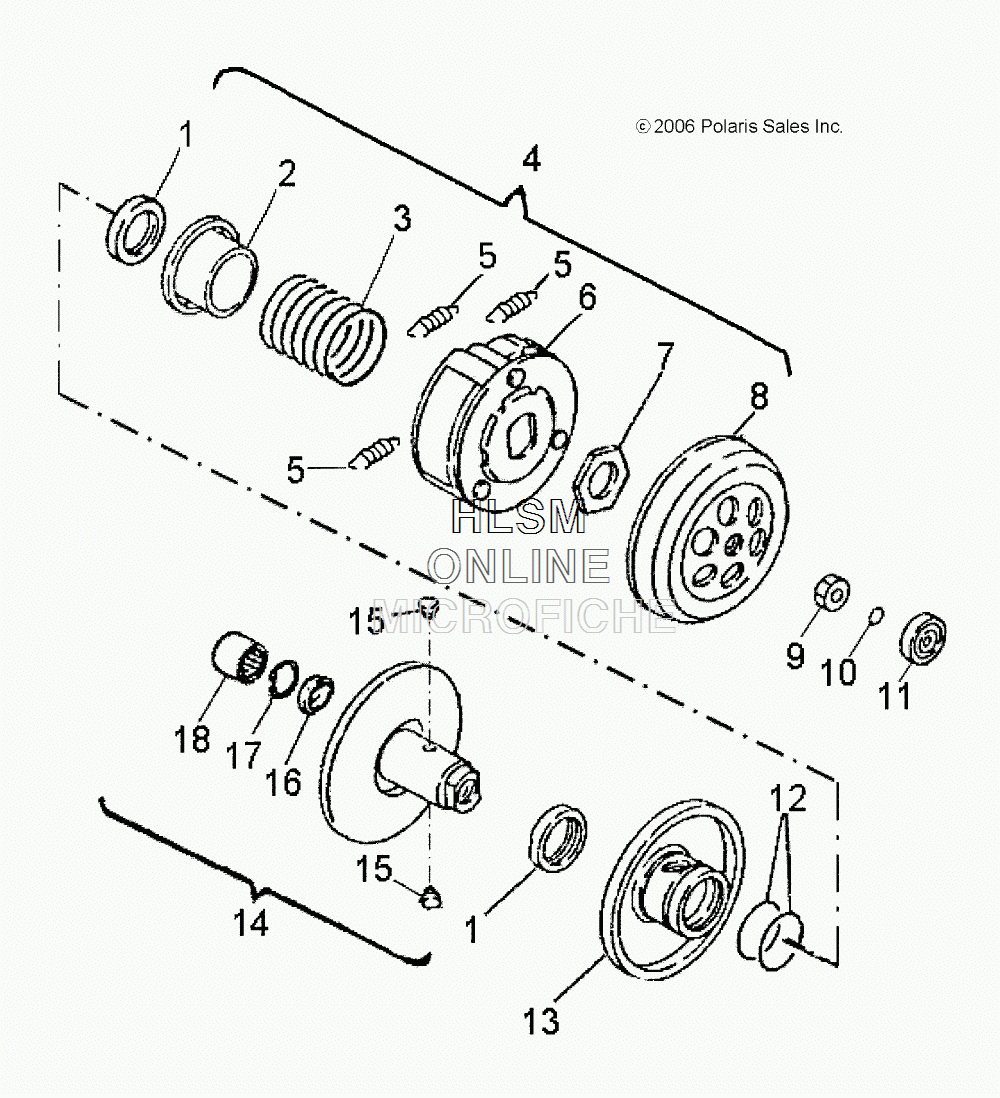

CLUTCH - SECONDARY для Polaris SPORTSMAN 90 - GREEN [A13FA09AA] - 2013 года выпуска
-
№АртикулНазвание
-
10450211 SEAL, OILSEAL, OIL
-
20453589 SEAL, COLLARSEAL, COLLAR
-
30453590 SPRING, CLUTCHSPRING, CLUTCH
-
40453454 ASM., SECONDARY SHEAVE (INCL. 1-8,12-18)ASM., SECONDARY SHEAVE (INCL. 1-8,12-18)
-
50453591 SPRING, WEIGHTSPRING, WEIGHT
-
60453592 CARRIER, CLUTCHCARRIER, CLUTCH
-
70453593 NUTNUT
-
80453594 COVER, CLUTCHCOVER, CLUTCH
-
90450224 NUTNUT
-
100450226 O-RINGO-RING
-
110450225 BEARINGBEARING
-
120453595 O-RINGO-RING
-
130453596 SHEAVE, MOVEABLESHEAVE, MOVEABLE
-
140453597 ASM., SHEAVE, DRIVEN (INCL. 15-18)ASM., SHEAVE, DRIVEN (INCL. 15-18)
-
150453598 PIN, GUIDEPIN, GUIDE
-
160453599 BEARINGBEARING
-
170453600 CIRCLIPCIRCLIP
-
180453601 BEARING, NEEDLEBEARING, NEEDLE
