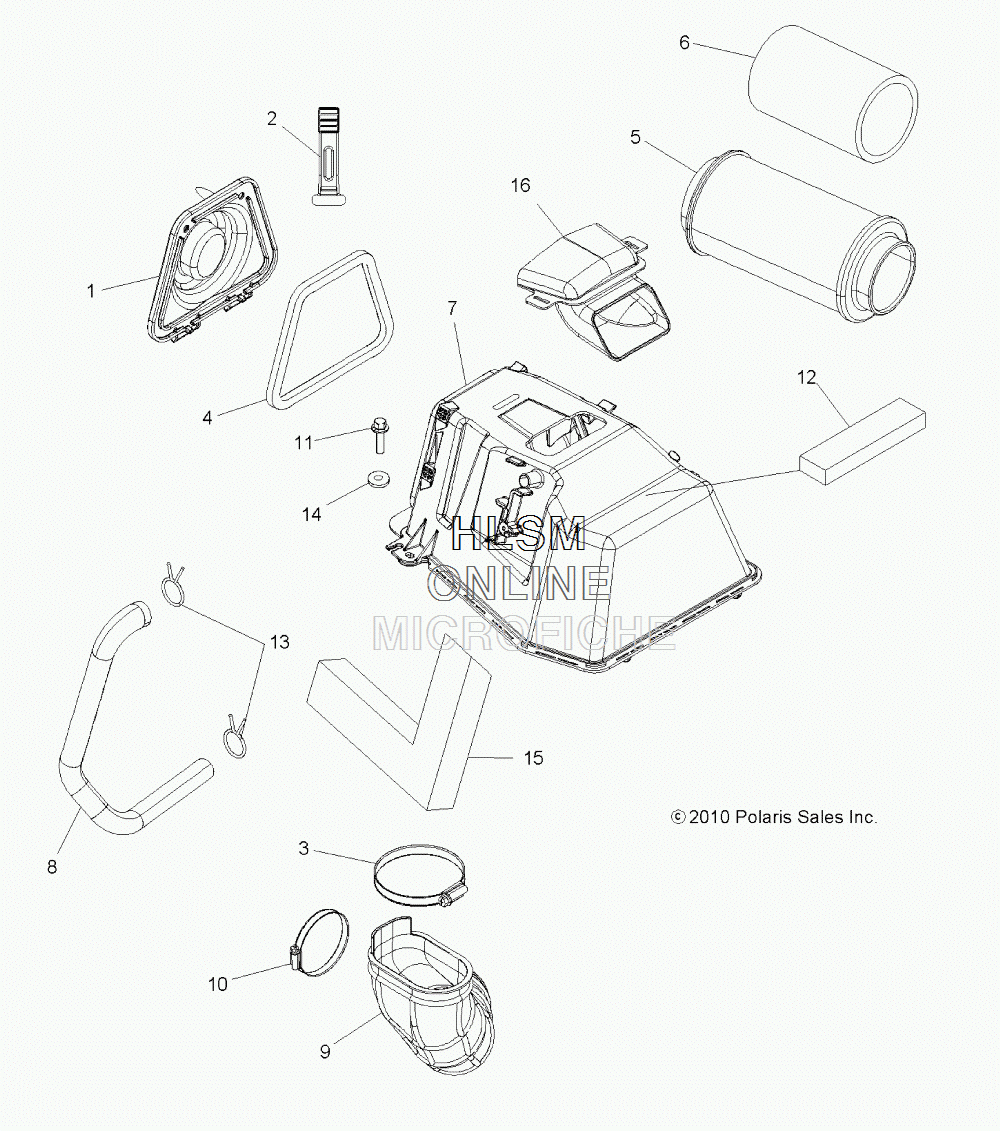

AIR INTAKE SYSTEM для Polaris SPORTSMAN TOURING 550 EPS - (BLUE FIRE) METALLIC [A13DN5EAF] - 2013 года выпуска
-
№АртикулНазвание
-
11204395 ASM., COVER, AIRBOX (INCL. 1,4)ASM., COVER, AIRBOX (INCL. 1,4)
-
15438881 COVER, AIRBOXCOVER, AIRBOX
-
25433150 STRAP, AIRBOX, TOPSTRAP, AIRBOX, TOP
-
37081626 CLAMPCLAMP
-
45813359 SEAL, AIRBOX COVERSEAL, AIRBOX COVER
-
57080595 FILTER, AIR INTAKEFILTER, AIR INTAKE
-
65811633 FILTER, PRECLEANER SLEEVEFILTER, PRECLEANER SLEEVE
-
75439125 BOX, AIR INTAKEBOX, AIR INTAKE
-
85413588 HOSE, BREATHER, SINGLEHOSE, BREATHER, SINGLE
-
95414035 BOOT, THROTTLE BODY, SINGLEBOOT, THROTTLE BODY, SINGLE
-
107080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
117518529 SCREWSCREW
-
125813409 FOAMFOAM
-
137081026 CLAMP, HOSECLAMP, HOSE
-
147555859 WASHER, FLATWASHER, FLAT
-
155813410 FOAMFOAM
-
165413575 HOOD, AIR INTAKEHOOD, AIR INTAKE
