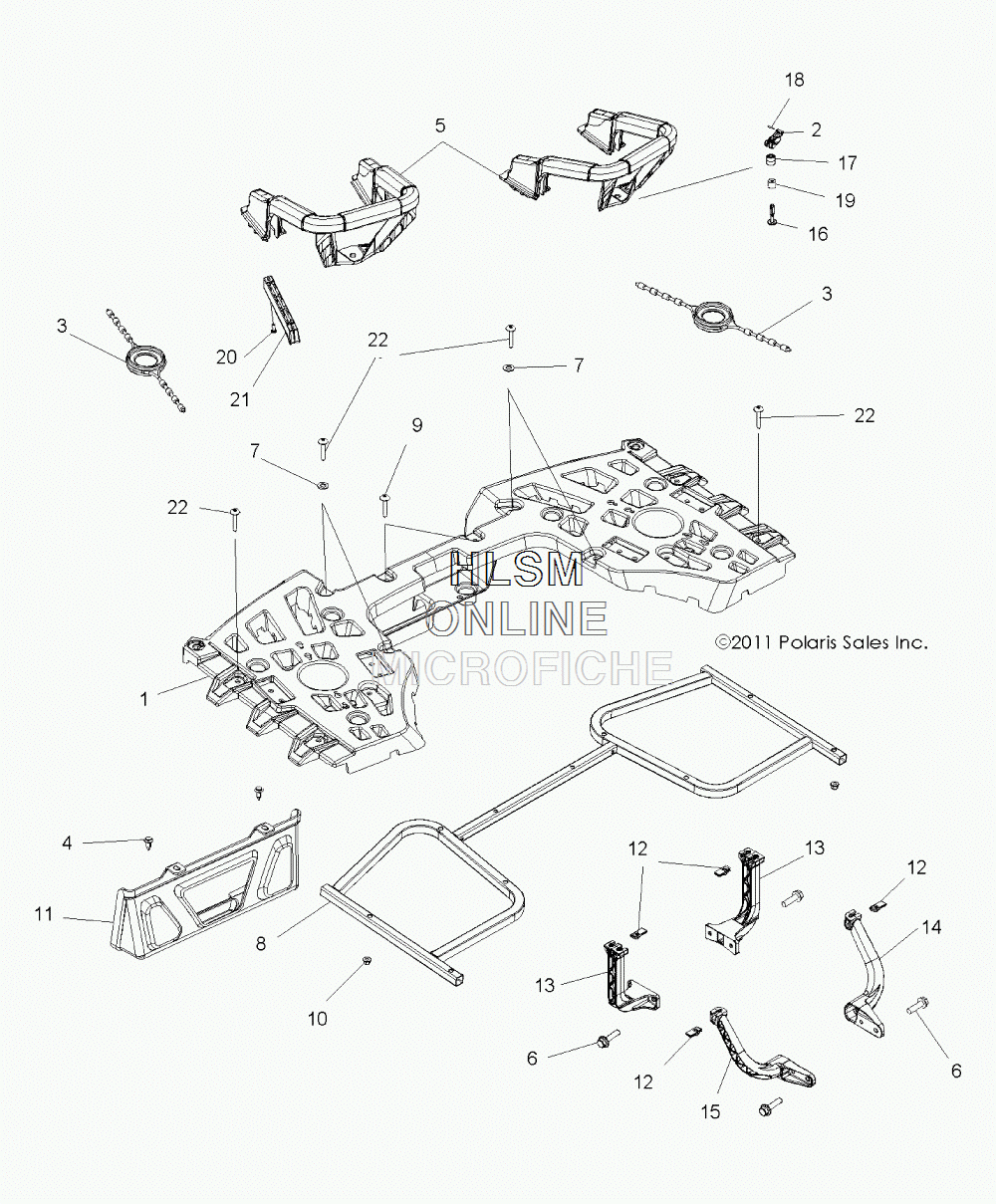

RACK - REAR для Polaris SPORTSMAN TOURING 550 EPS INTL - (SUNSET RED) [A13DN5EFL] - 2013 года выпуска
-
№АртикулНазвание
-
15437928-070 RACK, REAR (BLACK)RACK, REAR (BLACK)
-
25438117 HANDLEHANDLE
-
35413600 STRAP, CUP HOLDER, RUBBERSTRAP, CUP HOLDER, RUBBER
-
47661855 RIVETRIVET
-
52634066 ASM., HANDGRIP, PASSENGER (INCL. 2,16-21, HANDGRIP)ASM., HANDGRIP, PASSENGER (INCL. 2,16-21, HANDGRIP)
-
67518555 BOLTBOLT
-
77558302 WASHERWASHER
-
81017834-329 SUPPORT, REAR RACK (BLACK)SUPPORT, REAR RACK (BLACK)
-
97519090 SCREWSCREW
-
107547274 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
115438112-070 COVER, RACK, REAR (BLACK)COVER, RACK, REAR (BLACK)
-
127547366 U-CLIPU-CLIP
-
135632444 SUPPORT, RACK, REARSUPPORT, RACK, REAR
-
145632451 SUPPORT, RACK, LEFT HANDSUPPORT, RACK, LEFT HAND
-
155632452 SUPPORT, RACK, RIGHT HANDSUPPORT, RACK, RIGHT HAND
-
165438145 SHAFTSHAFT
-
175438504 BUSHINGBUSHING
-
187661982 PIN, DOWELPIN, DOWEL
-
195413887 BUSHING, RUBBERBUSHING, RUBBER
-
207519283 SCREWSCREW
-
215438706 CAP, HANDLECAP, HANDLE
-
227519001 SCREWSCREW
