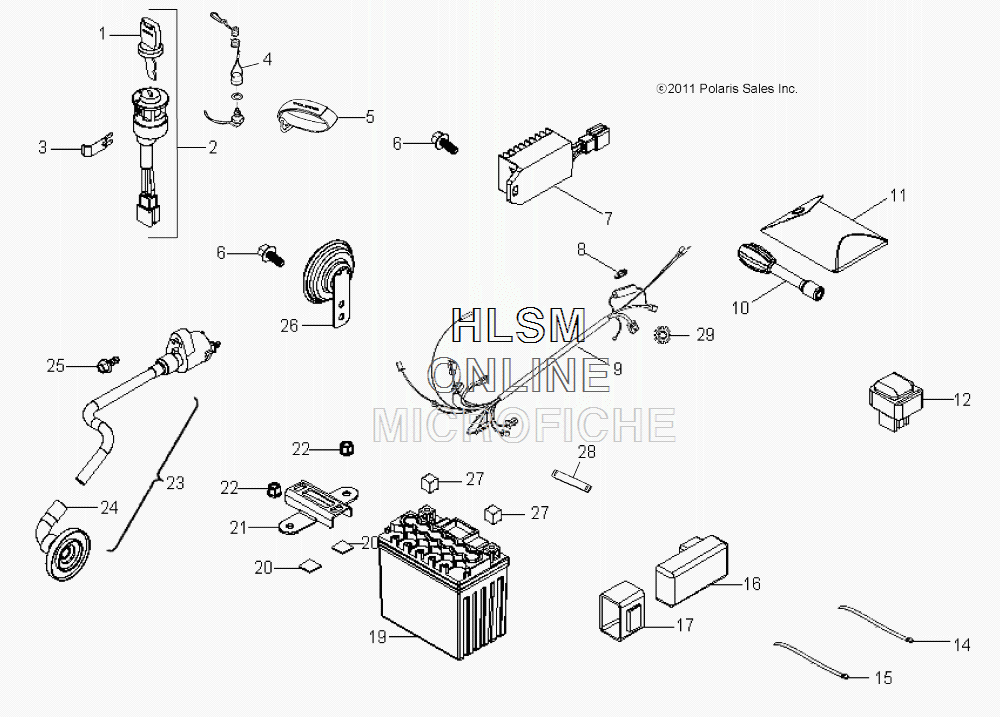

ELECTRICAL COMPONENTS для Polaris OUTLAW 50(2014) [A14KA50AD] - 2014 года выпуска
-
№АртикулНазвание
-
10453372 KEY, BLANK, LEFT HANDKEY, BLANK, LEFT HAND
-
10453143 KEY, BLANK, RIGHT HANDKEY, BLANK, RIGHT HAND
-
20453487 ASM., SWITCH, MAIN (INCL. 1-3)ASM., SWITCH, MAIN (INCL. 1-3)
-
30450549 CLIP, MAIN SWITCHCLIP, MAIN SWITCH
-
40451693 SWITCH, SAFETYSWITCH, SAFETY
-
50453501 WRISTBANDWRISTBAND
-
60450701 BOLTBOLT
-
70454003 RECTIFIER/REGULATORRECTIFIER/REGULATOR
-
80450842 FUSEFUSE
-
90454940 HARNESS, MAINHARNESS, MAIN
-
100450891 GAUGE, TIREGAUGE, TIRE
-
110454703 POUCH, TOOLPOUCH, TOOL
-
120453488 ASM, STARTER RELAYASM, STARTER RELAY
-
140450559 STRAPSTRAP
-
150450721 STRAPSTRAP
-
160454723 ASM., CDI (INCL. 17)ASM., CDI (INCL. 17)
-
170453473 PAD, RUBBERPAD, RUBBER
-
194011181 BATTERYBATTERY
-
200453895 RETAINER, BATTERY, RUBBERRETAINER, BATTERY, RUBBER
-
210453896 BRACKET, BATTERYBRACKET, BATTERY
-
220450150 NUTNUT
-
230453894 ASM., IGNITION COIL (INCL. 24,25)ASM., IGNITION COIL (INCL. 24,25)
-
240453364 CAP, SPARK PLUGCAP, SPARK PLUG
-
250452763 BOLTBOLT
-
260451695 HORNHORN
-
270454701 CAP, TERMINALCAP, TERMINAL
-
280454939 STRAP, BATTERYSTRAP, BATTERY
-
290450890 WASHER, STARWASHER, STAR
