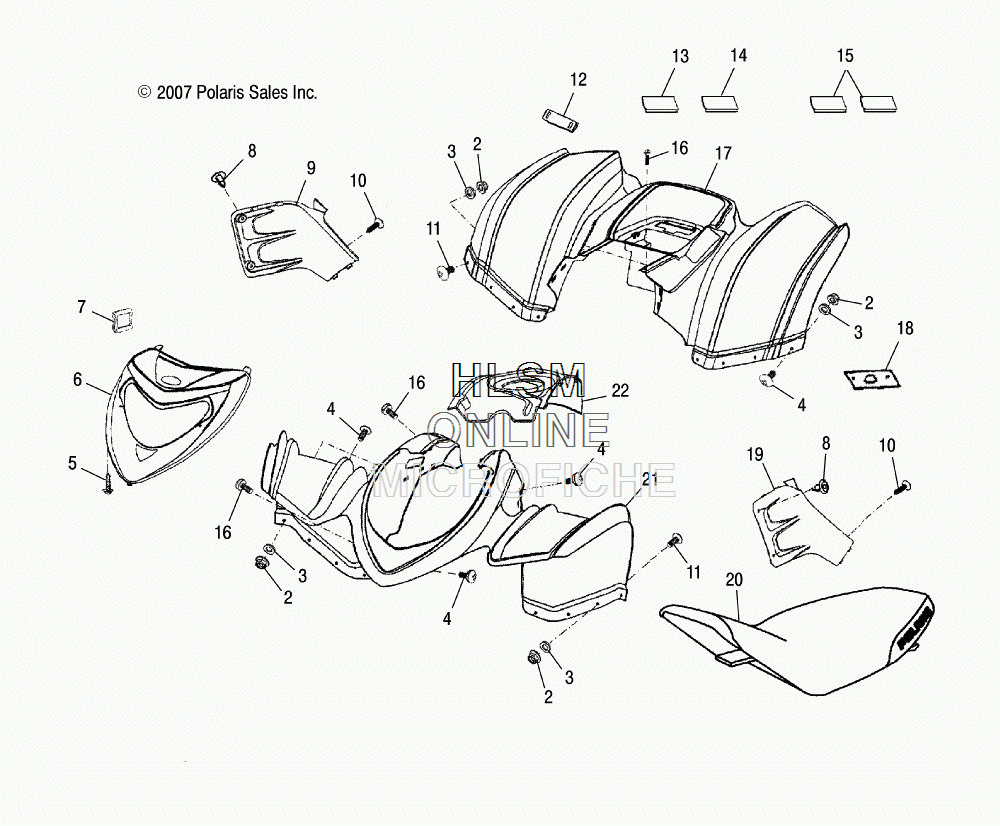

CAB - FENDER - FRONT AND REAR W/ SEAT для Polaris PHOENIX 200 - BOARDWALK BLUE [A14PB20AF] - 2014 года выпуска
-
№АртикулНазвание
-
20450741 NUTNUT
-
30450710 WASHER, FLATWASHER, FLAT
-
40450824 BOLTBOLT
-
50450040 SCREWSCREW
-
60454001-524 ASM., COVER, HEADLIGHT, BOARDWALK BLUEASM., COVER, HEADLIGHT, BOARDWALK BLUE
-
70452662 BOOT, SHIFT, RUBBERBOOT, SHIFT, RUBBER
-
80451076 RIVETRIVET
-
90452653-133 PANEL, SIDE, RIGHT HAND, BRIGHT WHITEPANEL, SIDE, RIGHT HAND, BRIGHT WHITE
-
100451703 SCREWSCREW
-
110450622 BOLTBOLT
-
120452660 STRAP, BATTERY, RUBBERSTRAP, BATTERY, RUBBER
-
130452778 RUBBER, BATTERYRUBBER, BATTERY
-
140450346 RUBBER, BATTERYRUBBER, BATTERY
-
150452779 RUBBER, BATTERYRUBBER, BATTERY
-
160452215 BOLTBOLT
-
170454830-524 ASM., CAB, REAR, BOARDWALK BLUEASM., CAB, REAR, BOARDWALK BLUE
-
180450345 PAD, PROTECTORPAD, PROTECTOR
-
190452651-133 PANEL, SIDE, LEFT HAND, BRIGHT WHITEPANEL, SIDE, LEFT HAND, BRIGHT WHITE
-
200453083 SEATSEAT
-
210454829-133 ASM., CAB, FRONT, BRIGHT WHITEASM., CAB, FRONT, BRIGHT WHITE
-
220453800-524 COVER, FUEL TANK, BOARDWALK BLUECOVER, FUEL TANK, BOARDWALK BLUE
Все узлы модели:
- AIR INTAKE SYSTEM
- AXLE - REAR
- BRAKE - FRONT
- BRAKE - REAR
- BUMPER - FRONT
- • CAB - FENDER - FRONT AND REAR W/ SEAT
- CAMSHAFT W/ VALVE ASSY.
- CARBURETOR
- CLUTCH - PRIMARY
- CLUTCH - SECONDARY
- CRANKCASE
- CRANKCASE COVER - LEFT
- CRANKCASE COVER - RIGHT
- CRANKSHAFT W/ PISTON
- CYLINDER HEAD
- DECALS
- DRIVE - REAR
- ELECTRICAL COMPONENTS
- EXHAUST SYSTEM
- FRAME
- FRONT WHEELS
- FUEL TANK
- HANDLEBAR
- HEADLIGHT / BRAKELIGHT
- MANUAL - OWNERS
- REAR WHEELS
- STARTING MOTOR /W GENERATOR
- STEERING POST W/TIE RODS
- SUSPENSION - A-ARM W/FOOTREST
- SUSPENSION - SHOCKS
- SUSPENSION - SWING ARM W/ REAR SHOCK ASSY
- TRANSMISSION - DRIVE CHAIN
