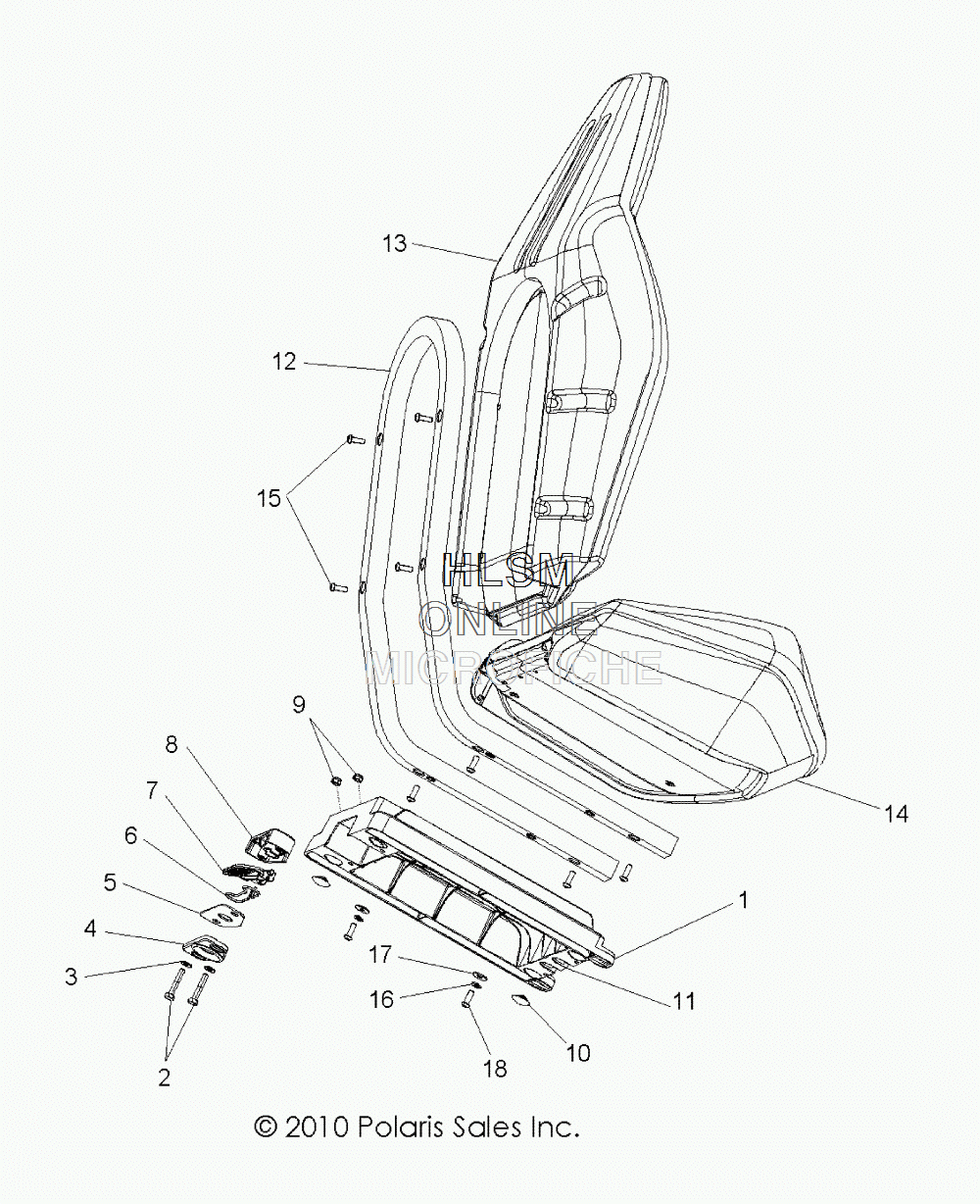

SEAT для Polaris RZR 4 800 EPS STEALTH BLACK LE [Z14XE7EAL] - 2014 года выпуска
-
№АртикулНазвание
-
12633532 ASM., SEAT BASE (INCL. 2-11)ASM., SEAT BASE (INCL. 2-11)
-
27512126 BOLTBOLT
-
37558301 WASHER, FLATWASHER, FLAT
-
45437120 CAP, SEAT LATCHCAP, SEAT LATCH
-
55251162 PLATE, SEAT LATCH (BUILT 9/01/13 AND BEFORE)PLATE, SEAT LATCH (BUILT 9/01/13 AND BEFORE)
-
55258647 PLATE, SEAT LATCH (BUILT 9/02/13 AND AFTER)PLATE, SEAT LATCH (BUILT 9/02/13 AND AFTER)
-
67081466 SPRING, SEAT LATCHSPRING, SEAT LATCH
-
75437121 LEVER, SEAT LATCHLEVER, SEAT LATCH
-
85437119 BODY, SEAT LATCHBODY, SEAT LATCH
-
97542122 NUT, NYLOKNUT, NYLOK
-
105413441 GROMMET, SEAT BASEGROMMET, SEAT BASE
-
115436597 BASE, SEATBASE, SEAT
-
122634133 ASM., TUBE, SEAT HOOP, BLACKASM., TUBE, SEAT HOOP, BLACK
-
132685474 ASM., SEAT BACK, BLACK/GRAPHITE METALLICASM., SEAT BACK, BLACK/GRAPHITE METALLIC
-
142685952 ASM., SEAT BOTTOM, BLACK/GRAPHITE METALLICASM., SEAT BOTTOM, BLACK/GRAPHITE METALLIC
-
157515177 SCREWSCREW
-
167552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
177555859 WASHER, FLATWASHER, FLAT
-
187519296 SCREWSCREW
