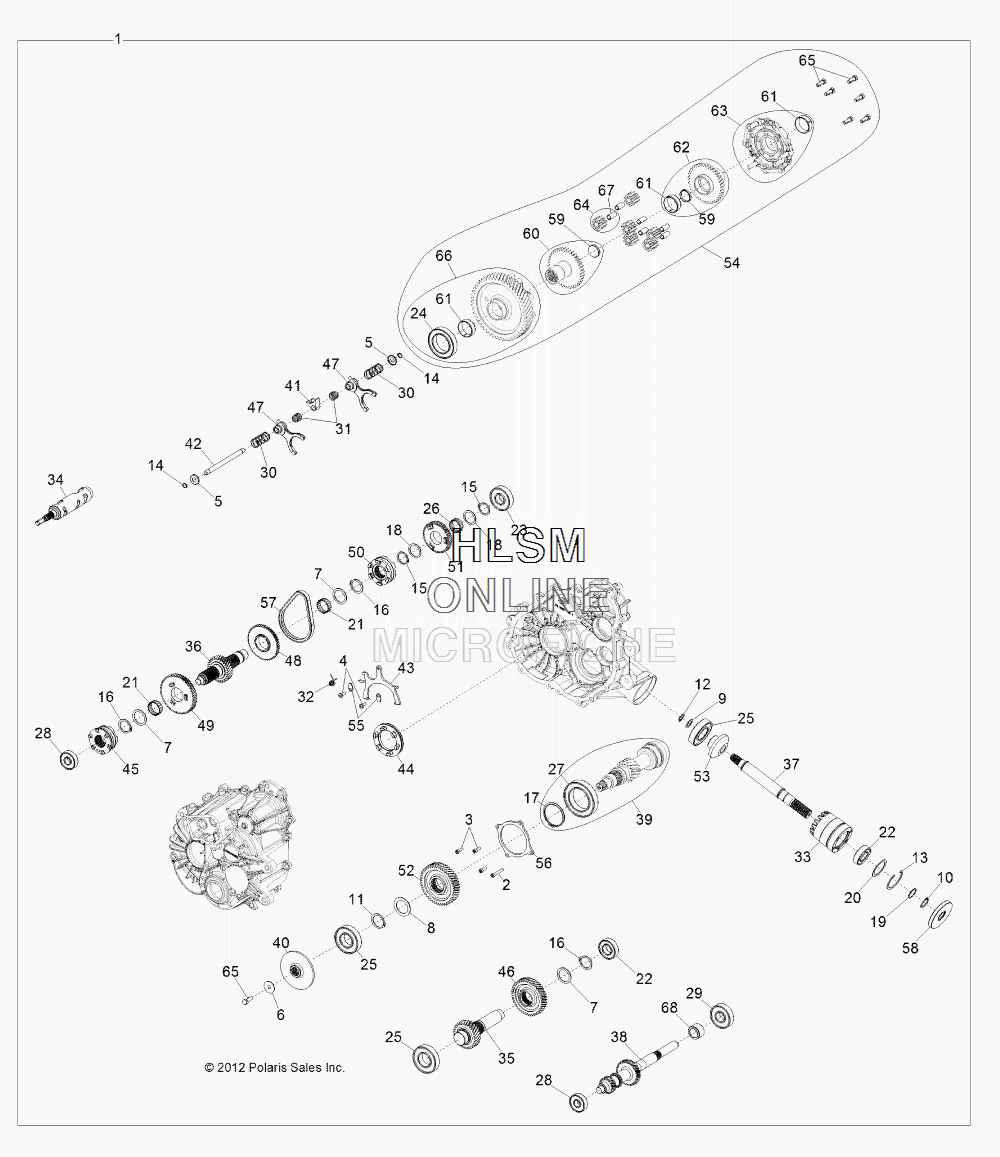

MAIN GEARCASE INTERNAL (2X4) для Polaris RZR 900 INTERNATIONAL STEALTH BLACK [Z14JT9EFX] - 2014 года выпуска
-
№АртикулНазвание
-
11333063 ASM., GEARCASE (INCL. ALL)ASM., GEARCASE (INCL. ALL)
-
23235208 SCREW, SOCKET HEADSCREW, SOCKET HEAD
-
33235332 SCREW, SOCKET HEADSCREW, SOCKET HEAD
-
43234309 SCREWSCREW
-
53234091 WASHER, CUPWASHER, CUP
-
63234952 WASHER, FENDERWASHER, FENDER
-
73235211 WASHERWASHER
-
83235212 WASHERWASHER
-
93235213 WASHERWASHER
-
103233106 RING, SNAPRING, SNAP
-
113233364 RING, RETAININGRING, RETAINING
-
123234318 RING, RETAINING, EXTERNALRING, RETAINING, EXTERNAL
-
133234269 RING, RETAINING, BASIC, INTERNALRING, RETAINING, BASIC, INTERNAL
-
143234090 RING, RETAININGRING, RETAINING
-
153234205 RING, RETAININGRING, RETAINING
-
163235214 RING, RETAININGRING, RETAINING
-
173235216 RING, RETAININGRING, RETAINING
-
183233378 WASHER, THRUSTWASHER, THRUST
-
193234272 SHIMSHIM
-
203234273 SHIMSHIM
-
213233014 BEARING, NEEDLEBEARING, NEEDLE
-
223233019 BEARINGBEARING
-
233233020 BEARINGBEARING
-
243233268 BEARING, BALLBEARING, BALL
-
253234065 BEARING, BALLBEARING, BALL
-
263233384 BEARING, NEEDLEBEARING, NEEDLE
-
273235218 BEARING, BALLBEARING, BALL
-
283234652 BEARING, BALLBEARING, BALL
-
293235328 BEARING, BALLBEARING, BALL
-
303234078 SPRING, COMPRESSIONSPRING, COMPRESSION
-
313234089 SPRING, COMPRESSIONSPRING, COMPRESSION
-
323234276 SPRING, TORSION, RETURNSPRING, TORSION, RETURN
-
333234278 TUBETUBE
-
343235463 DRUM, SHIFTDRUM, SHIFT
-
353235223 SHAFT, IDLER, 29TSHAFT, IDLER, 29T
-
363235224 SHAFT, REVERSE, 29TSHAFT, REVERSE, 29T
-
373235225 SHAFT, OUTPUT, FRONTSHAFT, OUTPUT, FRONT
-
383235463 SHAFT, INPUTSHAFT, INPUT
-
393235371 SUBASM., PINION, 11TSUBASM., PINION, 11T
-
403235372 DISC, BRAKEDISC, BRAKE
-
413234073 COLLAR, SHIFTCOLLAR, SHIFT
-
423235542 RAIL, SHIFT SHAFTRAIL, SHIFT SHAFT
-
433235455 FORK, PIVOT SHIFTFORK, PIVOT SHIFT
-
443234928 DOG, ENGAGEMENTDOG, ENGAGEMENT
-
453235457 DOG, SHIFT, PARKDOG, SHIFT, PARK
-
463235229 GEAR, 44T, STAGE 2GEAR, 44T, STAGE 2
-
473235454 FORK, SHIFTFORK, SHIFT
-
483235231 SPROCKET, 48T, 6 FACESPROCKET, 48T, 6 FACE
-
493235232 GEAR, 67TGEAR, 67T
-
503235233 DOG, ENGAGEMENT, 6-FACEDOG, ENGAGEMENT, 6-FACE
-
513235234 GEAR, 53TGEAR, 53T
-
523235236 GEAR, 46T, STAGE 3GEAR, 46T, STAGE 3
-
533235237 GEAR, 13T, FRONT OUTPUTGEAR, 13T, FRONT OUTPUT
-
543235373 DIFF, LOCKINGDIFF, LOCKING
-
553234934 RETAINER, FORKRETAINER, FORK
-
563235241 COVER, BEARING, CENTER DRIVECOVER, BEARING, CENTER DRIVE
-
573234737 CHAIN, SILENTCHAIN, SILENT
-
583235658 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
-
593234249 PLUG, EXPANSIONPLUG, EXPANSION
-
603235374 SUBASM., 39T GEAR SIDE (INCL. PLUG)SUBASM., 39T GEAR SIDE (INCL. PLUG)
-
613234241 BEARINGBEARING
-
623235375 SUBASM., 39T GEAR SIDE (INCL. PLUG, BUSHING)SUBASM., 39T GEAR SIDE (INCL. PLUG, BUSHING)
-
633235376 SUBASM., DIFF COVER (INCL. PLUG, BUSHING)SUBASM., DIFF COVER (INCL. PLUG, BUSHING)
-
643234469 SUBASM, PLANET GEAR (INCL. BUSHING)SUBASM, PLANET GEAR (INCL. BUSHING)
-
653235096 SCREWSCREW
-
663235378 SUBASM, GEAR 53T (INCL. PIN, BUSHING, BEARING)SUBASM, GEAR 53T (INCL. PIN, BUSHING, BEARING)
-
673234239 BEARINGBEARING
-
683235465 SLEEVE, COLLAR, INPUT SHAFTSLEEVE, COLLAR, INPUT SHAFT
