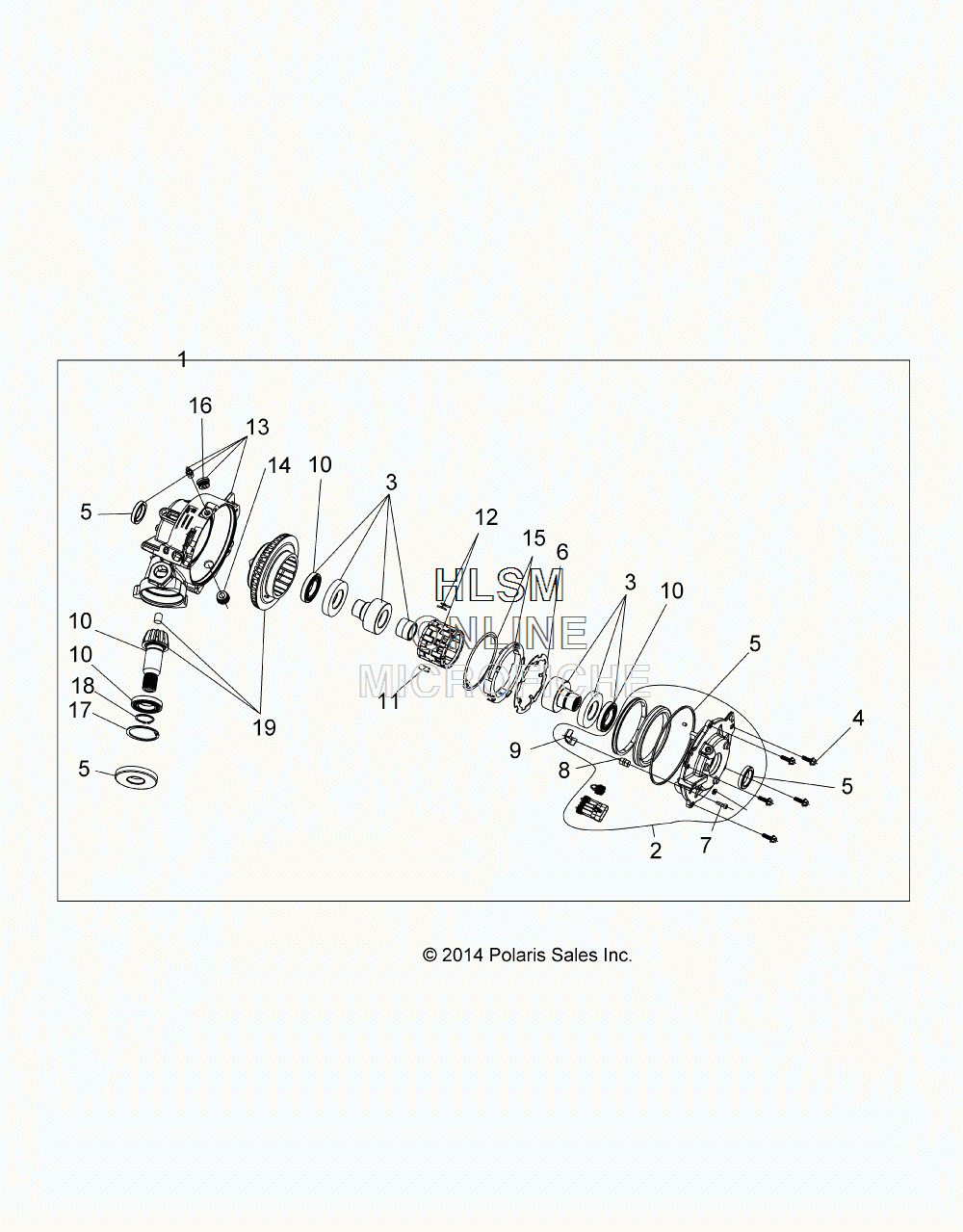

GEARCASE - FRONT для Polaris SPORTSMAN 570 EFI EPS - (BRIGHT WHITE) [A14MH5EAJ] - 2014 года выпуска

№

Артикул

Название
1

1333067 ASM., GEARCASE, AWD (INCL. ALL)

ASM., GEARCASE, AWD (INCL. ALL)

260 ₽
2

3235162 ASM., COVER, OUTPUT

ASM., COVER, OUTPUT

91 520 ₽
3

3234936 KIT, OUTPUT HUB (INCL. HUB ASM. FEMALE, HUB ASM. MALE)

KIT, OUTPUT HUB (INCL. HUB ASM. FEMALE, HUB ASM. MALE)

85 280 ₽
4

3235469 KIT, FASTENER (INCL. SCREWS)

KIT, FASTENER (INCL. SCREWS)

2 190 ₽
5

3235330 KIT, SEAL REPAIR (INCL. ALL SEALS)

KIT, SEAL REPAIR (INCL. ALL SEALS)

15 600 ₽
6

3234407 PLATE, ARMATURE

PLATE, ARMATURE

20 800 ₽
7

3234408 SET, SCREW

SET, SCREW

3 540 ₽
8

3234594 ASM., THRUST BUTTON

ASM., THRUST BUTTON

2 500 ₽
9

3235183 PLATE, THRUST

PLATE, THRUST

9 470 ₽
10

3234390 BEARING

BEARING

8 320 ₽
11

3234393 KIT, ROLLER (INCL. COMPLETE SET OF ROLLERS)

KIT, ROLLER (INCL. COMPLETE SET OF ROLLERS)

420 ₽
12

3234907 ASM., ROLL CAGE (INCL. CAGE AND COMPLETE SET OF CLIPS)

ASM., ROLL CAGE (INCL. CAGE AND COMPLETE SET OF CLIPS)

62 400 ₽
12

3235262 ASM., ROLL CAGE, BILLET ALUM (HIGH PERFORMANCE ACCESSORY) (INCL. CLIP SET)

ASM., ROLL CAGE, BILLET ALUM (HIGH PERFORMANCE ACCESSORY) (INCL. CLIP SET)

104 000 ₽
13

3235471 ASM., GEARCASE (INCL. GEARCASE, BUSHING, GARLOCK BEARING, FILL PLUG, VENT TUBE, OIL SEAL)

ASM., GEARCASE (INCL. GEARCASE, BUSHING, GARLOCK BEARING, FILL PLUG, VENT TUBE, OIL SEAL)

81 850 ₽
14

3234412 ASM., DRAIN PLUG, MAGNETIC

ASM., DRAIN PLUG, MAGNETIC

5 830 ₽
15

3234908 KIT, SPRING (INCL. SPRING RETAINER, TORSION SPRING)

KIT, SPRING (INCL. SPRING RETAINER, TORSION SPRING)

17 680 ₽
16

3234414 PLUG, OIL FILL

PLUG, OIL FILL

4 990 ₽
17

3234416 RING, RETAINING

RING, RETAINING

1 670 ₽
18

3235177 RING, RETAINING

RING, RETAINING

1 670 ₽
19

3235472 ASM., PINION GEAR (INCL. RING GEAR SUB ASM., PINION GEAR, DOWEL PIN) (INCL. 10,17,18)

ASM., PINION GEAR (INCL. RING GEAR SUB ASM., PINION GEAR, DOWEL PIN) (INCL. 10,17,18)

126 880 ₽
