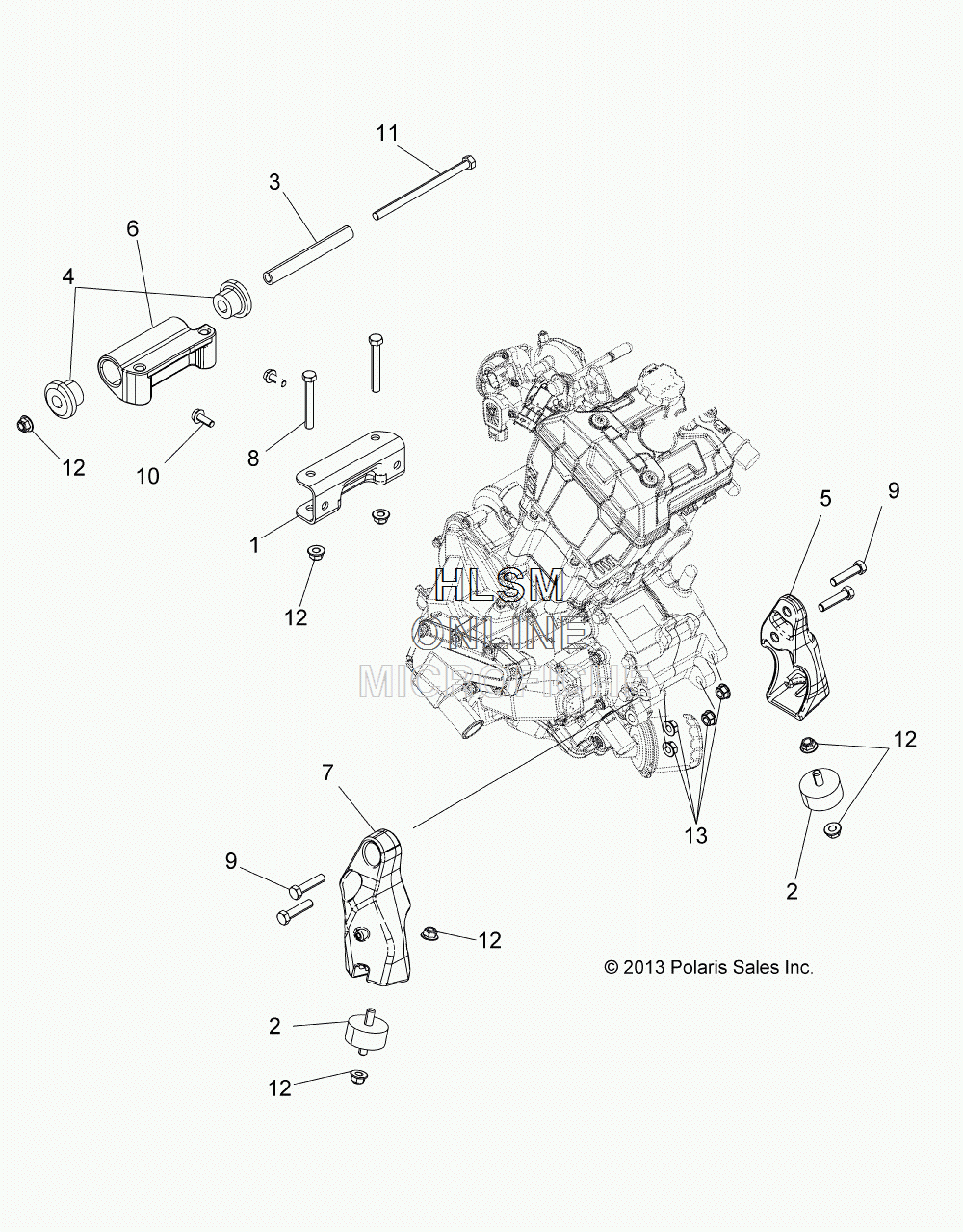

ENGINE - MOUNTING для Polaris SPORTSMAN 570 EFI EPS - POLARIS PURSUIT CAMO [A14MH5EAC] - 2014 года выпуска
-
№АртикулНазвание
-
15256926 MOUNT, ENGINE, REARMOUNT, ENGINE, REAR
-
23022071 ISOLATORISOLATOR
-
35337887 TUBE, ISOLATOR, REARTUBE, ISOLATOR, REAR
-
45415059 ISOLATOR, RUBBERISOLATOR, RUBBER
-
55632967 MOUNT, ENGINE, FRONT, LEFT HAND, CASTMOUNT, ENGINE, FRONT, LEFT HAND, CAST
-
65139247 MOUNT, ENGINE, REAR (BUILT 11/10/13 AND BEFORE)MOUNT, ENGINE, REAR (BUILT 11/10/13 AND BEFORE)
-
65633144 MOUNT, ENGINE, REAR, CAST (BUILT 11/11/13 AND AFTER)MOUNT, ENGINE, REAR, CAST (BUILT 11/11/13 AND AFTER)
-
75632995 MOUNT, ENGINE, FRONT, RIGHT HAND, CASTMOUNT, ENGINE, FRONT, RIGHT HAND, CAST
-
87515417 SCREWSCREW
-
97515528 SCREWSCREW
-
107518364 BOLTBOLT
-
117518481 SCREWSCREW
-
127547263 NUT, FLANGE, LOCKNUT, FLANGE, LOCK
-
137547108 NUT, FLANGE, LOCKNUT, FLANGE, LOCK
