BATTERY для Polaris SPORTSMAN 570 EFI EPS - SAGE BRUSH GREEN METALLIC [A14MH5EAA] - 2014 года выпуска
-

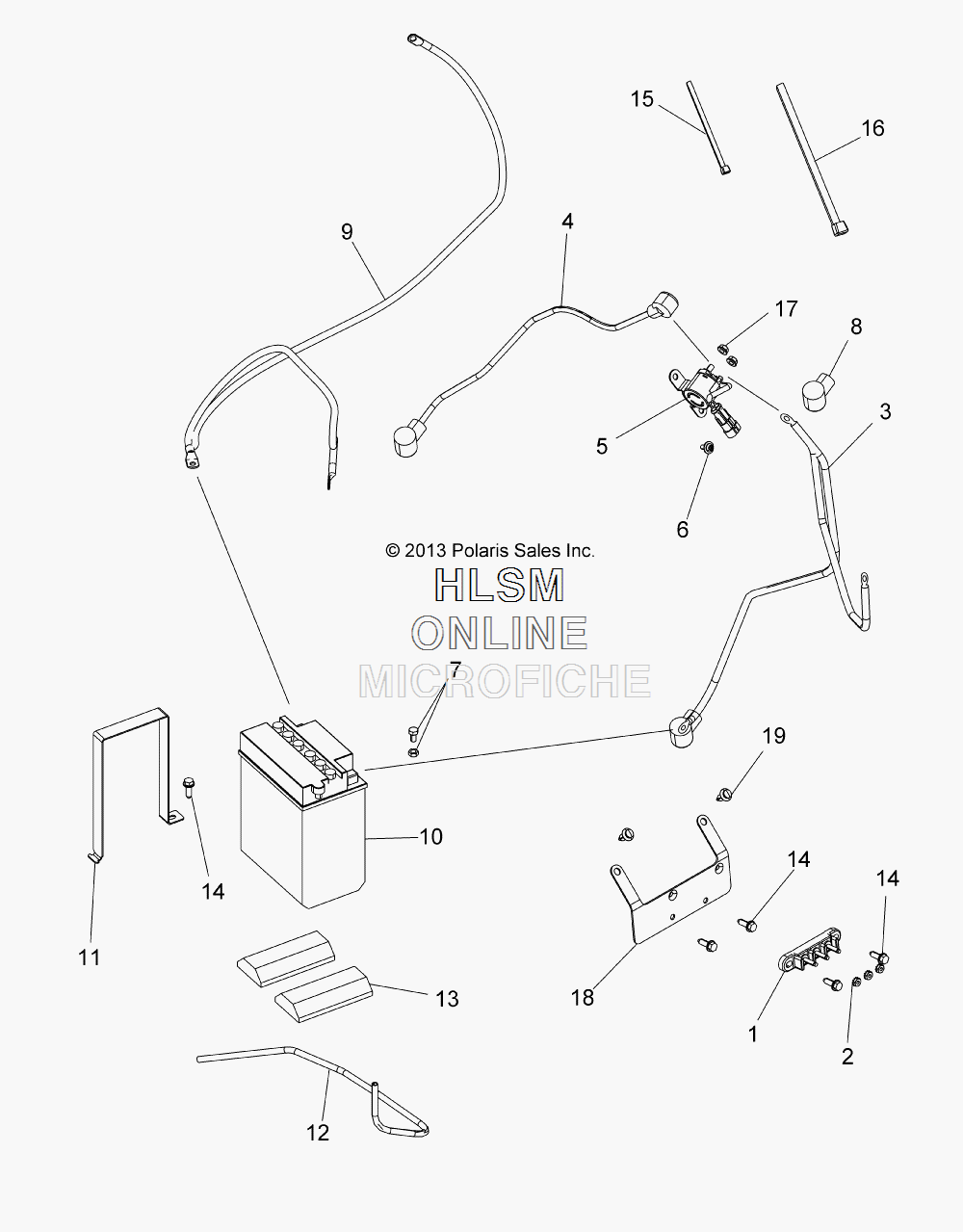

№АртикулНазвание
-
14011892 BLOCK, TERMINAL, 3 POSTBLOCK, TERMINAL, 3 POST
-
27547341 NUTNUT
-
34014535 CABLE, BATTERY, 6 GAUGECABLE, BATTERY, 6 GAUGE
-
44014424-705 CABLE, BATTERY, 6 GAUGE, FLATCABLE, BATTERY, 6 GAUGE, FLAT
-
54012001 SOLENOID, STARTERSOLENOID, STARTER
-
67512084 SCREWSCREW
-
72202213 KIT, BATTERY BOLTKIT, BATTERY BOLT
-
84011723 BOOT, BATTERY, REDBOOT, BATTERY, RED
-
94014546 CABLE, BATTERY, 6 GAUGECABLE, BATTERY, 6 GAUGE
-
104140006 BATTERY, 14 AMPBATTERY, 14 AMP
-
115257766 BRACKET, BATTERY STRAPBRACKET, BATTERY STRAP
-
125432077 TUBE, BATTERY VENTTUBE, BATTERY VENT
-
135813293 PAD, REAR, TOOLBOXPAD, REAR, TOOLBOX
-
147512232 SCREWSCREW
-
157080138 CABLE TIECABLE TIE
-
167080492 CABLE TIECABLE TIE
-
177546703 NUT, NYLOKNUT, NYLOK
-
185257803 BRACKET, FUSE BLOCKBRACKET, FUSE BLOCK
-
197661855 RIVETRIVET
