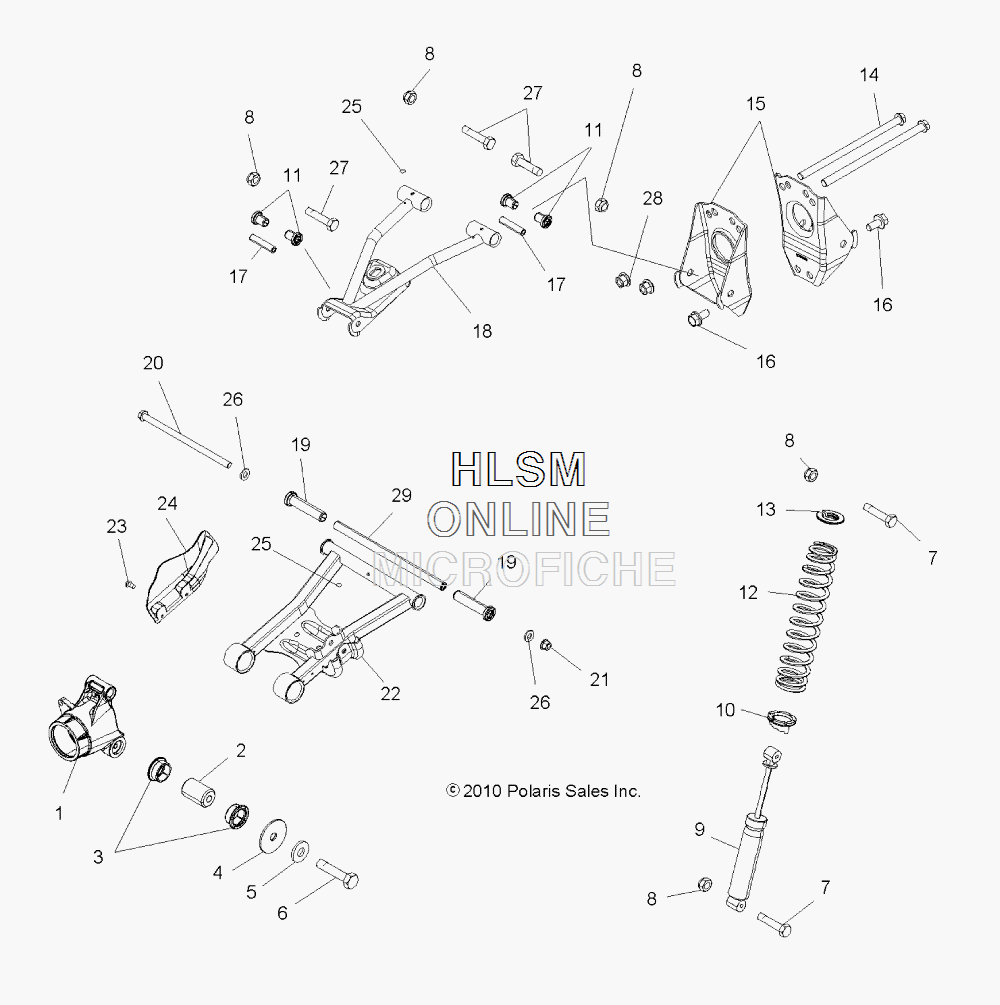

SUSPENSION - REAR для Polaris SPORTSMAN 570 EFI TOURING - SAGE BRUSH GREEN METALLIC [A14DH57AA] - 2014 года выпуска
-
№АртикулНазвание
-
15135563 CARRIER, WHEEL BEARINGCARRIER, WHEEL BEARING
-
25632291 BUSHING, BEARING CARRIERBUSHING, BEARING CARRIER
-
35438902 BUSHING, CONTROL, LOWER, BLACKBUSHING, CONTROL, LOWER, BLACK
-
47555740 WASHER, FLATWASHER, FLAT
-
57552614 WASHER, LOCKWASHER, LOCK
-
67517873 BOLTBOLT
-
77515415 SCREWSCREW
-
87542439 NUT, NYLOKNUT, NYLOK
-
97043100 SHOCK, REARSHOCK, REAR
-
105253768 CAM, ADJUSTING, SPRINGCAM, ADJUSTING, SPRING
-
115438895 BUSHING, A-ARM, SHORT, BLACKBUSHING, A-ARM, SHORT, BLACK
-
127043697-067 SPRING, BLACKSPRING, BLACK
-
135251753 RETAINER, SPRINGRETAINER, SPRING
-
147518365 SCREWSCREW
-
155254267-329 BRACKET, CONTROL ARM, PIVOT, BLACKBRACKET, CONTROL ARM, PIVOT, BLACK
-
167517632 SCREWSCREW
-
175020826 SHAFT, A-ARM, SHORTSHAFT, A-ARM, SHORT
-
181017747-067 ARM, CONTROL, UPPER, BLACK, LEFT HANDARM, CONTROL, UPPER, BLACK, LEFT HAND
-
181017748-067 ARM, CONTROL, UPPER, BLACK, RIGHT HANDARM, CONTROL, UPPER, BLACK, RIGHT HAND
-
195436973 BUSHING, A-ARM, LONGBUSHING, A-ARM, LONG
-
207519065 SCREWSCREW
-
217547344 NUTNUT
-
221015888-067 CONTROL, LOWER, BLACK, LEFT HANDCONTROL, LOWER, BLACK, LEFT HAND
-
221015889-067 CONTROL, LOWER, BLACK, RIGHT HANDCONTROL, LOWER, BLACK, RIGHT HAND
-
237512084 SCREWSCREW
-
245435008-070 SHIELD, CV REAR, BLACK, LEFT HANDSHIELD, CV REAR, BLACK, LEFT HAND
-
245435009-070 SHIELD, CV REAR, BLACK, RIGHT HANDSHIELD, CV REAR, BLACK, RIGHT HAND
-
257080433 FITTING, LUBRICATIONFITTING, LUBRICATION
-
267556153 WASHERWASHER
-
277515472 BOLTBOLT
-
287547180 NUT, FLANGENUT, FLANGE
-
295137562 TUBE, PIVOTTUBE, PIVOT
