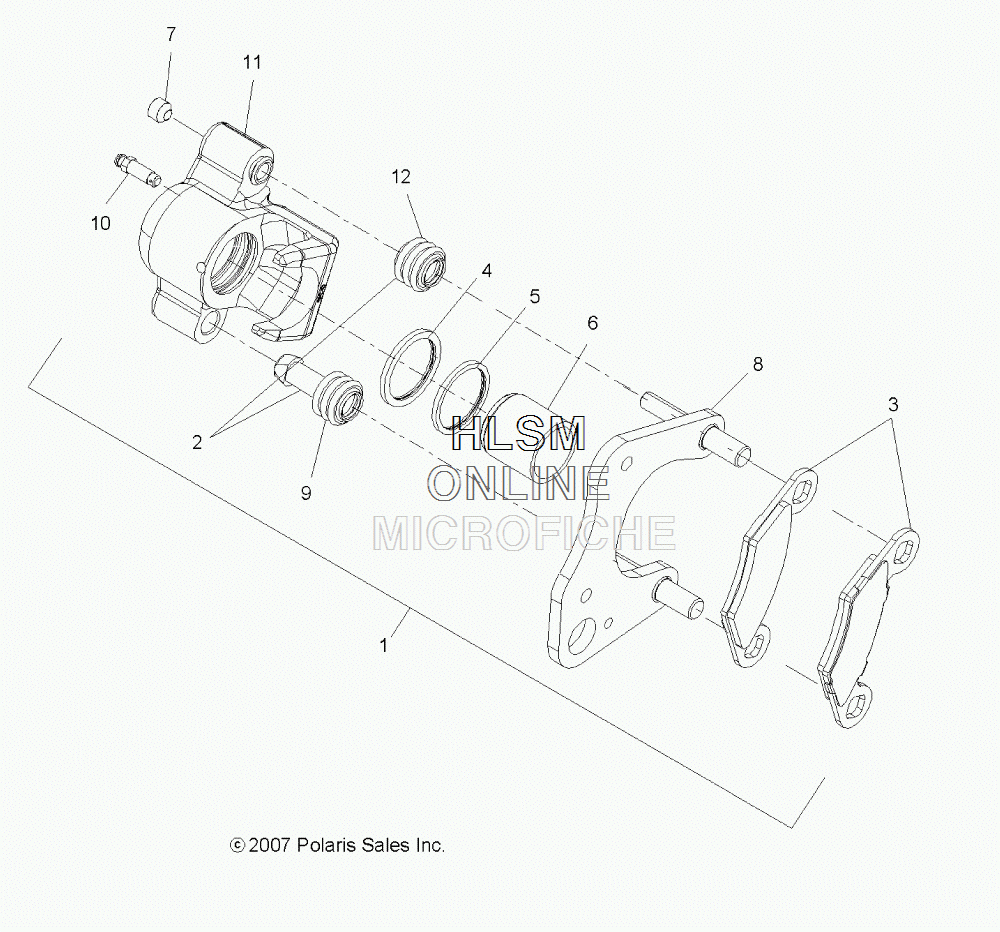

BRAKE - FRONT CALIPER для Polaris SPORTSMAN 570 EFI TOURING INTL - (BRIGHT WHITE) [A14DH57FJ] - 2014 года выпуска
-
№АртикулНазвание
-
11911537 ASM., CALIPER, FRONT, LEFT HAND (INCL. 1-12)ASM., CALIPER, FRONT, LEFT HAND (INCL. 1-12)
-
11911538 ASM., CALIPER, FRONT, RIGHT HAND (INCL. 1-12)ASM., CALIPER, FRONT, RIGHT HAND (INCL. 1-12)
-
21930642 KIT, FRONT BRAKE BOOT (INCL. 9,12)KIT, FRONT BRAKE BOOT (INCL. 9,12)
-
32202412 KIT, ASM., FRONT BRAKE PAD (INCL. 2 SETS, 4 PADS)KIT, ASM., FRONT BRAKE PAD (INCL. 2 SETS, 4 PADS)
-
45411596 SEAL, INNERSEAL, INNER
-
55411597 SEAL, OUTERSEAL, OUTER
-
65132405 PISTON, CALIPERPISTON, CALIPER
-
77518863 SCREW, SOCKET SETSCREW, SOCKET SET
-
81910513 MOUNT, CALIPER, FRONTMOUNT, CALIPER, FRONT
-
95412505 BOOT, PIN BUSHINGBOOT, PIN BUSHING
-
107081343 SCREW, BLEEDERSCREW, BLEEDER
-
125412506 BOOT, PIN SEALBOOT, PIN SEAL
