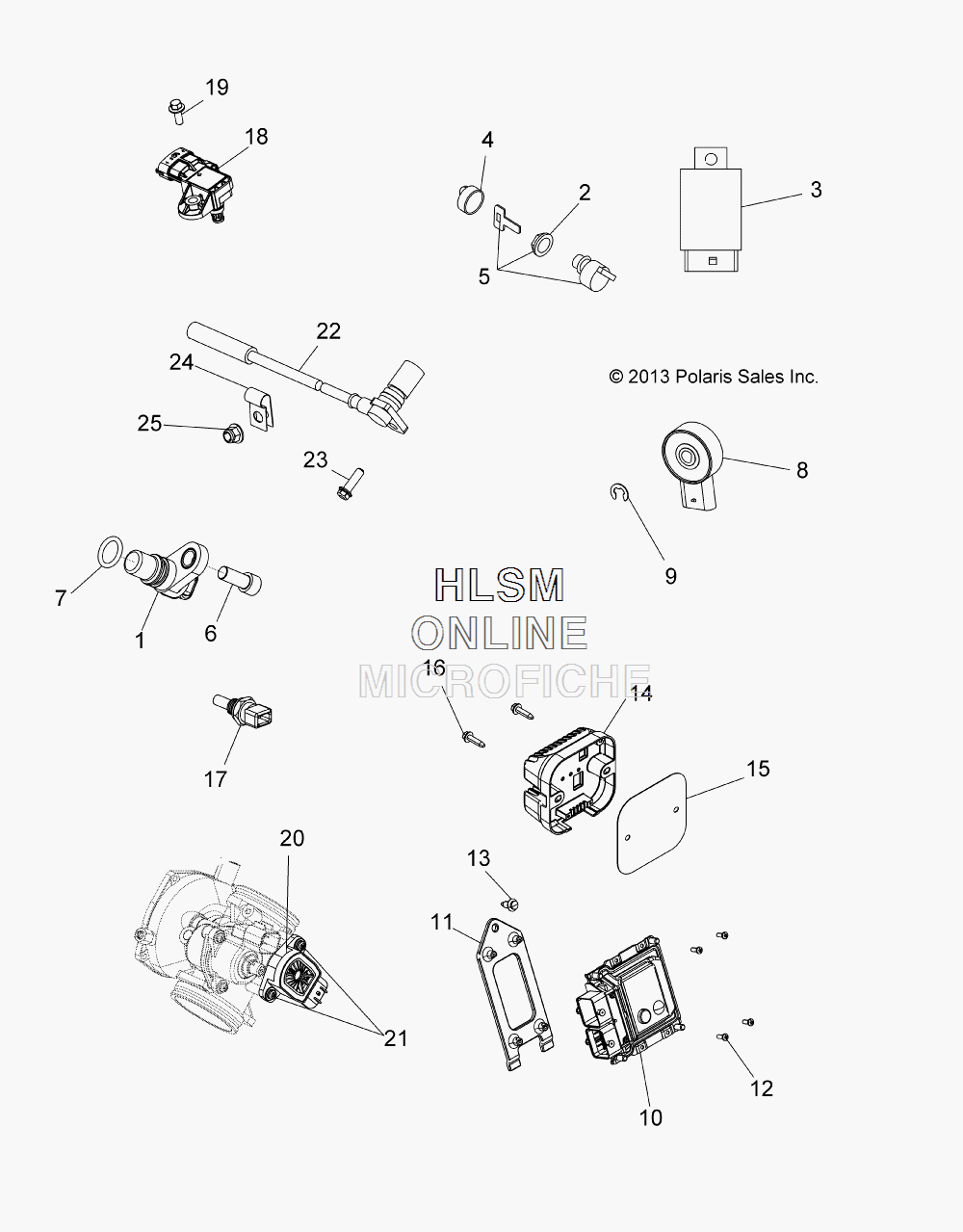

ELECTRICAL - SWITCHES- SENSORS AND ECU для Polaris SPORTSMAN 570 EFI UTE HD EPS (2014) [A14MX5ETH] - 2014 года выпуска`
-
№АртикулНазвание
-
14013908 SENSOR, SPEEDSENSOR, SPEED
-
25433733 NUT, IGNITIONNUT, IGNITION
-
34013043 MODULE, FLASHER, LEDMODULE, FLASHER, LED
-
37512084 SCREWSCREW
-
45433534 COVER, KEYCOVER, KEY
-
54012166 SWITCH, KEY, 4 POSITION (INCL. 5,7,KEY)SWITCH, KEY, 4 POSITION (INCL. 5,7,KEY)
-
54010278 BLANK, KEY, SERIES 2000, 2100, 6700, 6800BLANK, KEY, SERIES 2000, 2100, 6700, 6800
-
54010321 BLANK, KEY, SERIES 2200, 2300, 2700, 2800BLANK, KEY, SERIES 2200, 2300, 2700, 2800
-
63234247 SCREWSCREW
-
73234302 O-RINGO-RING
-
87661999 SWITCH, ROTARY, 2 PIN RESISTIVE (GEAR POSITION)SWITCH, ROTARY, 2 PIN RESISTIVE (GEAR POSITION)
-
93233834 RING, RETAININGRING, RETAINING
-
104012838 ECU, BASEECU, BASE
-
115438708-070 MOUNT, ECM, REAR, BLACKMOUNT, ECM, REAR, BLACK
-
127519091 SCREWSCREW
-
137661855 RIVETRIVET
-
144014405 REGULATOR, 3 PHASE, 50 AMPREGULATOR, 3 PHASE, 50 AMP
-
155253294 COVER, VOLTAGE REGULATORCOVER, VOLTAGE REGULATOR
-
167515179 SCREWSCREW
-
174010644 SENSOR, THERMISTERSENSOR, THERMISTER
-
182411528 SENSOR, T-MAPSENSOR, T-MAP
-
197516603 BOLTBOLT
-
203131705 SENSOR, THROTTLE POSITIONSENSOR, THROTTLE POSITION
-
217517628 SCREWSCREW
-
222411719 SENSOR, CRANK POSITIONSENSOR, CRANK POSITION
-
237518576 SCREWSCREW
-
247080367 CLAMP, CABLECLAMP, CABLE
-
257542343 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
