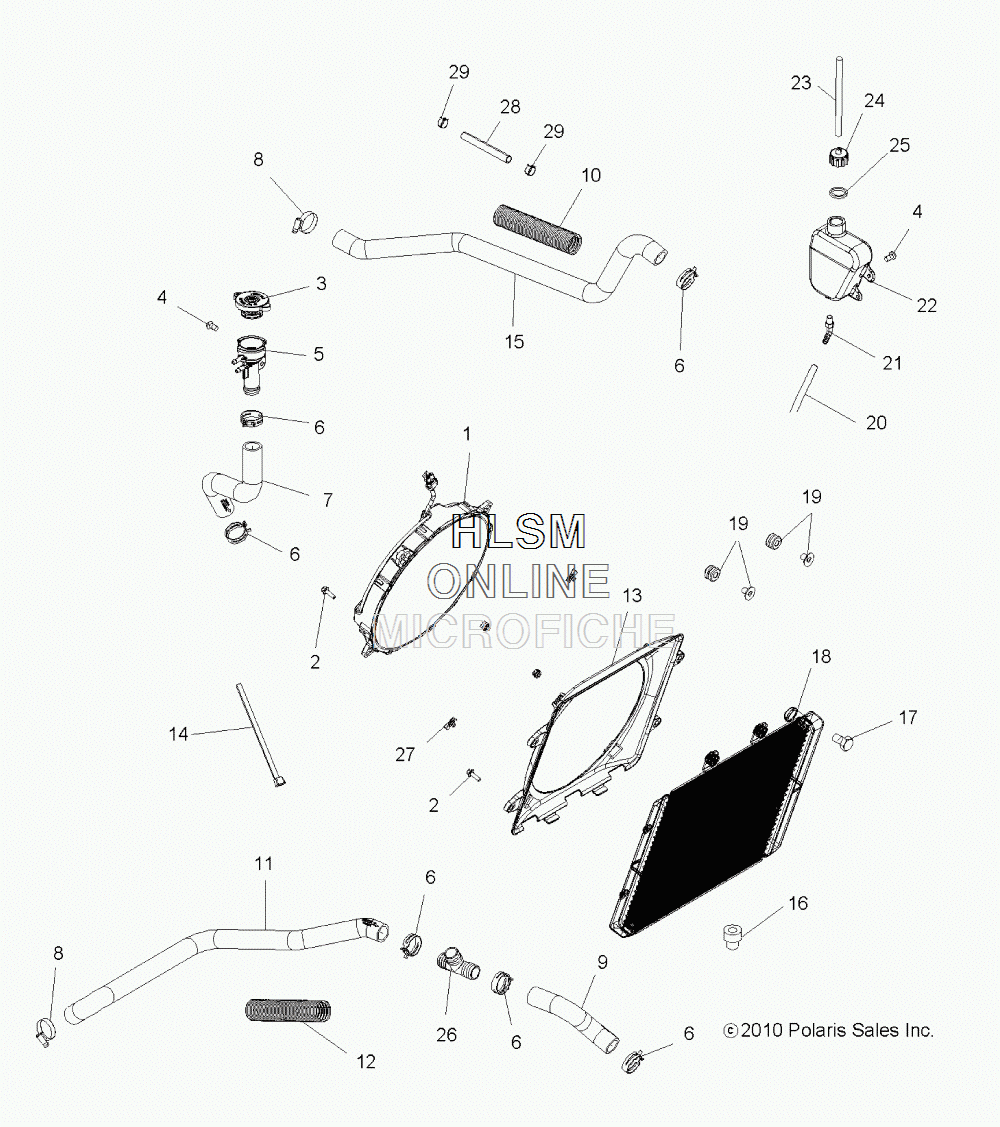

COOLING SYSTEM для Polaris SPORTSMAN 800 EFI - SAGE BRUSH GREEN METALLIC [A14MH76AA] - 2014 года выпуска
-
№АртикулНазвание
-
12410413 ASM., FANASM., FAN
-
27516822 SCREWSCREW
-
31240508 CAP, PRESSURECAP, PRESSURE
-
47512084 SCREWSCREW
-
55438110 FILLER, REMOTE COOLANTFILLER, REMOTE COOLANT
-
67080843 CLAMP, SPRINGBACKCLAMP, SPRINGBACK
-
75414229 HOSE, FILLER NECKHOSE, FILLER NECK
-
87081192 CLAMP, HOSECLAMP, HOSE
-
95414222 HOSE, RADIATOR, LOWERHOSE, RADIATOR, LOWER
-
105521794-17 CONDUIT, FLEXCONDUIT, FLEX
-
115414220 HOSE, ENGINE, LOWERHOSE, ENGINE, LOWER
-
125521794-17 CONDUIT, FLEXCONDUIT, FLEX
-
135437845 SHROUD, FANSHROUD, FAN
-
147080492 CABLE TIECABLE TIE
-
155414219 HOSE, RADIATOR, UPPERHOSE, RADIATOR, UPPER
-
165410584 BUSHING, MOUNT, LOWER RADIATORBUSHING, MOUNT, LOWER RADIATOR
-
177515179 SCREWSCREW
-
181240521 ASM., RADIATOR (INCL. 19)ASM., RADIATOR (INCL. 19)
-
195413155 ASM., GROMMET AND INSERTASM., GROMMET AND INSERT
-
208450003-1525 LINE, FUELLINE, FUEL
-
217052065 FITTING, 90 DEGREEFITTING, 90 DEGREE
-
225436936 TANK, SURGETANK, SURGE
-
238360009-600 LINE, FUELLINE, FUEL
-
245437635 CAP, OVERFLOW BOTTLE W/FITTINGCAP, OVERFLOW BOTTLE W/FITTING
-
255810279 GASKETGASKET
-
267052373 CONNECTOR, TEECONNECTOR, TEE
-
277547366 U-CLIPU-CLIP
-
288450120-600 HOSEHOSE
-
297080003 CLAMP, HOSECLAMP, HOSE
