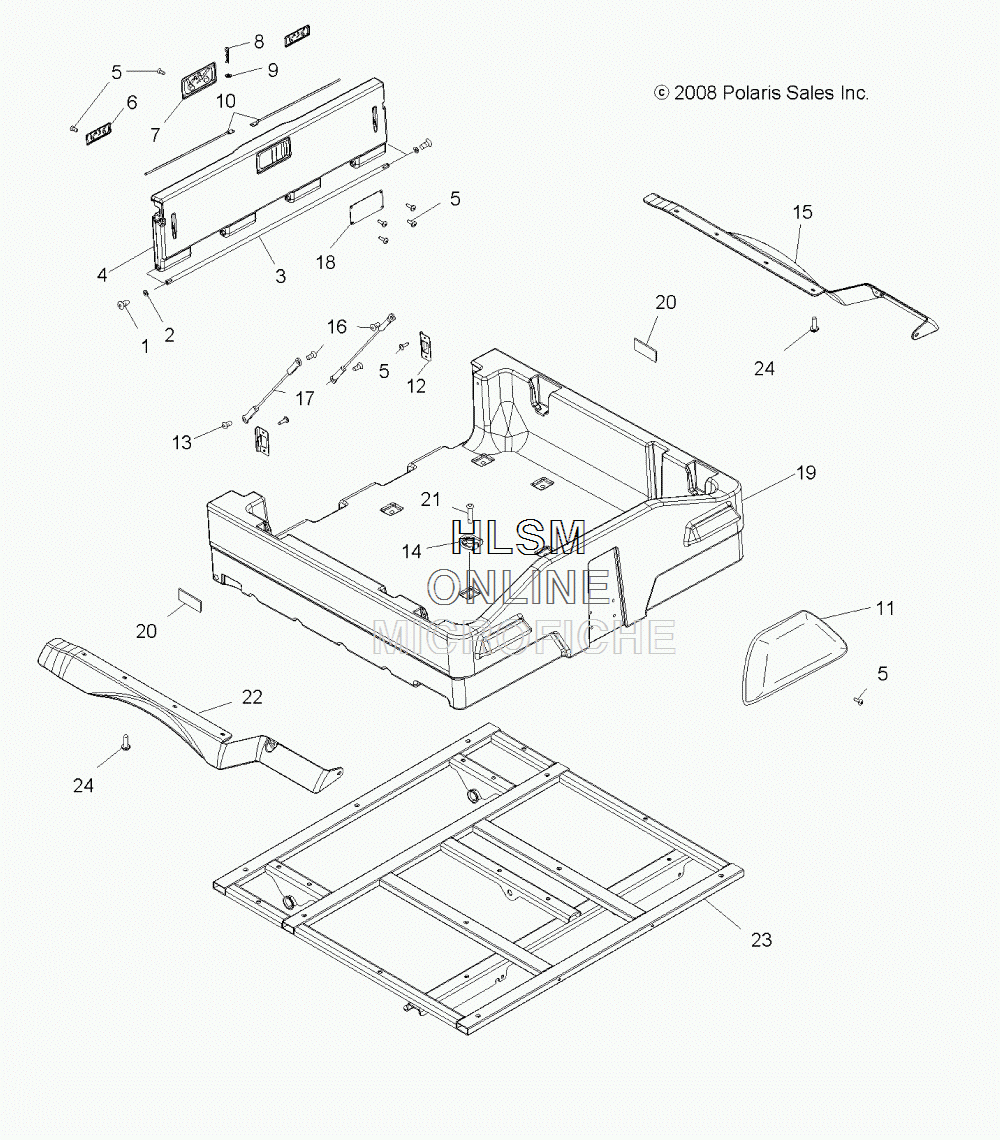

DUMP BOX ASSY. для Polaris SPORTSMAN 800 EFI 6X6 FOREST - SAGE BRUSH GREEN METALLIC [A14CF76FA] - 2014 года выпуска
-
№АртикулНазвание
-
17515177 SCREWSCREW
-
27558221 WASHERWASHER
-
35132358 ROD, HINGEROD, HINGE
-
45433388 TAILGATETAILGATE
-
57517561 SCREWSCREW
-
65433656 LATCHLATCH
-
75433655 LATCH, PADDLELATCH, PADDLE
-
87661644 PIN, HITCHPIN, HITCH
-
97556143 WASHER, RUBBERWASHER, RUBBER
-
105132373 SHAFT, LATCHSHAFT, LATCH
-
112684915-070 ASM., BACKREST, BLACK (INCL. COVER)ASM., BACKREST, BLACK (INCL. COVER)
-
112681664-070 COVERING, BACKREST, BLACKCOVERING, BACKREST, BLACK
-
125243304 BRACKET, BOX LATCHBRACKET, BOX LATCH
-
137517938 SCREWSCREW
-
147081101 RING, TIE DOWNRING, TIE DOWN
-
155437873-070 GUARD, MUD, BOX, BLACK, LEFT HANDGUARD, MUD, BOX, BLACK, LEFT HAND
-
167517742 SCREWSCREW
-
177080881 CABLE, TAILGATECABLE, TAILGATE
-
185244068-067 COVER, TAILGATE, BLACKCOVER, TAILGATE, BLACK
-
195439200 BOX, MOLDED, BLACK (INCL. WARNING DECAL)BOX, MOLDED, BLACK (INCL. WARNING DECAL)
-
207079925 DECAL, REFLECTOR, REDDECAL, REFLECTOR, RED
-
217517686 SCREWSCREW
-
225437874-070 GUARD, MUD, BOX, BLACK, RIGHT HANDGUARD, MUD, BOX, BLACK, RIGHT HAND
-
231016881-067 SUPPORT, BOX, BLACKSUPPORT, BOX, BLACK
-
247519047 SCREWSCREW
