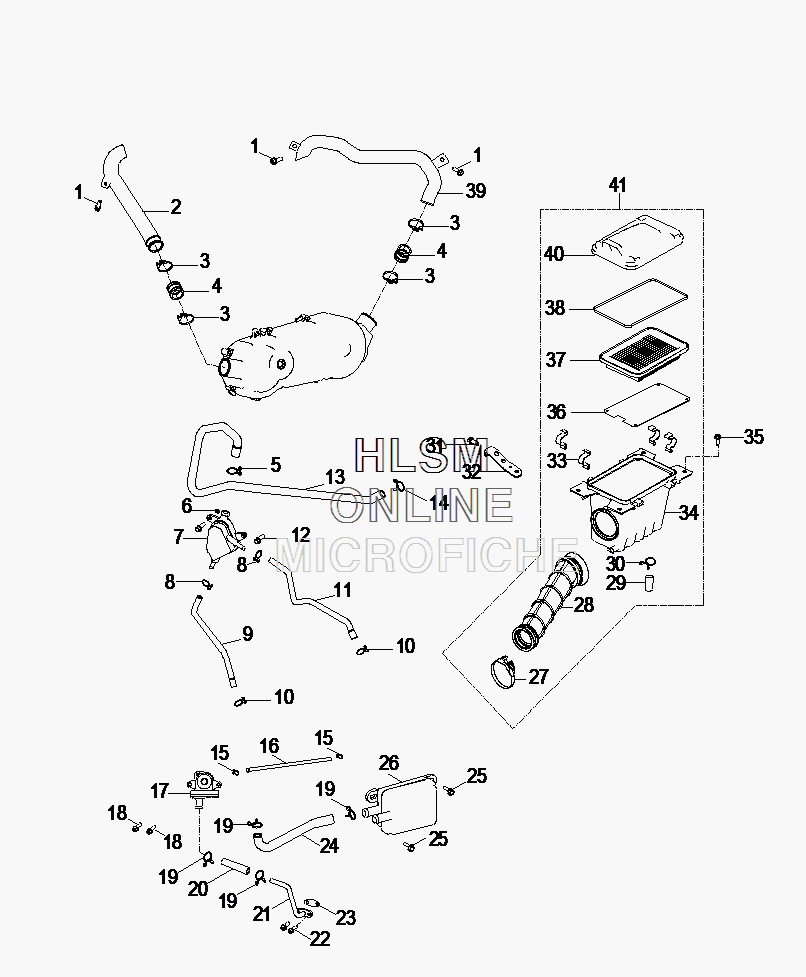

AIR INTAKE SYSTEM для Polaris SPORTSMAN 90 - GREEN [A14FA09AA] - 2014 года выпуска
-
№АртикулНазвание
-
10450824 BOLT W/WASHERBOLT W/WASHER
-
20453331 DUCT, INLETDUCT, INLET
-
30453655 CLAMPCLAMP
-
40453656 BOOT, DUCTBOOT, DUCT
-
50453187 CLIPCLIP
-
60450880 NUTNUT
-
70453184 SEPARATOR, OILSEPARATOR, OIL
-
80450865 CLIPCLIP
-
90454006 TUBE, OILTUBE, OIL
-
100453516 CLIPCLIP
-
110454007 TUBE, OILTUBE, OIL
-
120452215 BOLTBOLT
-
130454008 TUBE, BREATHER, VENTILATEDTUBE, BREATHER, VENTILATED
-
140452795 CLIPCLIP
-
150453944 CLAMPCLAMP
-
160454927 HOSEHOSE
-
170454398 VALVE, DUAL INTAKEVALVE, DUAL INTAKE
-
180453517 BOLTBOLT
-
190452795 CLIPCLIP
-
200454928 HOSEHOSE
-
210454929 TUBE, DUAL INTAKETUBE, DUAL INTAKE
-
220452413 BOLTBOLT
-
230452808 GASKET, AIR INJECTIONGASKET, AIR INJECTION
-
240454930 HOSEHOSE
-
250454785 BOLTBOLT
-
260454375 ASM., FILTER, DUAL INTAKEASM., FILTER, DUAL INTAKE
-
270453658 CLAMPCLAMP
-
280453659 BOOTBOOT
-
290453725 HOSE, DRAINHOSE, DRAIN
-
300453661 CLIPCLIP
-
310453518 BOLTBOLT
-
320453666 BRACKET, MOUNT, AIR BOXBRACKET, MOUNT, AIR BOX
-
330453660 CLIPCLIP
-
340453662 BOX, AIR CLEANERBOX, AIR CLEANER
-
350452215 BOLTBOLT
-
360453663 FILTER, AIR CLEANERFILTER, AIR CLEANER
-
370454620 FOAM, INTAKE, AIR CLEANERFOAM, INTAKE, AIR CLEANER
-
380453484 GASKETGASKET
-
390453332 DUCT, OUTLETDUCT, OUTLET
-
400453665 COVER, AIR CLEANERCOVER, AIR CLEANER
-
410454624 ASM., AIR BOXASM., AIR BOX
