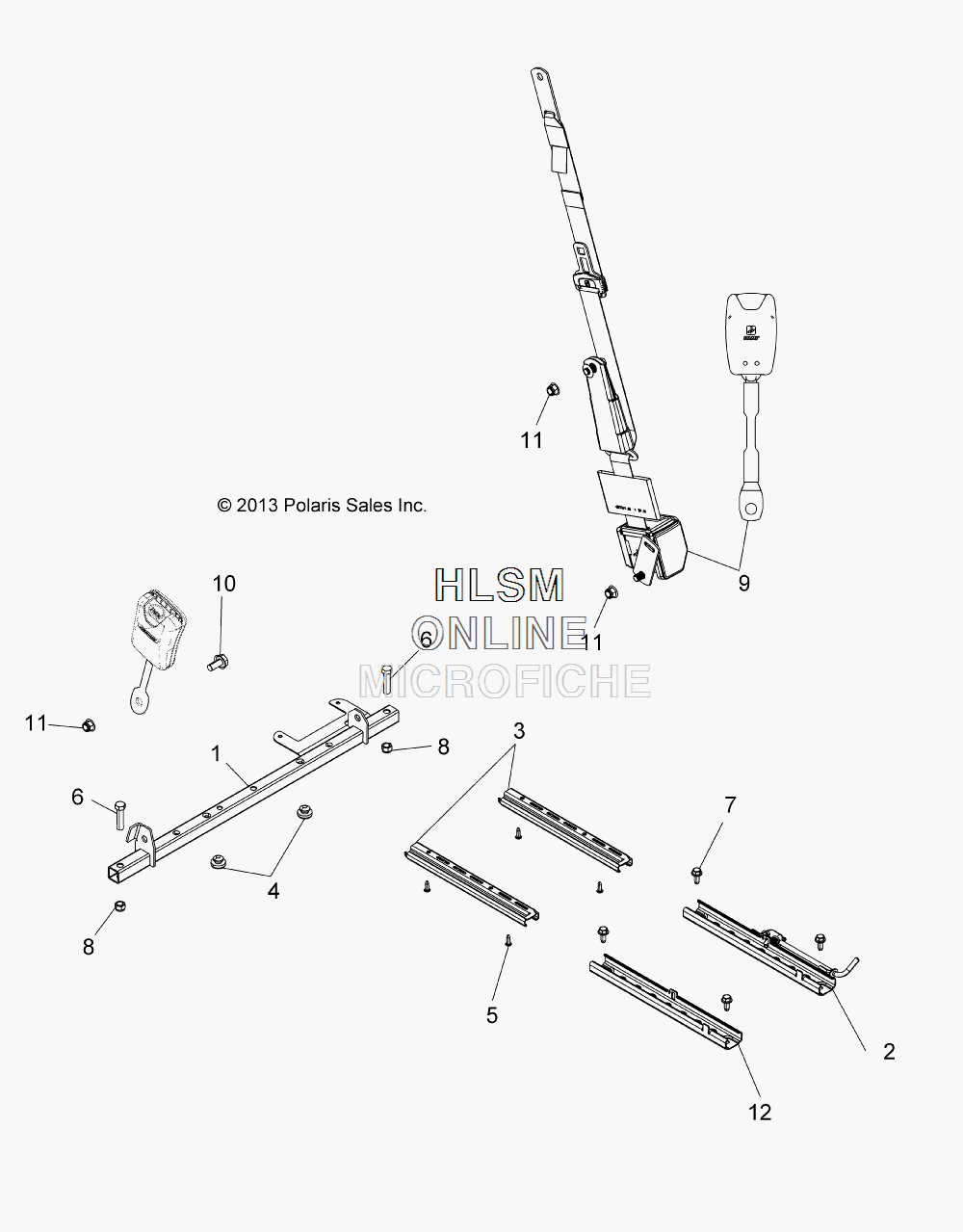

SEAT MOUNTING AND BELTS для Polaris SPORTSMAN ACE (2014)[A14BH33AJ] - 2014 года выпуска
-
№АртикулНазвание
-
11020573-067 BASE, SEAT, REAR, BACK, BLACKBASE, SEAT, REAR, BACK, BLACK
-
21020339 SLIDER, SEATSLIDER, SEAT
-
35258734 GUIDE, SEATGUIDE, SEAT
-
45412067 BUMPER, RUBBERBUMPER, RUBBER
-
57515177 SCREWSCREW
-
67517442 SCREWSCREW
-
77518555 BOLT, FLANGEBOLT, FLANGE
-
87542525 NUTNUT
-
92880129 KIT, SEAT BELT, 3 POINTKIT, SEAT BELT, 3 POINT
-
107519072 SCREWSCREW
-
117547441 NUTNUT
-
125258733 CHANNEL, SEAT SLIDERCHANNEL, SEAT SLIDER
