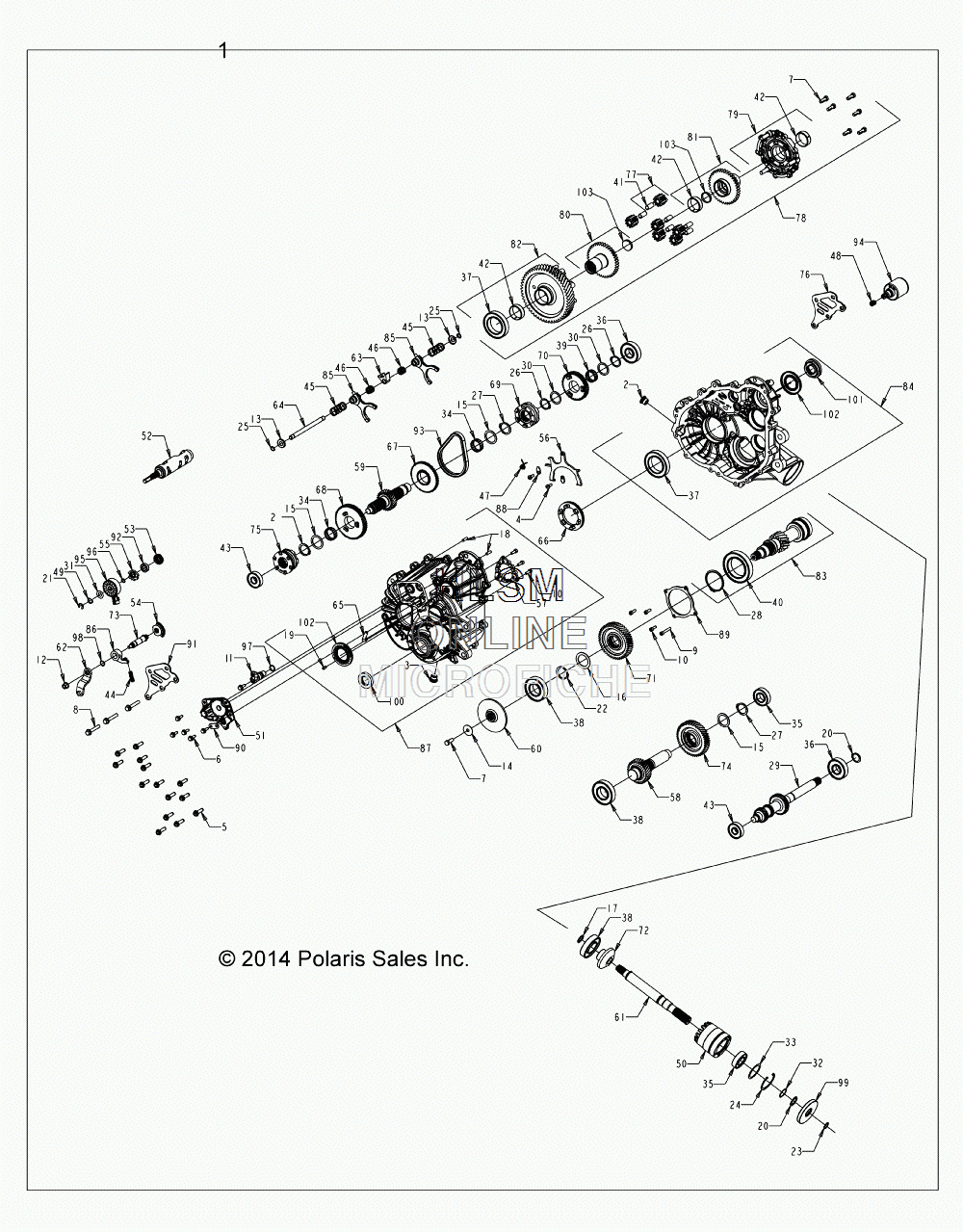

GEARCASE для Polaris SPORTSMAN ACE EUR (2014)[A14BH33FJ] - 2014 года выпуска
-
№АртикулНазвание
-
11333140 ASM., GEARCASE (INCL.ALL)ASM., GEARCASE (INCL.ALL)
-
23234755 PLUGPLUG
-
33234756 PLUG, MAGNETICPLUG, MAGNETIC
-
43234329 SCREWSCREW
-
53234898 SCREW, HEX FLANGE HEADSCREW, HEX FLANGE HEAD
-
63235206 SCREW, HEX FLANGESCREW, HEX FLANGE
-
73235096 SCREW, CAPSCREW, CAP
-
83235207 SCREW, HEX FLANGESCREW, HEX FLANGE
-
93235208 SCREW, SOCKET/CAPSCREW, SOCKET/CAP
-
103235332 SCREW, SOCKET HEAD, CAPSCREW, SOCKET HEAD, CAP
-
114013908 SENSOR, SPEEDSENSOR, SPEED
-
123235210 NUT, LOCK HEX FLANGE, NYLONNUT, LOCK HEX FLANGE, NYLON
-
133234091 WASHER, CUPWASHER, CUP
-
143234952 WASHER, FENDERWASHER, FENDER
-
153235211 WASHERWASHER
-
163235212 WASHERWASHER
-
173235213 WASHERWASHER
-
183234330 PIN, SOLIDPIN, SOLID
-
197043746 PIN, SPRING, SLOTTEDPIN, SPRING, SLOTTED
-
203233106 RING, RETAINING BASIC, EXTERNALRING, RETAINING BASIC, EXTERNAL
-
213233834 RING, SNAPRING, SNAP
-
223233364 RING, RETAINING, IRRRING, RETAINING, IRR
-
233234318 RING, RETAINING, EXTERNALRING, RETAINING, EXTERNAL
-
243234269 RING, RETAINING BASIC, INTERNALRING, RETAINING BASIC, INTERNAL
-
253234090 RING, RETAININGRING, RETAINING
-
263234205 RING, RETAININGRING, RETAINING
-
273235214 RING, RETAINING EXTERNALRING, RETAINING EXTERNAL
-
283235216 RING, RETAINING, VSHRING, RETAINING, VSH
-
293235533 SHAFT, INPUT BOSS L/WSHAFT, INPUT BOSS L/W
-
293235533 SHAFT, INPUT BOSS L/WSHAFT, INPUT BOSS L/W
-
303233378 WASHER, THRUSTWASHER, THRUST
-
313234642 WASHER, THRUSTWASHER, THRUST
-
323234272 SHIMSHIM
-
333234273 SHIMSHIM
-
343233014 BEARING, NEEDLEBEARING, NEEDLE
-
353233019 BEARINGBEARING
-
363233020 BEARINGBEARING
-
373233268 BEARING, BALLBEARING, BALL
-
383234065 BEARING, BALLBEARING, BALL
-
393233384 BEARING, NEEDLE, CAGEDBEARING, NEEDLE, CAGED
-
403235218 BEARING, BALL, CNBEARING, BALL, CN
-
413234239 BEARING, PLAINBEARING, PLAIN
-
423234241 BEARING, PLAINBEARING, PLAIN
-
433234652 BEARING, BALLBEARING, BALL
-
443233820 SPRING, TORSIONSPRING, TORSION
-
453234078 SPRING, COMPRESSIONSPRING, COMPRESSION
-
463234089 SPRING, COMPRESSIONSPRING, COMPRESSION
-
473234276 SPRING, TORSION, RETURNSPRING, TORSION, RETURN
-
483234277 SPRING, COMPRESSIONSPRING, COMPRESSION
-
493235327 SPRING, WASHERSPRING, WASHER
-
503234278 TUBE, SNORKEL MACHINEDTUBE, SNORKEL MACHINED
-
513234188 COVER, SECTOR GEARS, MACHINEDCOVER, SECTOR GEARS, MACHINED
-
523235463 DRUM, SHIFT MACHDRUM, SHIFT MACH
-
533233839 GEAR, SECTORGEAR, SECTOR
-
543233832 GEAR, SECTORGEAR, SECTOR
-
553235453 STAR, DETENTSTAR, DETENT
-
563235455 FORK, SHIFTFORK, SHIFT
-
573235456 PLATE, PARKPLATE, PARK
-
583235223 SHAFT, IDLERSHAFT, IDLER
-
593235451 SHAFT, REVERSESHAFT, REVERSE
-
603235372 DISC, BRAKEDISC, BRAKE
-
613235394 SHAFT, FRONT OUTPUTSHAFT, FRONT OUTPUT
-
623235532 BELLCRANKBELLCRANK
-
633234073 COLLAR, SHIFTCOLLAR, SHIFT
-
643235542 RAIL, SHIFT SHAFTRAIL, SHIFT SHAFT
-
653234230 TUBE, VENT, HOSETUBE, VENT, HOSE
-
663234928 DOG, ENGAGEMENTDOG, ENGAGEMENT
-
673235231 SPROCKET, 48T, 6-FACESPROCKET, 48T, 6-FACE
-
683235232 GEAR, LOW 67TGEAR, LOW 67T
-
693235233 DOG, ENGAGEMENT, 6-FACEDOG, ENGAGEMENT, 6-FACE
-
703235534 GEAR, 56TGEAR, 56T
-
713235236 GEAR, 46T, STAGE 3GEAR, 46T, STAGE 3
-
723235237 GEAR, 13T, SNORKELGEAR, 13T, SNORKEL
-
733235238 SHAFT, SHIFTSHAFT, SHIFT
-
743235450 GEAR, 48T, STAGE 2GEAR, 48T, STAGE 2
-
753235457 SHIFT DOG, PARKSHIFT DOG, PARK
-
763235527 BRACKET, MOUNT, REARBRACKET, MOUNT, REAR
-
773234469 SUBASM., PLANET GEAR (INCL. BUSHING)SUBASM., PLANET GEAR (INCL. BUSHING)
-
783235373 DIFFERENTIAL, LOCKINGDIFFERENTIAL, LOCKING
-
793235376 SUBASM., DIFFERENTIAL COVER (INCL. PLUG, BUSHINGS)SUBASM., DIFFERENTIAL COVER (INCL. PLUG, BUSHINGS)
-
803235374 SUBASM., 39T SIDE GEAR (INCL. PLUG)SUBASM., 39T SIDE GEAR (INCL. PLUG)
-
813235375 SUBASM., 39T SIDE GEAR (INCL. PLUG, BUSHING)SUBASM., 39T SIDE GEAR (INCL. PLUG, BUSHING)
-
823235378 SUBASM., GEAR 53T (INCL. PINS, BUSHING, BEARING)SUBASM., GEAR 53T (INCL. PINS, BUSHING, BEARING)
-
833235371 SUBASM., PINION, 11T (INCL. BEARING,RET. RING)SUBASM., PINION, 11T (INCL. BEARING,RET. RING)
-
843235547 CASE, LEFT HAND (INCL. ALL HARDWARE)CASE, LEFT HAND (INCL. ALL HARDWARE)
-
853235454 SUBASM, SHIFT FORKSUBASM, SHIFT FORK
-
863235452 PAWL, DETENT, ROLLERPAWL, DETENT, ROLLER
-
873235548 COVER, RIGHT HAND (INCL. ALL HARDWARE)COVER, RIGHT HAND (INCL. ALL HARDWARE)
-
883234934 RETAINER, FORKRETAINER, FORK
-
893235241 COVER, BEARING (CENTER DRIVE)COVER, BEARING (CENTER DRIVE)
-
903235350 BRACKET, WIRE HARNESSBRACKET, WIRE HARNESS
-
913235528 BRACKET REAR MOUNTBRACKET REAR MOUNT
-
923235243 SPACERSPACER
-
933234737 CHAIN, SILENTCHAIN, SILENT
-
943235478 SOLENOIDSOLENOID
-
957661999 SWITCH, ROTARY , 2 PIN RESISTIVESWITCH, ROTARY , 2 PIN RESISTIVE
-
963233076 O-RINGO-RING
-
973234302 O-RINGO-RING
-
983233869 O-RINGO-RING
-
993234113 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
-
1003234892 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
-
1013234851 SEALSEAL
-
1023235052 SEAL, TRIPLE LIP, VITONSEAL, TRIPLE LIP, VITON
-
1033234249 PLUG, EXPANSIONPLUG, EXPANSION
