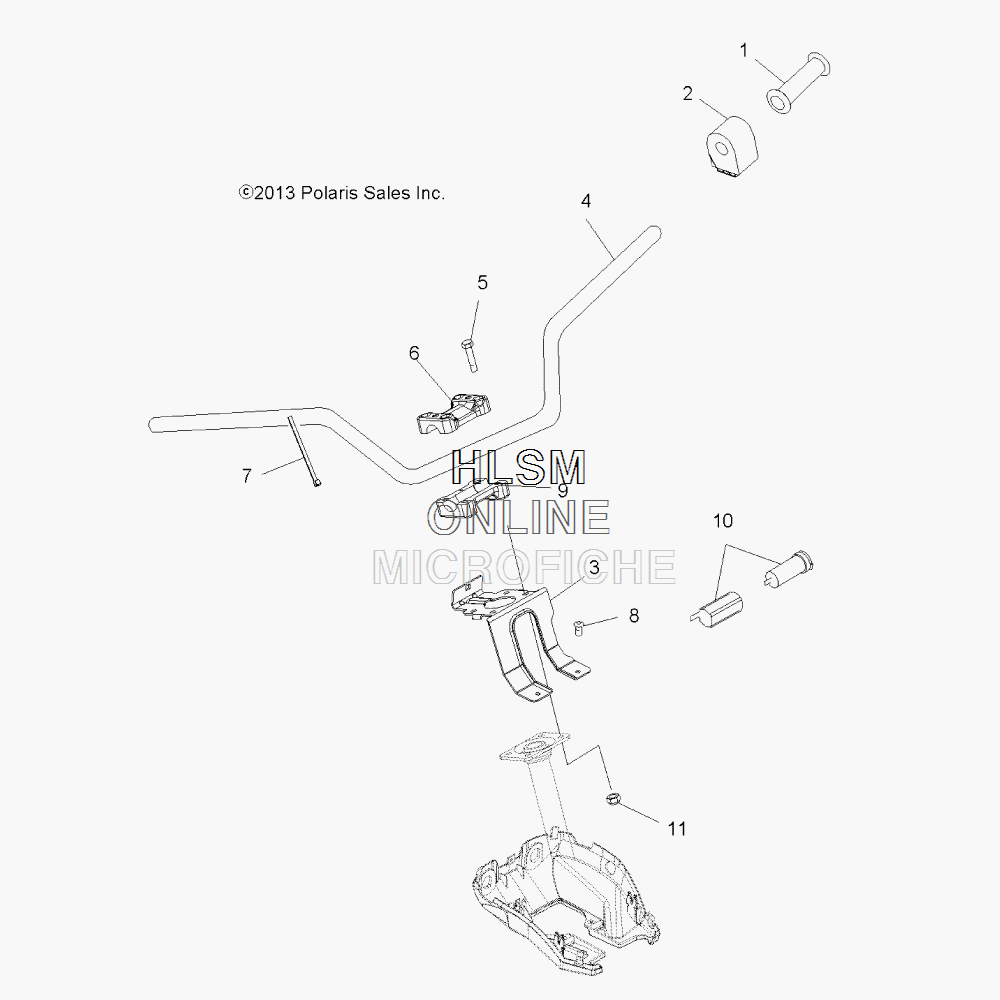

HANDLEBAR - CONTROL ASSY. для Polaris SPORTSMAN FOREST TRACTOR 500 - SAGE BRUSH GREEN METALLIC [A14MN50EA] - 2014 года выпуска
-
№АртикулНазвание
-
15413578-070 GRIP, HANDLEBAR, BLACKGRIP, HANDLEBAR, BLACK
-
24013074 SWITCH, HANDLEBAR, LEFT HANDSWITCH, HANDLEBAR, LEFT HAND
-
35244969-067 BRACKET, POD MOUNTING, BLACKBRACKET, POD MOUNTING, BLACK
-
45244581-067 TUBE, HANDLEBAR, BLACKTUBE, HANDLEBAR, BLACK
-
57515189 SCREWSCREW
-
65631972 BLOCK, HANDLEBAR, PEGGEDBLOCK, HANDLEBAR, PEGGED
-
77080138 CABLE TIECABLE TIE
-
87517317 SCREWSCREW
-
95631973 BLOCK, HANDLEBARBLOCK, HANDLEBAR
-
104010638 RECEPTACLE, POD MOUNT, 12VRECEPTACLE, POD MOUNT, 12V
-
117542122 NUT, NYLOKNUT, NYLOK
