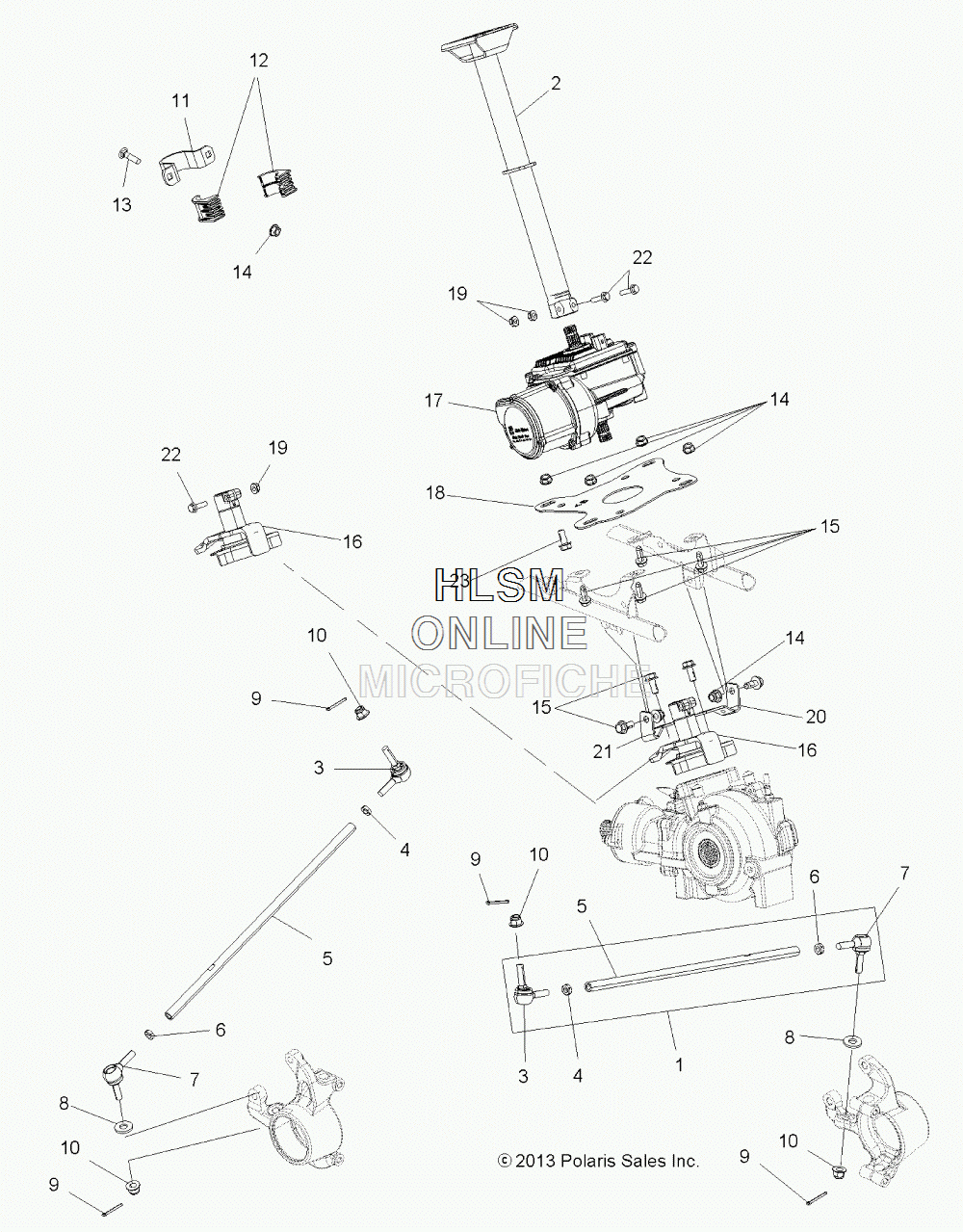

STEERING POST для Polaris SPORTSMAN TOURING 550 EPS - SOLAR RED [A14DN5EAH] - 2014 года выпуска
-
№АртикулНазвание
-
11824007 ASM., TIE ROD (INCL. 3-7) (3-7 AVAILABLE ONLY IN THIS ASSEMBLY)ASM., TIE ROD (INCL. 3-7) (3-7 AVAILABLE ONLY IN THIS ASSEMBLY)
-
21823781-329 POST, STEERING, UPPER, BLACKPOST, STEERING, UPPER, BLACK
-
87556153 WASHERWASHER
-
97661205 PIN, COTTERPIN, COTTER
-
107547333 NUT, FLANGENUT, FLANGE
-
115249143 BRACKET, STEERING, UPPER (BUILT 3/12/14 AND BEFORE)BRACKET, STEERING, UPPER (BUILT 3/12/14 AND BEFORE)
-
115259997 BRACKET, STEERING, UPPER (BUILT 3/13/14 AND AFTER)BRACKET, STEERING, UPPER (BUILT 3/13/14 AND AFTER)
-
125438904 BUSHING, STEERING, UPPERBUSHING, STEERING, UPPER
-
137518479 BOLT, CARRIAGEBOLT, CARRIAGE
-
147547317 NUT, FLANGENUT, FLANGE
-
157518450 BOLT, FLANGEBOLT, FLANGE
-
162205364 KIT, POST, STEERING, LOWER, BOLTED (INCL. POST AND HARDWARE)KIT, POST, STEERING, LOWER, BOLTED (INCL. POST AND HARDWARE)
-
172412743 ASM., POWER STEERINGASM., POWER STEERING
-
185254633-329 BRACKET, POWER STEERING, BLACKBRACKET, POWER STEERING, BLACK
-
197547274 NUT, FLANGENUT, FLANGE
-
205253166-329 BRACKET, FRONT DRIVE, LEFT HAND, BLACKBRACKET, FRONT DRIVE, LEFT HAND, BLACK
-
215253167-329 BRACKET, FRONT DRIVE, RIGHT HAND, BLACKBRACKET, FRONT DRIVE, RIGHT HAND, BLACK
-
227516827 SCREW, FLANGESCREW, FLANGE
-
237518558 BOLT, FLANGEBOLT, FLANGE
