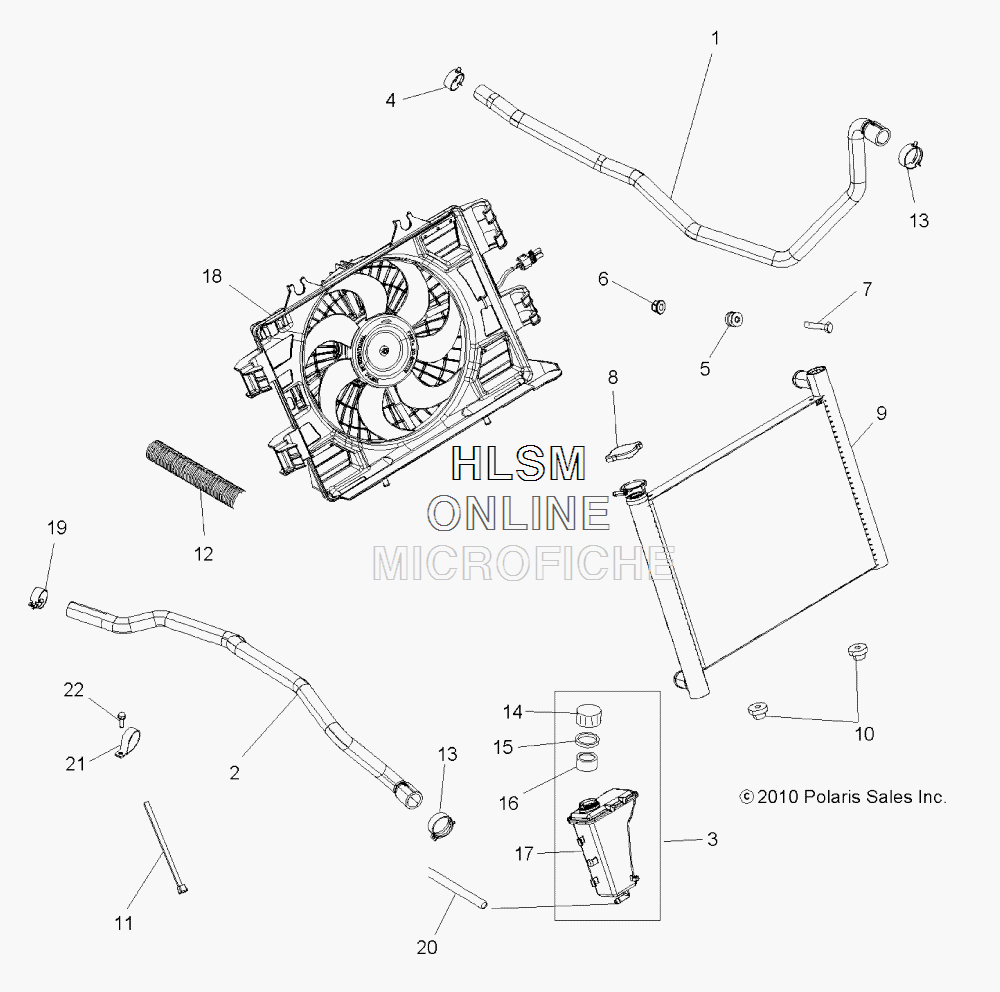

COOLING SYSTEM для Polaris SPORTSMAN X2 550 EPS - (INDY RED) [A14TN5EAD] - 2014 года выпуска
-
№АртикулНазвание
-
15413847 HOSE, RADIATOR, ENGINE OUTHOSE, RADIATOR, ENGINE OUT
-
25414390 HOSE, RADIATOR, ENGINE INHOSE, RADIATOR, ENGINE IN
-
31240406 ASM., BOTTLE, COOLANT RECOVERY (INCL. 14-17,20)ASM., BOTTLE, COOLANT RECOVERY (INCL. 14-17,20)
-
47080842 CLAMP, SPRINGBANDCLAMP, SPRINGBAND
-
55413509 ASM., GROMMET AND INSERTASM., GROMMET AND INSERT
-
67547274 NUT, NYLOKNUT, NYLOK
-
77519202 SCREWSCREW
-
81240466 CAP, PRESSURECAP, PRESSURE
-
91240596 ASM., RADIATOR (INCL. 3,5,8-10,18)ASM., RADIATOR (INCL. 3,5,8-10,18)
-
91240404 RADIATORRADIATOR
-
105413510 GROMMET, RADIATOR MOUNT, LOWERGROMMET, RADIATOR MOUNT, LOWER
-
117080492 CABLE TIECABLE TIE
-
125521324 TUBING, CONVOLUTEDTUBING, CONVOLUTED
-
137080843 CLAMP, SPRINGBANDCLAMP, SPRINGBAND
-
145430743 CAP, OVERFLOW BOTTLE, DRILLEDCAP, OVERFLOW BOTTLE, DRILLED
-
155810279 GASKET, OVERFLOW CAPGASKET, OVERFLOW CAP
-
165433774 PLUG, CAPPLUG, CAP
-
175437257 BOTTLE, COLLANT RECOVERYBOTTLE, COLLANT RECOVERY
-
182411578 FANFAN
-
197080842 CLAMP, SPRINGBAND, BLACKCLAMP, SPRINGBAND, BLACK
-
208450128-27 LINE, COOLANTLINE, COOLANT
-
217080851 CLAMP, HOSECLAMP, HOSE
-
227518513 SCREWSCREW
