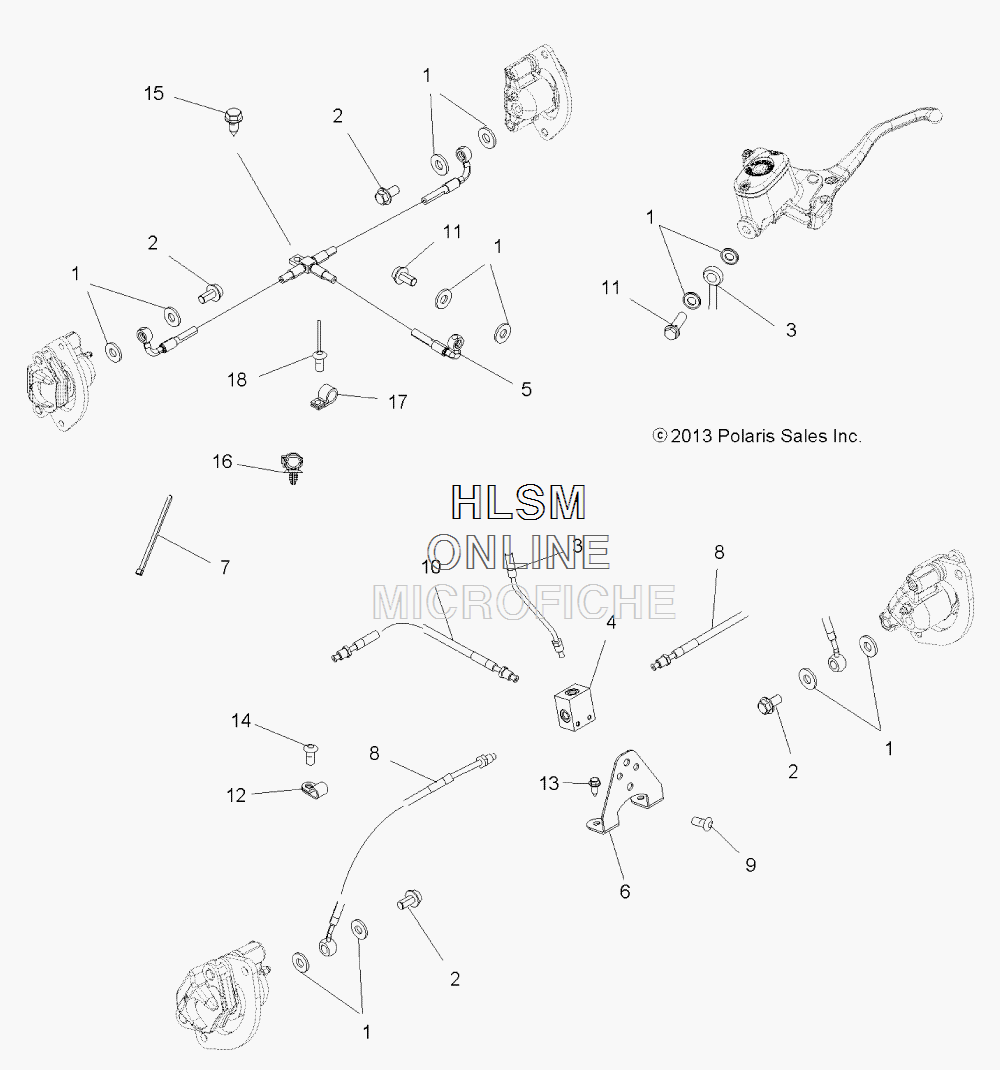

BRAKE LINES для Polaris SPORTSMAN X2 550 EPS LE UE (2014)[A14TN5EAI] - 2014 года выпуска
-
№АртикулНазвание
-
15413212 SEALSEAL
-
21910499 BOLT, BANJOBOLT, BANJO
-
31911670 LINE, BRAKE, POD TO JBLINE, BRAKE, POD TO JB
-
47052372 FITTING, CROSSFITTING, CROSS
-
51911424 LINE, BRAKE, REAR, 2-UPLINE, BRAKE, REAR, 2-UP
-
65257768 BRACKET, JUNCTION BLOCKBRACKET, JUNCTION BLOCK
-
77080138 CABLE TIECABLE TIE
-
81911668 LINE, BRAKE, CALIPER, FRONTLINE, BRAKE, CALIPER, FRONT
-
97512024 SCREWSCREW
-
101911669 LINE, BRAKE, JB TO FT MCLINE, BRAKE, JB TO FT MC
-
111910958 BOLT, BANJOBOLT, BANJO
-
127081246 CLAMP, WIRE/TUBECLAMP, WIRE/TUBE
-
137518513 SCREWSCREW
-
147512084 SCREWSCREW
-
157518533 BOLT, FLANGEBOLT, FLANGE
-
167670116 CLIP, ROUTINGCLIP, ROUTING
-
177080499 CLAMP, CABLECLAMP, CABLE
-
187621330 RIVETRIVET
