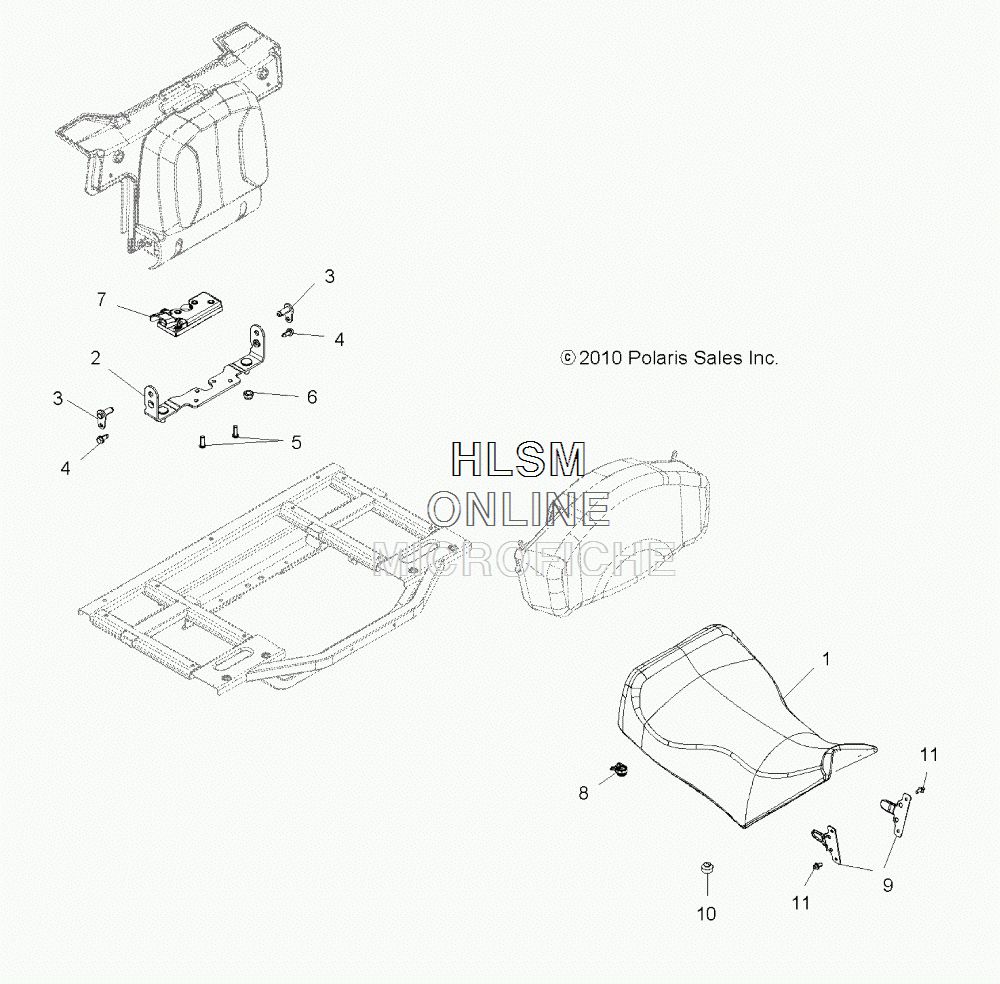

SEAT - OPERATOR для Polaris SPORTSMAN X2 550 INTL - SAGE BRUSH GREEN METALLIC [A14TN55FA] - 2014 года выпуска
-
№АртикулНазвание
-
12684893-070 ASM., SEAT, BLACKASM., SEAT, BLACK
-
12684290 ASM., COVER, WHITE DECALASM., COVER, WHITE DECAL
-
12204682 KIT, SEAT POSTKIT, SEAT POST
-
21015414-067 PIVOT, PASSENGER SEATPIVOT, PASSENGER SEAT
-
31015413 PIN, PIVOTPIN, PIVOT
-
47517386 SCREWSCREW
-
57515177 SCREWSCREW
-
67542343 NUT, NYLOK, FLANGENUT, NYLOK, FLANGE
-
77081325 LATCHLATCH
-
85413691 GROMMET, SEAT LATCHGROMMET, SEAT LATCH
-
95250682 BRACKET, SEAT BASEBRACKET, SEAT BASE
-
105412067 BUMPER, RUBBERBUMPER, RUBBER
-
117519045 SCREWSCREW
