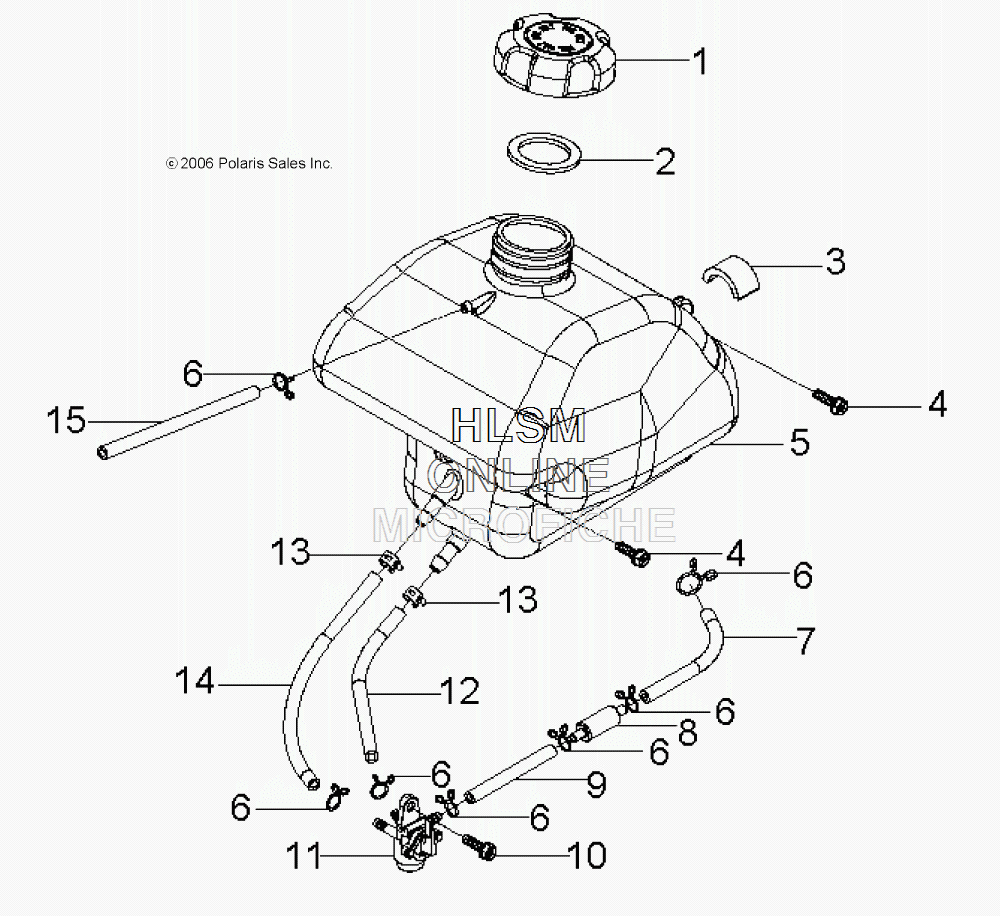

FUEL TANK W/HOSES для Polaris OUTLAW 50 VOODOO BLUE [A15YAK05AF] - 2015 года выпуска
-
№АртикулНазвание
-
10453691 ASM., CAP, FUEL (INCL. 2)ASM., CAP, FUEL (INCL. 2)
-
20453692 GASKET, FUEL CAPGASKET, FUEL CAP
-
30450632 MAT, RUBBERMAT, RUBBER
-
40451035 BOLTBOLT
-
50453870 ASM., TANK, FUELASM., TANK, FUEL
-
60450054 CLIPCLIP
-
70454026 HOSE, FUEL (110 MM)HOSE, FUEL (110 MM)
-
80453695 FILTER, FUELFILTER, FUEL
-
90454026 HOSE, FUEL (70 MM)HOSE, FUEL (70 MM)
-
100450701 BOLTBOLT
-
110450366 VALVE, FUELVALVE, FUEL
-
120454736 ASM., HOSE, FUEL, W/SLEEVEASM., HOSE, FUEL, W/SLEEVE
-
130454592 CLAMP, HOSECLAMP, HOSE
-
140454737 HOSE, FUEL, W/SLEEVEHOSE, FUEL, W/SLEEVE
-
150454046 HOSE, VENT LINEHOSE, VENT LINE
