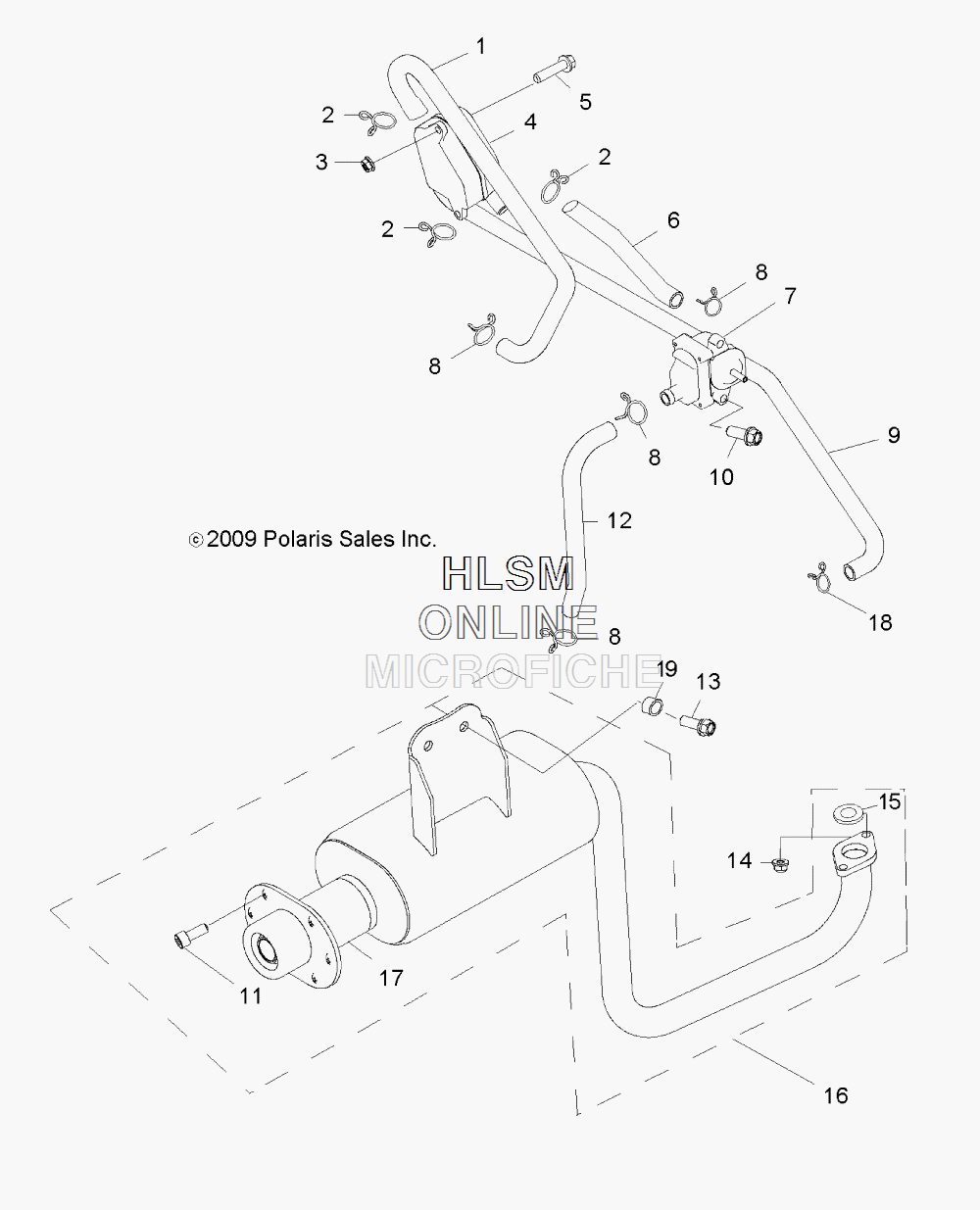

EXHAUST SYSTEM для Polaris RZR 170 EFI INDY RED [R15YAV17AA] - 2015 года выпуска
-
№АртикулНазвание
-
10454396 TUBE, BREATHER, VENTILATEDTUBE, BREATHER, VENTILATED
-
20453187 CLIP, RETAININGCLIP, RETAINING
-
30450880 NUTNUT
-
40454397 SEPARATOR, OILSEPARATOR, OIL
-
50452215 BOLTBOLT
-
60454540 HOSE, OIL, FORMEDHOSE, OIL, FORMED
-
70454398 VALVE, DUAL-INTAKEVALVE, DUAL-INTAKE
-
80453932 CLIPCLIP
-
90454541 HOSE, OIL, FORMEDHOSE, OIL, FORMED
-
100453517 BOLTBOLT
-
110453130 BOLTBOLT
-
120454597 HOSE, RUBBERHOSE, RUBBER
-
130452123 BOLTBOLT
-
140454401 NUTNUT
-
150453672 GASKETGASKET
-
160455046 ASM., EXHAUST PIPE (INCL. 11,13,15,17,19)ASM., EXHAUST PIPE (INCL. 11,13,15,17,19)
-
170454262 ARRESTER, SPARKARRESTER, SPARK
-
180453516 CLIPCLIP
-
190454662 BUSHINGBUSHING
