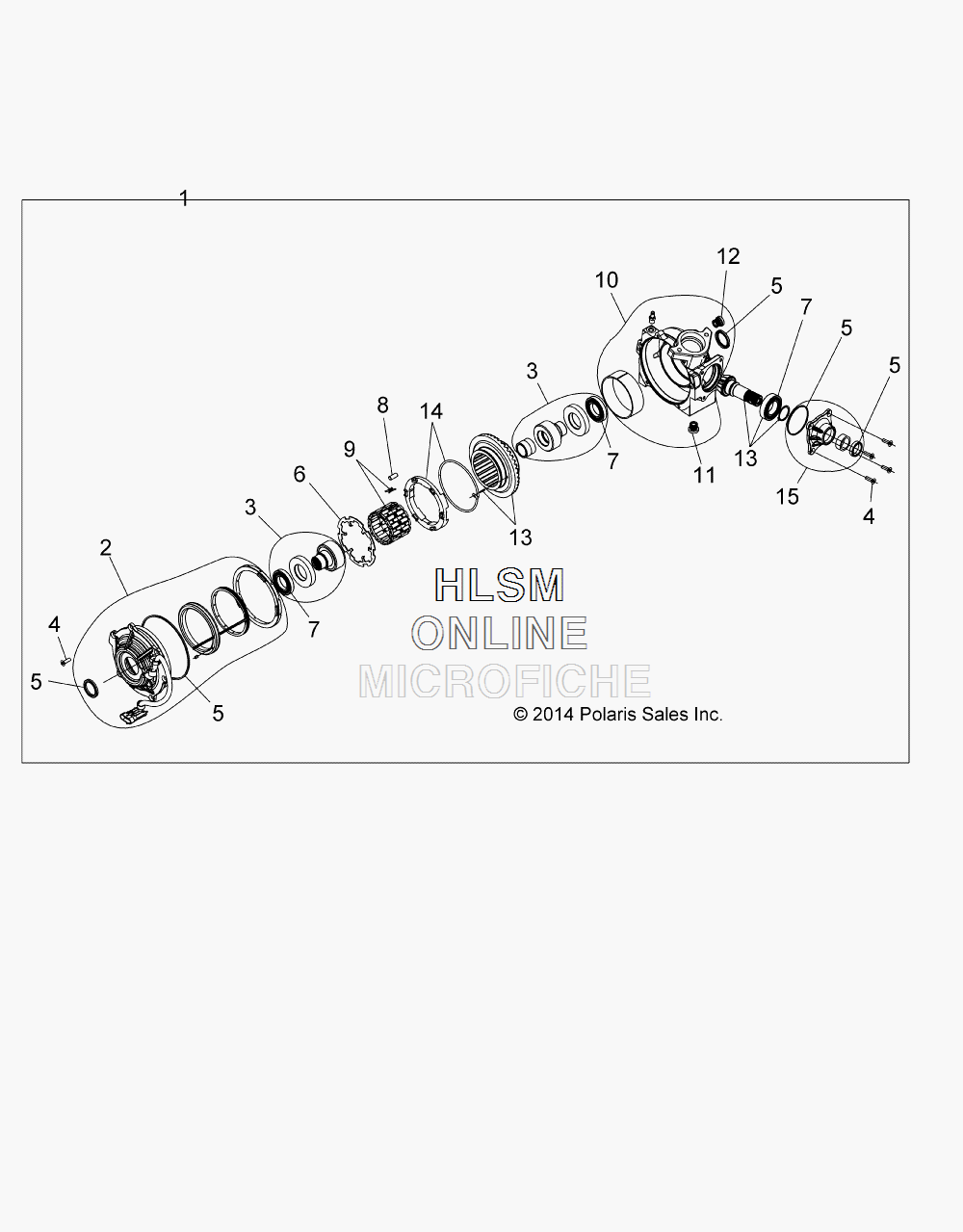

GEARCASE - INTERNAL COMPONENTS - FRONT для Polaris SCRAMBLER 850 EU (INDY RED) [A15SVA85FD] - 2015 года выпуска
-
№АртикулНазвание
-
11333391 ASM., GEARCASE, FRONT (INCL. 1-15)ASM., GEARCASE, FRONT (INCL. 1-15)
-
23235634 ASSY, COVR OUTLET (INCL. O-RING, 4WD COIL, SPACER, CLIP, INSERT, COVER, PIN, SEAL, WIRING)ASSY, COVR OUTLET (INCL. O-RING, 4WD COIL, SPACER, CLIP, INSERT, COVER, PIN, SEAL, WIRING)
-
33235169 KIT, HUB ASSEMBLY (INCL. BEARINGS, BUSHING, HUBS, SPACERS)KIT, HUB ASSEMBLY (INCL. BEARINGS, BUSHING, HUBS, SPACERS)
-
43235433 KIT, FASTENERS (INCL. QTY 10 SCREWS)KIT, FASTENERS (INCL. QTY 10 SCREWS)
-
53235434 COMPLETE SEAL REPAIR (INCL. ALL O-RINGS, ALL SEALS)COMPLETE SEAL REPAIR (INCL. ALL O-RINGS, ALL SEALS)
-
63235485 PLATE, 4WD ARMATUREPLATE, 4WD ARMATURE
-
73235435 BEARINGS (INCL. ALL BEARINGS)BEARINGS (INCL. ALL BEARINGS)
-
83235624 CLUTCH, ROLLERS (INCL. SET OF 24)CLUTCH, ROLLERS (INCL. SET OF 24)
-
93235625 ASM., ROLL CAGE (INCL. CAGE, QTY 24 CLIPS)ASM., ROLL CAGE (INCL. CAGE, QTY 24 CLIPS)
-
103235436 ASM., GEARCASE (INCL. CASE, BUSHING, PLUGS, SEAL, VENT)ASM., GEARCASE (INCL. CASE, BUSHING, PLUGS, SEAL, VENT)
-
112203738 DRAIN PLUGDRAIN PLUG
-
122203739 FILL PLUGFILL PLUG
-
133235636 KIT, GEAR HOUSING AND PINION GEAR (INCL. PINION, PIN, BEARING, SNAP RING, RING GEAR)KIT, GEAR HOUSING AND PINION GEAR (INCL. PINION, PIN, BEARING, SNAP RING, RING GEAR)
-
143235712 KIT, TORSION SPRING AND RETAINERKIT, TORSION SPRING AND RETAINER
-
153235438 KIT, INPUT COVER (INCL. O-RING, COVER, BUSHING, SEAL)KIT, INPUT COVER (INCL. O-RING, COVER, BUSHING, SEAL)
