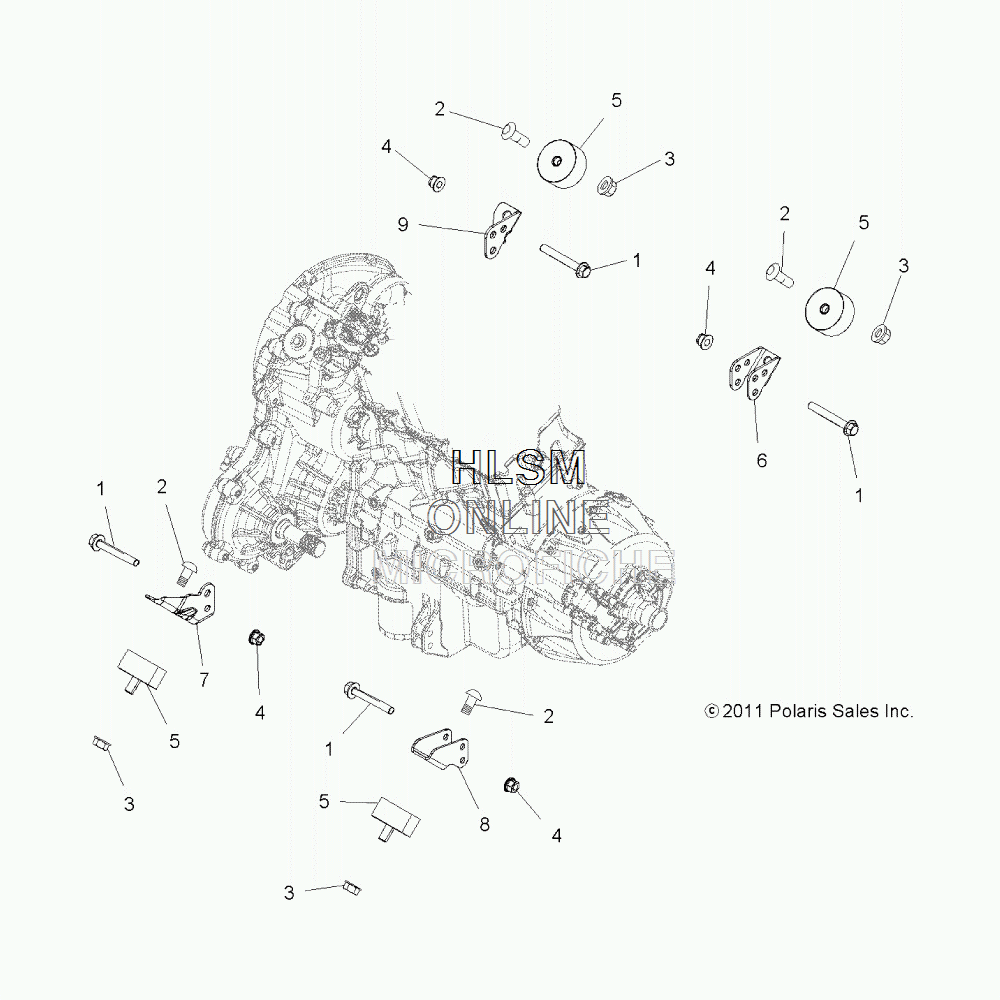

ENGINE - MOUNTING для Polaris SCRAMBLER 850 (INDY RED) [A15SVA85AD] - 2015 года выпуска
-
№АртикулНазвание
-
17516732 SCREW, FLANGESCREW, FLANGE
-
27519032 SCREWSCREW
-
37547313 NUT, FLANGENUT, FLANGE
-
47547317 NUT, FLANGENUT, FLANGE
-
53022154 ISOLATORISOLATOR
-
65251716 BRACKET, TRANSMISSION MOUNT, LEFT HANDBRACKET, TRANSMISSION MOUNT, LEFT HAND
-
75252091 BRACKET, TRANSMISSION, RIGHT HANDBRACKET, TRANSMISSION, RIGHT HAND
-
85251717 BRACKET, ENGINE, MOUNT, RIGHT HANDBRACKET, ENGINE, MOUNT, RIGHT HAND
-
95253340 BRACKET, TRANSMISSION, LEFT HANDBRACKET, TRANSMISSION, LEFT HAND
