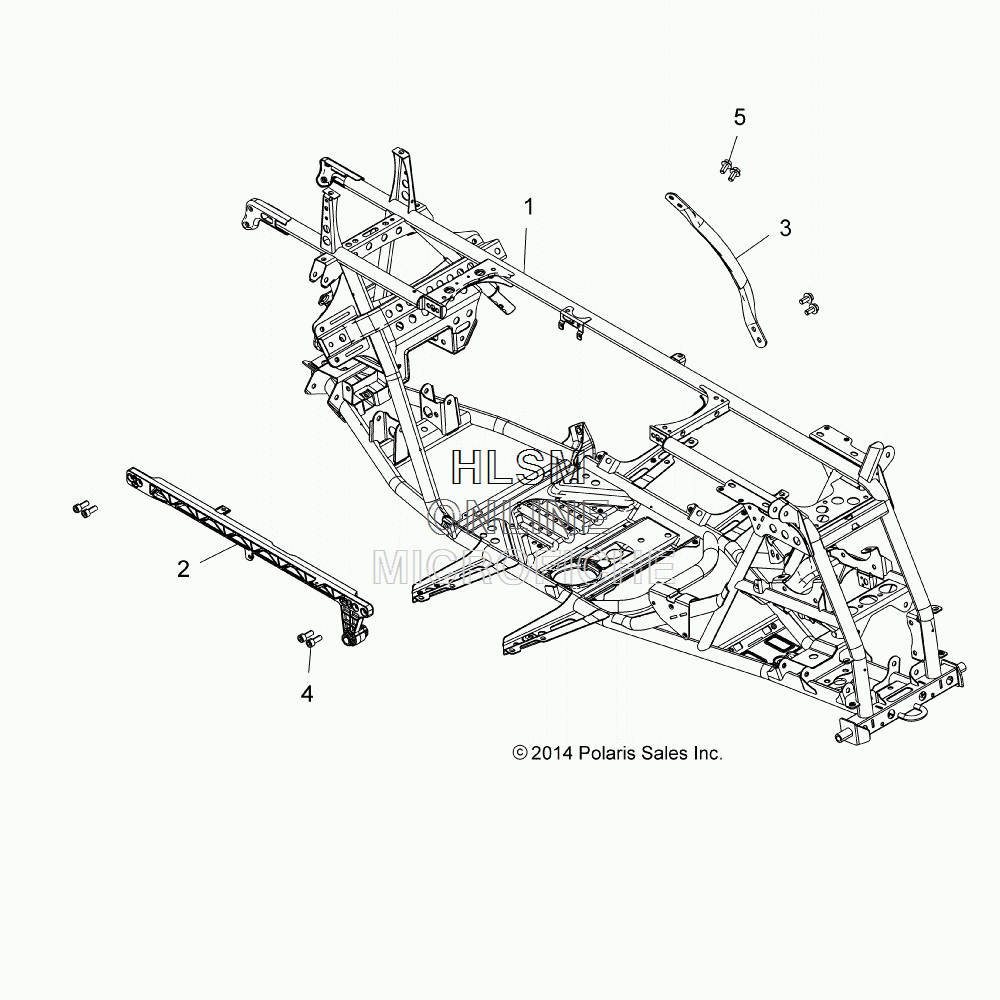

FRAME для Polaris SCRAMBLER 850 MD [A15SVA85HD] - 2015 года выпуска
-
№АртикулНазвание
-
11020846-067 FRAME, MAIN, BLACK (INCL. 2-5)FRAME, MAIN, BLACK (INCL. 2-5)
-
25135762-067 SUPPORT, FRAME, UPPER, RIGHT HAND, BLACKSUPPORT, FRAME, UPPER, RIGHT HAND, BLACK
-
35337943 SUPPORT, FRAME, LOWERSUPPORT, FRAME, LOWER
-
47517358 SCREWSCREW
-
57518700 SCREW, FLANGESCREW, FLANGE
