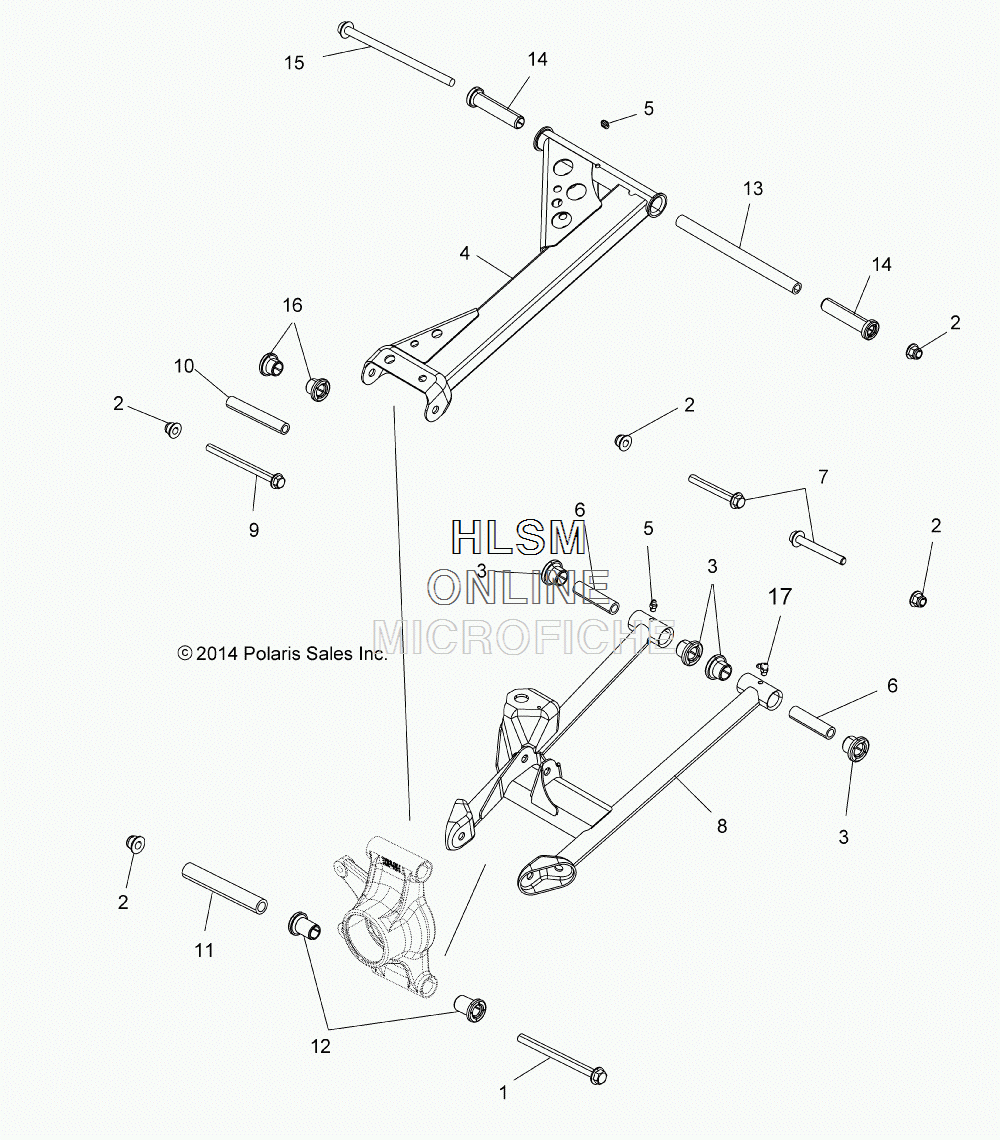

SUSPENSION - REAR для Polaris SPORTSMAN 1000 XP (BLACK PEARL) METALLIC [A15SXE95AK] - 2015 года выпуска
-
№АртикулНазвание
-
17518467 BOLT, FLANGEBOLT, FLANGE
-
27547313 NUT, FLANGENUT, FLANGE
-
35439874 BUSHINGBUSHING
-
41017216-632 ARM, CONTROL, UPPER, REAR, LEFT HAND, TITANIUM (AK)ARM, CONTROL, UPPER, REAR, LEFT HAND, TITANIUM (AK)
-
41017217-632 ARM, CONTROL, UPPER, REAR, RIGHT HAND, TITANIUM (AK)ARM, CONTROL, UPPER, REAR, RIGHT HAND, TITANIUM (AK)
-
57080433 FITTING, LUBRICATINGFITTING, LUBRICATING
-
65137346 SHAFT, A-ARMSHAFT, A-ARM
-
77518466 BOLT, FLANGEBOLT, FLANGE
-
81019410-632 ARM, CONTROL, LOWER, REAR, LEFT HAND, TITANIUM (AK)ARM, CONTROL, LOWER, REAR, LEFT HAND, TITANIUM (AK)
-
81019411-632 ARM, CONTROL, LOWER, REAR, RIGHT HAND, TITANIUM (AK)ARM, CONTROL, LOWER, REAR, RIGHT HAND, TITANIUM (AK)
-
97518675 BOLT, FLANGEBOLT, FLANGE
-
105137590 SHAFT, PIVOTSHAFT, PIVOT
-
115136473 SHAFT, A-ARM, LOWER CONTROL ARMSHAFT, A-ARM, LOWER CONTROL ARM
-
125437651 BUSHING, LOWER CONTROL ARMBUSHING, LOWER CONTROL ARM
-
135137594 SHAFT, PIVOTSHAFT, PIVOT
-
145436973 BUSHING, A-ARM, LONGBUSHING, A-ARM, LONG
-
157518472 BOLTBOLT
-
165439874 BUSHINGBUSHING
-
177080510 FITTING, ZERKFITTING, ZERK
