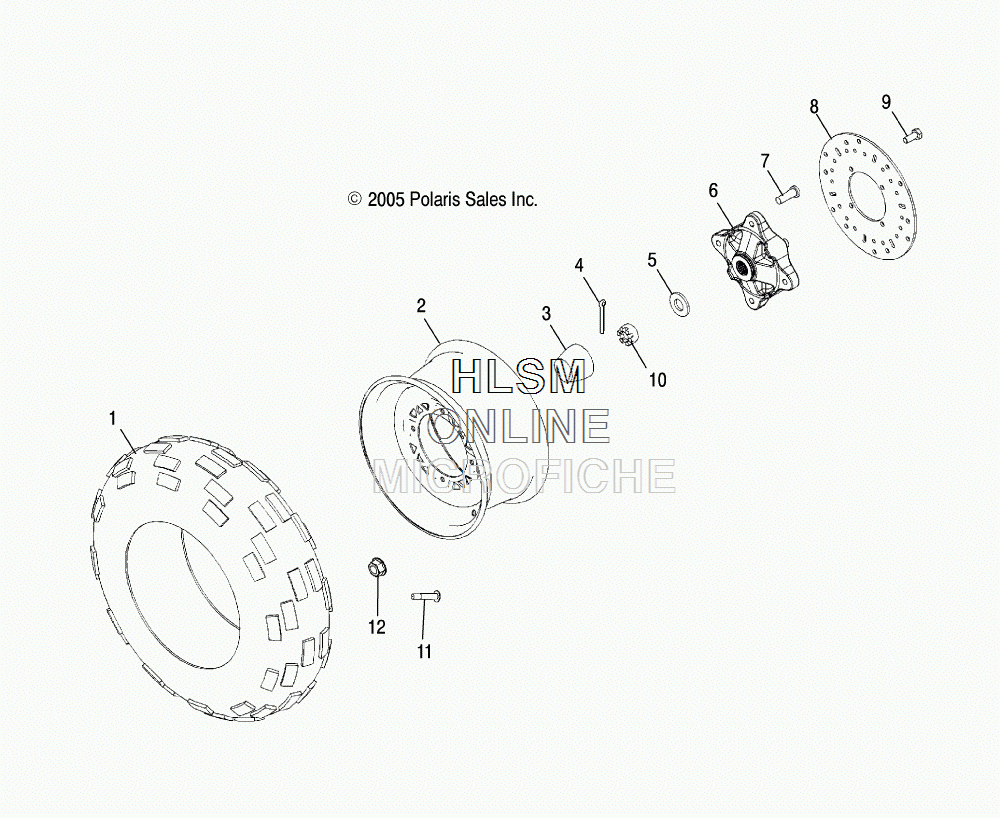

WHEEL - FRONT W/BRAKE DISK для Polaris SPORTSMAN 570 EFI EPS FOREST QUAD [A15SEB57CJ] - 2015 года выпуска
-
№АртикулНазвание
-
15414128 TIRE, FRONT, 25X8-12TIRE, FRONT, 25X8-12
-
21520269-067 RIM, FRONT, BLACKRIM, FRONT, BLACK
-
35413427 COVER, DUST, HUBCOVER, DUST, HUB
-
47661404 PIN, COTTERPIN, COTTER
-
57556004 WASHERWASHER
-
65134310 HUB, WHEELHUB, WHEEL
-
77518378 STUDSTUD
-
85244314 DISC, BRAKE, FRONTDISC, BRAKE, FRONT
-
97512325 BOLTBOLT
-
107542810 NUT, SLOTTEDNUT, SLOTTED
-
111525017 VALVE, RIMVALVE, RIM
-
127547237 NUT, FLANGENUT, FLANGE
