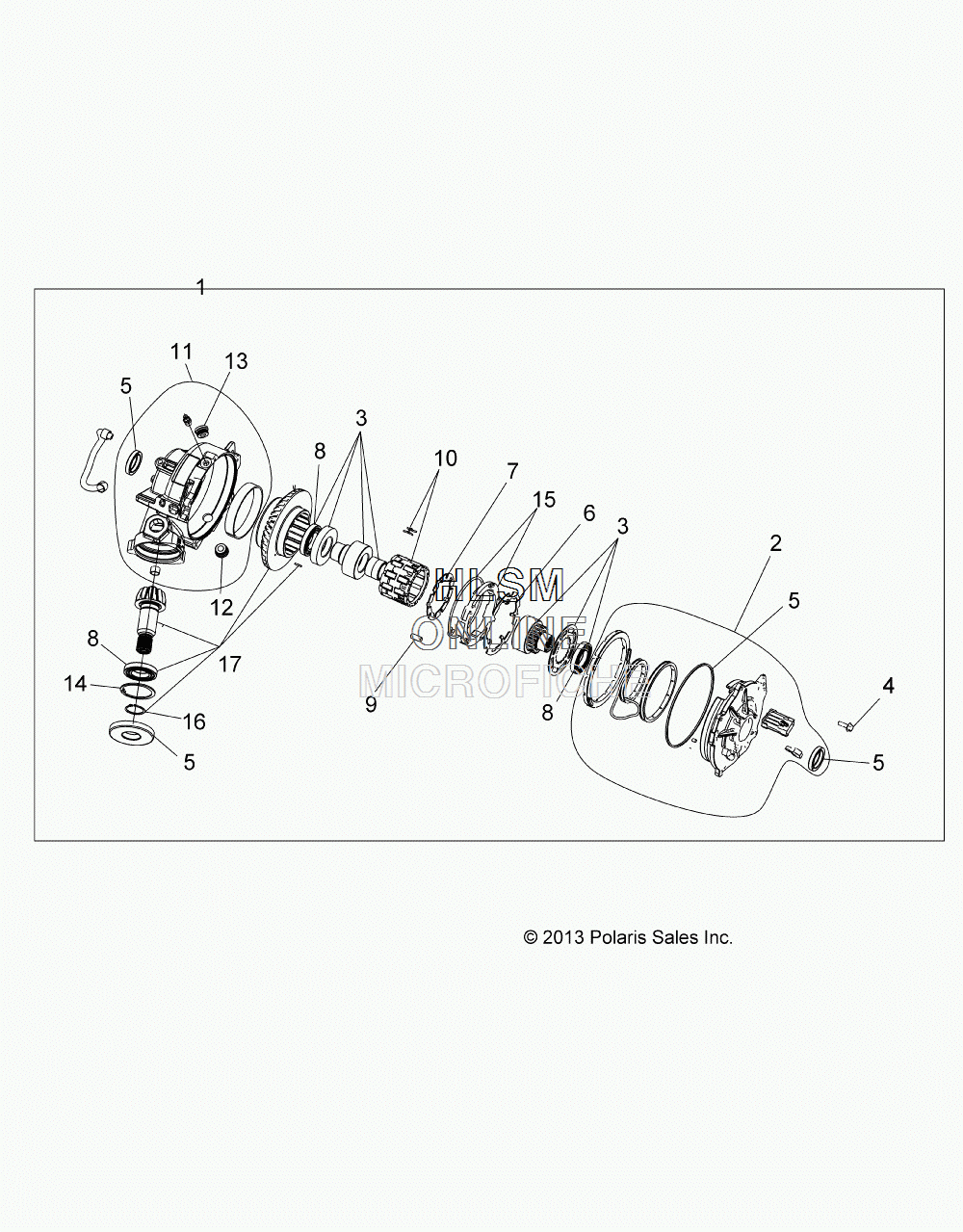

GEARCASE - FRONT для Polaris SPORTSMAN 570 EFI X2 EPS EUROPE [A15SWE57FA] - 2015 года выпуска
-
№АртикулНазвание
-
11333371 ASM., GEARCASE, RIGHT HAND, ADC, AUTOLOCK (INCL. ALL)ASM., GEARCASE, RIGHT HAND, ADC, AUTOLOCK (INCL. ALL)
-
23235553 ASM., COVER, OUTPUTASM., COVER, OUTPUT
-
33235554 ASM., OUTPUT HUBASM., OUTPUT HUB
-
43235469 KIT, FASTENERSKIT, FASTENERS
-
53235470 KIT, SEAL REPAIRKIT, SEAL REPAIR
-
63235485 PLATE, ARMATUREPLATE, ARMATURE
-
73235626 PLATE, ARMATURE, BDPLATE, ARMATURE, BD
-
83234390 BEARINGBEARING
-
93235624 KIT, ROLLER (SET OF 20)KIT, ROLLER (SET OF 20)
-
103235625 ASM., ROLL CAGE (INCL. CAGE, 20 CLIPS)ASM., ROLL CAGE (INCL. CAGE, 20 CLIPS)
-
113235555 ASM., GEARCASEASM., GEARCASE
-
123234412 ASM., PLUG, DRAINASM., PLUG, DRAIN
-
133234414 PLUG, OIL FILLPLUG, OIL FILL
-
143234416 RING, RETAINING, INTERNALRING, RETAINING, INTERNAL
-
153235712 KIT, SPRINGKIT, SPRING
-
173235627 ASM., GEAR HOUSING AND PINION GEAR (INCL. PIN)ASM., GEAR HOUSING AND PINION GEAR (INCL. PIN)
