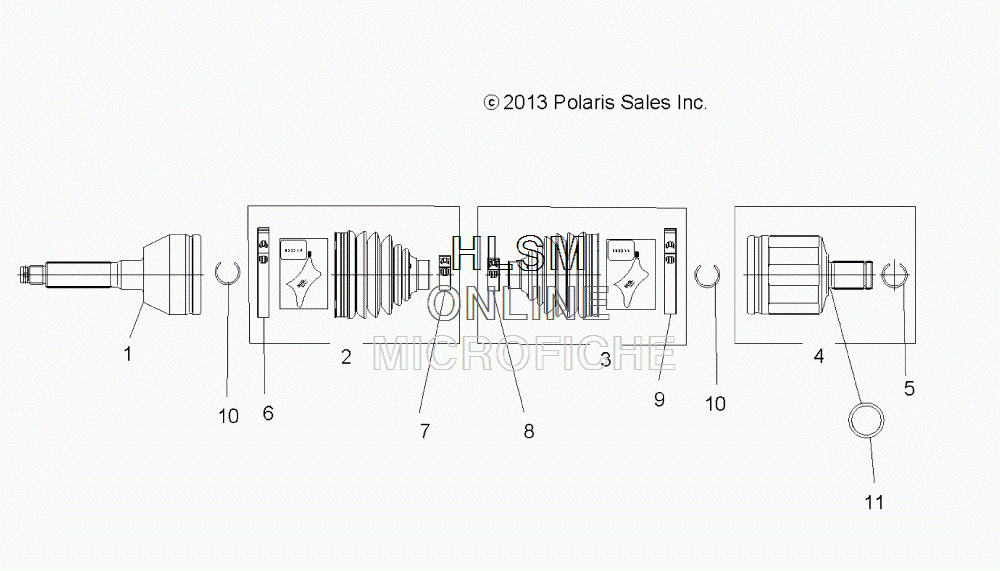

DRIVESHAFT - FRONT для Polaris SPORTSMAN 570 EFI/EPS FOREST TRACTOR (BRIGHT WHITE) [A15SES57CJ] - 2015 года выпуска
-
№АртикулНазвание
-
11332931 ASM., DRIVE SHAFT, FRONT (INCL. ALL)ASM., DRIVE SHAFT, FRONT (INCL. ALL)
-
12204700 JOINT, CV (INCL. JOINT ONLY)JOINT, CV (INCL. JOINT ONLY)
-
22204387 KIT, BOOT (INCL. CLAMPS, BOOT, GREASE)KIT, BOOT (INCL. CLAMPS, BOOT, GREASE)
-
32204387 KIT, BOOT (INCL. CLAMPS, BOOT, GREASE)KIT, BOOT (INCL. CLAMPS, BOOT, GREASE)
-
42204699 JOINT, PLUNGING (INCL. JOINT, CLIP)JOINT, PLUNGING (INCL. JOINT, CLIP)
-
57670092 CIRCLIPCIRCLIP
-
107710669 RING, SPRINGRING, SPRING
-
115414535 O-RINGO-RING
