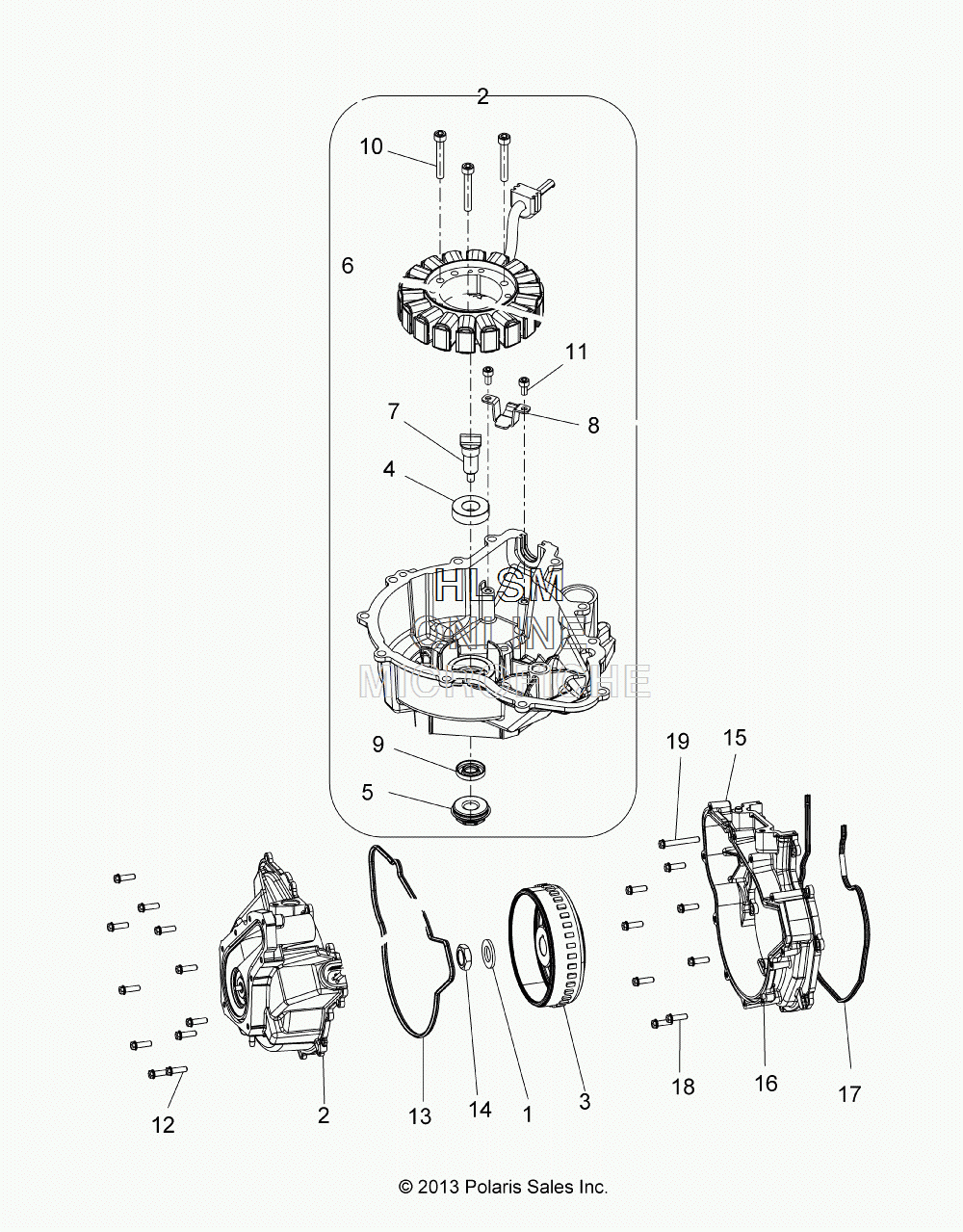

STATOR COVER AND FLYWHEEL для Polaris SPORTSMAN 570 EFI/EPS FOREST TRACTOR SAGE BRUSH GREEN METALLIC [A15SET57CA] - 2015 года выпуска
-
№АртикулНазвание
-
17556878 WASHERWASHER
-
21205069 ASM., STATOR COVER W/WATERPUMPASM., STATOR COVER W/WATERPUMP
-
34014688 FLYWHEELFLYWHEEL
-
43514696 BEARING, SHAFT, WATERPUMPBEARING, SHAFT, WATERPUMP
-
53610173 SEAL, WATERPUMP SHAFT, WATERSEAL, WATERPUMP SHAFT, WATER
-
64014406 STATORSTATOR
-
75138035 SHAFT, PUMP DRIVESHAFT, PUMP DRIVE
-
85254832 GUIDE, STATOR LEADGUIDE, STATOR LEAD
-
95411197 SEAL, TYPE SSEAL, TYPE S
-
107510005 SCREWSCREW
-
117517847 SCREWSCREW
-
127518576 SCREWSCREW
-
135415086 GASKET, STATOR COVERGASKET, STATOR COVER
-
147547488 NUT, JAM, RIGHT HANDNUT, JAM, RIGHT HAND
-
153022738 ASM., COVER, ENGINE INTER (BUILT 10/24/14 AND BEFORE)ASM., COVER, ENGINE INTER (BUILT 10/24/14 AND BEFORE)
-
153022723 ASM., COVER, ENGINE INTER (BUILT 10/25/14 AND AFTER)ASM., COVER, ENGINE INTER (BUILT 10/25/14 AND AFTER)
-
167661977 DOWELDOWEL
-
175415085 GASKET, MAG/INTER COVERGASKET, MAG/INTER COVER
-
187518576 SCREWSCREW
-
197519209 SCREWSCREW
