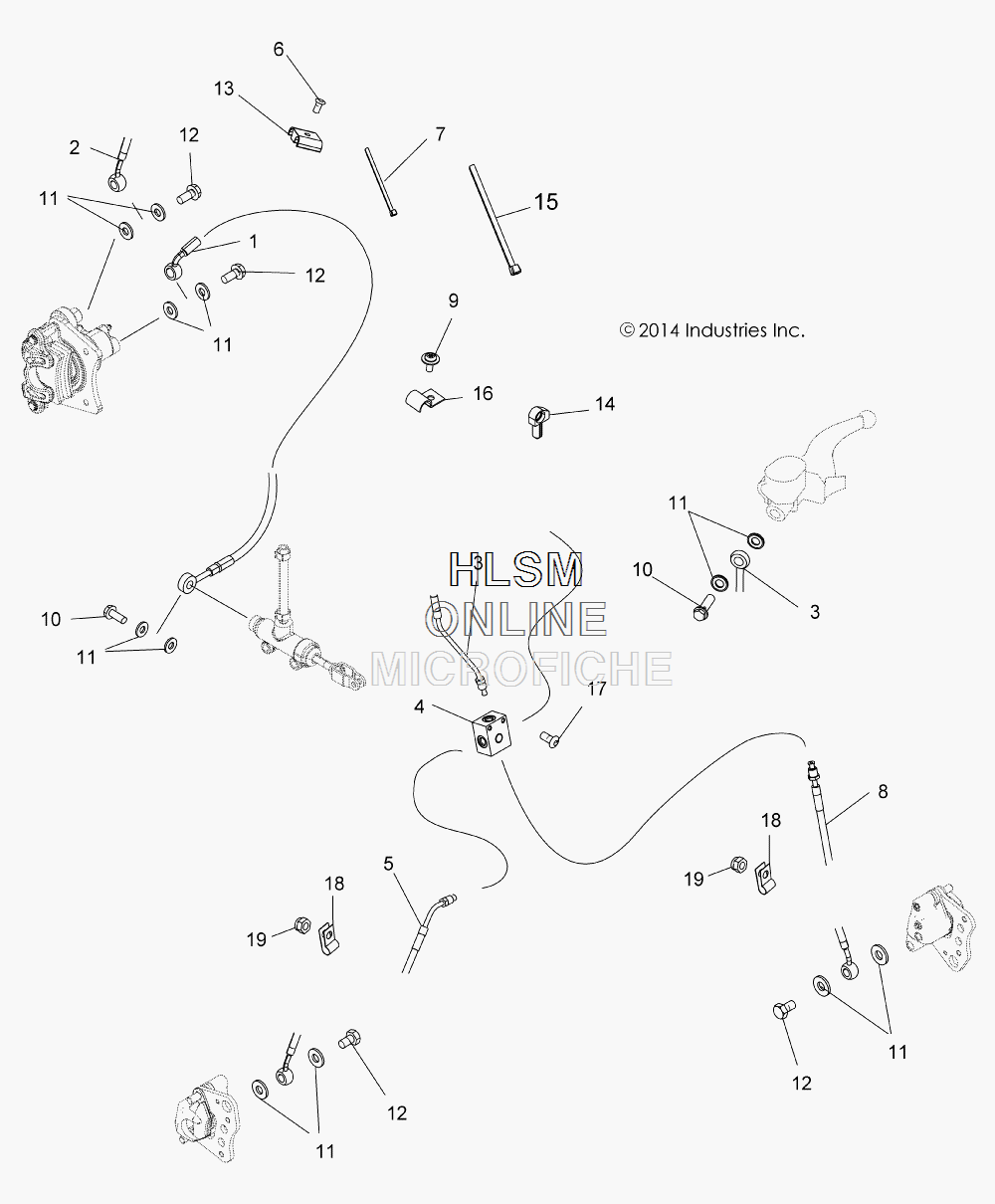

BRAKE LINES для Polaris SPORTSMAN 570 SP MD (SUNSET RED) [A15SHE57HS] - 2015 года выпуска
-
№АртикулНазвание
-
11911671 LINE, BRAKE, REAR, MASTER CYLINDERLINE, BRAKE, REAR, MASTER CYLINDER
-
21911652 LINE, BRAKE, JB TO REAR CALIPERLINE, BRAKE, JB TO REAR CALIPER
-
31910913 LINE, BRAKE, PODLINE, BRAKE, POD
-
47052292 FITTING, CROSSFITTING, CROSS
-
51912386 LINE, BRAKE, FRONTLINE, BRAKE, FRONT
-
67517756 SCREWSCREW
-
77080138 CABLE TIECABLE TIE
-
81912385 LINE, BRAKE, LEFT FRONTLINE, BRAKE, LEFT FRONT
-
97512024 SCREWSCREW
-
101910958 BOLT, BANJOBOLT, BANJO
-
115413212 SEALSEAL
-
121910499 BOLT, BANJOBOLT, BANJO
-
137670126 CLIP, RETAININGCLIP, RETAINING
-
147670102 CLIPCLIP
-
157080492 CABLE TIE, 11 INCHCABLE TIE, 11 INCH
-
167081940 CLIP, HALFCLIP, HALF
-
177512084 SCREWSCREW
-
187082067 CLIP-P, W/CUSHION, BLACK, VINYLCLIP-P, W/CUSHION, BLACK, VINYL
-
197547025 NUT, NYLOKNUT, NYLOK
