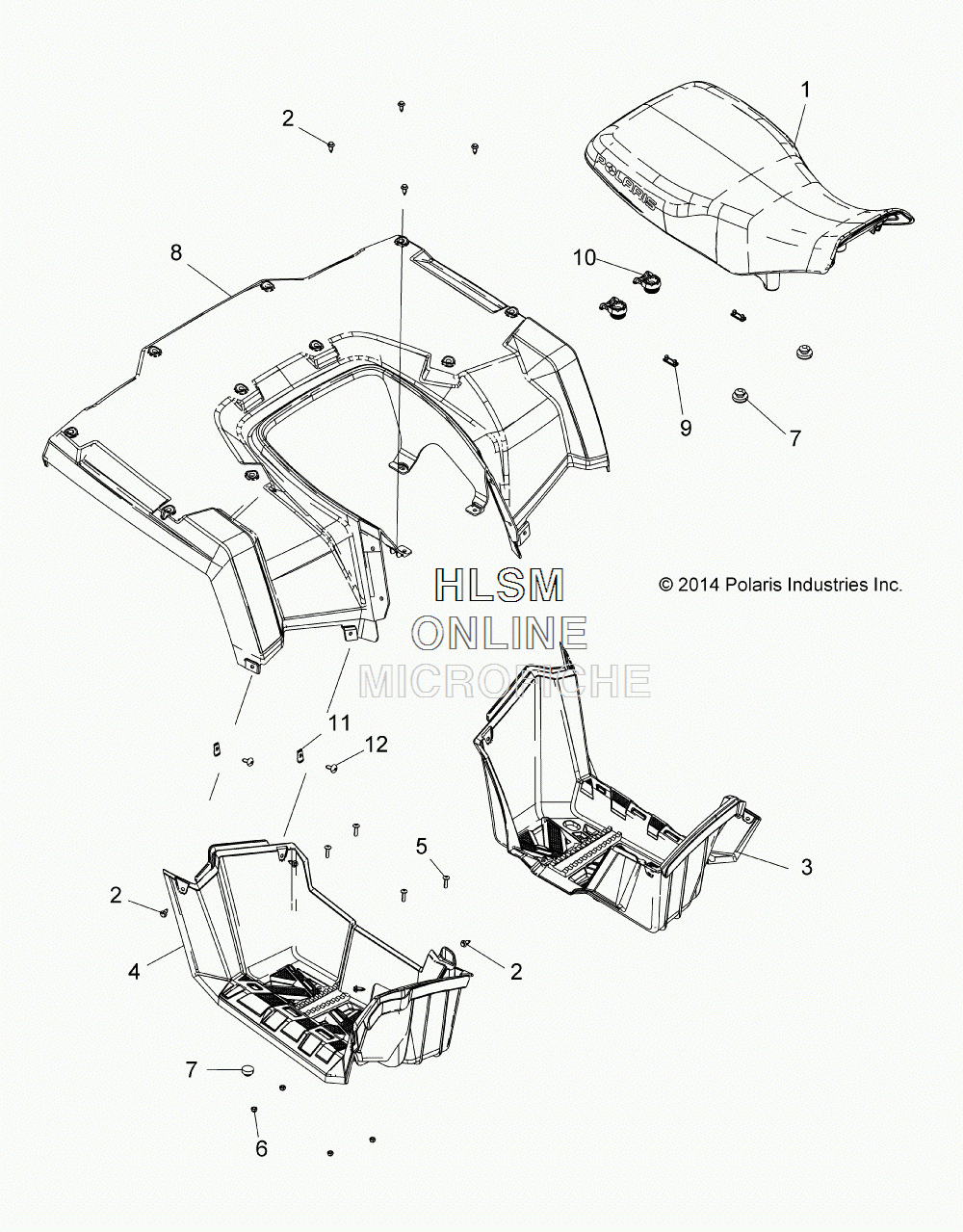

CAB - REAR - SEAT W/FOOTWELLS для Polaris SPORTSMAN 570 SP (SUNSET RED) [A15SHE57AS] - 2015 года выпуска
-
№АртикулНазвание
-
12686208-070 ASM., SEAT, BLACK (INCL. 7,9) (AM) (AS)ASM., SEAT, BLACK (INCL. 7,9) (AM) (AS)
-
12686207 ASM., COVER, SEAT, WHITE DECAL (AM) (AS)ASM., COVER, SEAT, WHITE DECAL (AM) (AS)
-
27661855 RIVETRIVET
-
35450523-070 FOOTWELL, BLACK, LEFT HANDFOOTWELL, BLACK, LEFT HAND
-
45450524-070 FOOTWELL, BLACK, RIGHT HANDFOOTWELL, BLACK, RIGHT HAND
-
57517230 SCREWSCREW
-
67542122 NUT, NYLOKNUT, NYLOK
-
75412067 BUMPER, RUBBERBUMPER, RUBBER
-
82635396-520 ASM., CAB, REAR, SUNSET RED (INCL. REFLECTORS) (AS)ASM., CAB, REAR, SUNSET RED (INCL. REFLECTORS) (AS)
-
95412982 BUMPER, SEATBUMPER, SEAT
-
105413691 GROMMET, SEAT LATCHGROMMET, SEAT LATCH
-
117670145 NUT, U-TYPENUT, U-TYPE
-
127518280 SCREWSCREW
