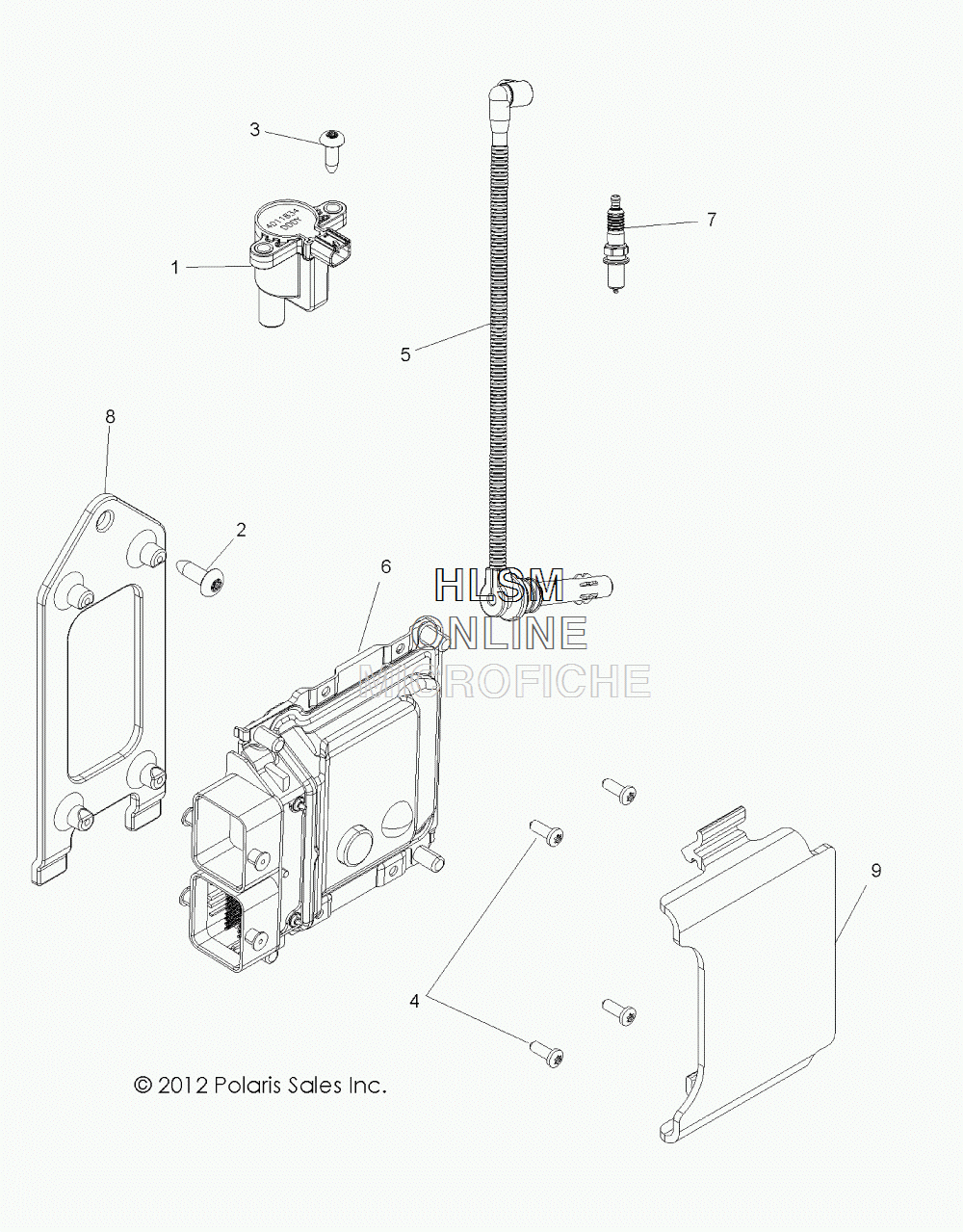

IGNITION для Polaris SPORTSMAN ACE 325 EURO SAGEBRUSH GREEN [A15DAA32EA] - 2015 года выпуска
-
№АртикулНазвание
-
14011834 COIL, IGNITIONCOIL, IGNITION
-
27518529 SCREWSCREW
-
37518529 SCREWSCREW
-
47519091 SCREWSCREW
-
54014795 WIRE, SPARK SLUG, PTOWIRE, SPARK SLUG, PTO
-
64012838 ECU, BASE, M17ECU, BASE, M17
-
73022662 PLUG, SPARKPLUG, SPARK
-
85438708-070 MOUNT, ECM, REAR, BLACKMOUNT, ECM, REAR, BLACK
-
95438786 COVER, ECMCOVER, ECM
