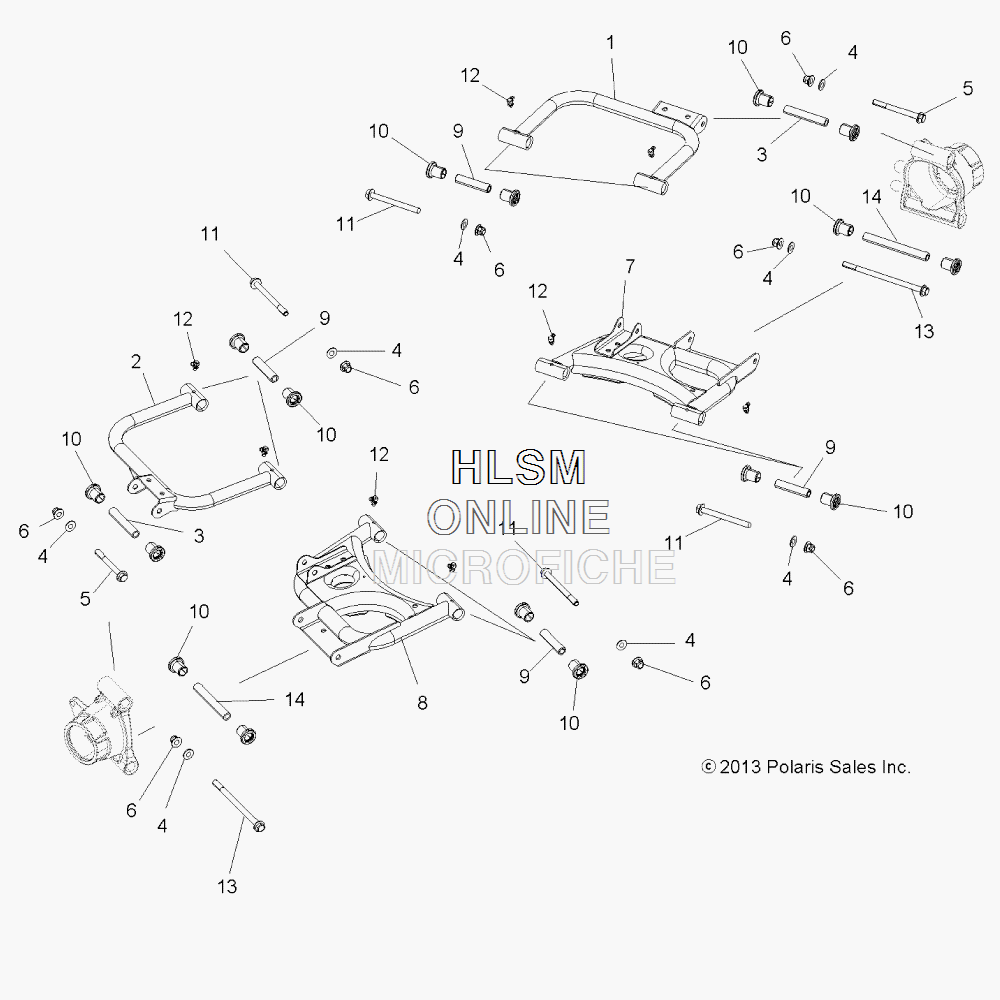

REAR CONTROL ARMS для Polaris SPORTSMAN ACE 325 EURO (WHITE LIGHTNING) [A15DAA32EJ] - 2015 года выпуска
-
№АртикулНазвание
-
11018121-458 ARM, CONTROL, UPPER, REAR, MATTE BLACK, LEFT HANDARM, CONTROL, UPPER, REAR, MATTE BLACK, LEFT HAND
-
21018123-458 ARM, CONTROL, UPPER, REAR, MATTE BLACK, RIGHT HANDARM, CONTROL, UPPER, REAR, MATTE BLACK, RIGHT HAND
-
35137592 SHAFT, PIVOTSHAFT, PIVOT
-
47556153 WASHERWASHER
-
57518566 BOLTBOLT
-
67547333 NUT, FLANGEDNUT, FLANGED
-
71018115-458 ARM, CONTROL LOWER, REAR, MATTE BLACK, LEFT HANDARM, CONTROL LOWER, REAR, MATTE BLACK, LEFT HAND
-
81018116-458 ARM, CONTROL LOWER, REAR, MATTE BLACK, RIGHT HANDARM, CONTROL LOWER, REAR, MATTE BLACK, RIGHT HAND
-
95138797 SHAFT, PIVOTSHAFT, PIVOT
-
105439874 BUSHING, STANDARD, ORVBUSHING, STANDARD, ORV
-
117519043 SCREWSCREW
-
127080510 FITTING, ZERKFITTING, ZERK
-
137519042 SCREWSCREW
-
145336724 TUBE, PIVOTTUBE, PIVOT
