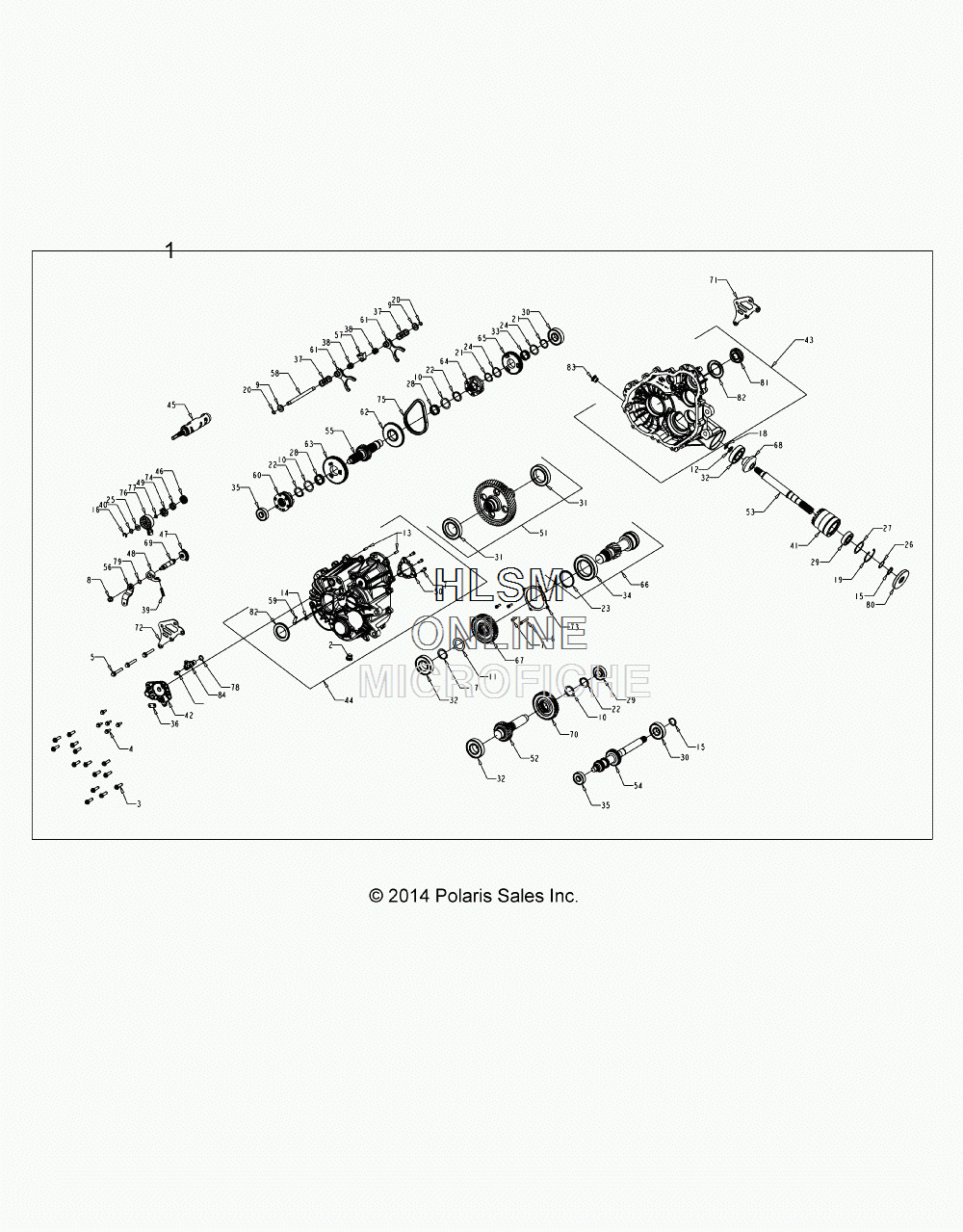

GEARCASE для Polaris SPORTSMAN ACE 325 HD (WHITE LIGHTNING) [A15DAH32EJ] - 2015 года выпуска
-
№АртикулНазвание
-
11333376 ASM., GEARCASE, COMPLETEASM., GEARCASE, COMPLETE
-
23234756 PLUG, MAGNETICPLUG, MAGNETIC
-
33234898 SCREWSCREW
-
43235206 SCREWSCREW
-
53235207 SCREWSCREW
-
63234086 SCREWSCREW
-
73235209 SCREWSCREW
-
83233961 NUTNUT
-
93234091 WASHER, CUPWASHER, CUP
-
103235211 WASHERWASHER
-
113235212 WASHERWASHER
-
123235213 WASHERWASHER
-
133234330 PIN, DOWELPIN, DOWEL
-
147043746 PIN, SPRING, SLOTTEDPIN, SPRING, SLOTTED
-
153233106 RING, RETAINING, EXTERNALRING, RETAINING, EXTERNAL
-
163233834 RING, SNAPRING, SNAP
-
173233364 RING, RETAINING, SHAFTRING, RETAINING, SHAFT
-
183234318 RING, RETAINING, EXTERNALRING, RETAINING, EXTERNAL
-
193234269 RING, RETAINING, INTERNALRING, RETAINING, INTERNAL
-
203234090 RING, RETAINING, EXTERNALRING, RETAINING, EXTERNAL
-
213234205 RING, RETAININGRING, RETAINING
-
223235214 RING, RETAINING, EXTERNALRING, RETAINING, EXTERNAL
-
233235216 RING, RETAININGRING, RETAINING
-
243233378 WASHER, THRUSTWASHER, THRUST
-
253234642 WASHER, THRUSTWASHER, THRUST
-
263234272 SHIMSHIM
-
273234273 SHIMSHIM
-
283233014 BEARING, NEEDLEBEARING, NEEDLE
-
293233019 BEARING, BALLBEARING, BALL
-
303233020 BEARING, BALLBEARING, BALL
-
313233268 BEARING, BALLBEARING, BALL
-
323234065 BEARING, BALLBEARING, BALL
-
333233384 BEARING, NEEDLEBEARING, NEEDLE
-
343235218 BEARING, BALLBEARING, BALL
-
353234652 BEARING, BALLBEARING, BALL
-
363235350 BRACKET, WIRE HARNESSBRACKET, WIRE HARNESS
-
373234078 SPRING, COMPRESSIONSPRING, COMPRESSION
-
383234089 SPRING, COMPRESSIONSPRING, COMPRESSION
-
393233830 SPRING, COMPRESSIONSPRING, COMPRESSION
-
403235327 SPRING, WASHERSPRING, WASHER
-
413234278 TUBETUBE
-
423234188 COVER, GEARSCOVER, GEARS
-
433235550 SUBASM., LEFT HAND CASE (INCL. ALL HARDWARE)SUBASM., LEFT HAND CASE (INCL. ALL HARDWARE)
-
443235549 SUBASM., RIGHT HAND CASE (INCL. ALL HARDWARE)SUBASM., RIGHT HAND CASE (INCL. ALL HARDWARE)
-
453235463 DRUM, SHIFTDRUM, SHIFT
-
463233839 GEAR, 16TGEAR, 16T
-
473233832 GEAR, 31TGEAR, 31T
-
483235452 SUBASM., PAWL, DETENT, ROLLERSUBASM., PAWL, DETENT, ROLLER
-
493235453 STAR, DETENTSTAR, DETENT
-
503235456 PLATE, PARK, 12 FACEPLATE, PARK, 12 FACE
-
513235335 SUBASM., OUTPUT (INCL. BEARINGS)SUBASM., OUTPUT (INCL. BEARINGS)
-
523235223 SHAFT, IDLER, 29TSHAFT, IDLER, 29T
-
533235394 SHAFT, FRONT OUTPUTSHAFT, FRONT OUTPUT
-
543235533 SHAFT, INPUTSHAFT, INPUT
-
553235451 SHAFT, REVERSE, 25TSHAFT, REVERSE, 25T
-
563235629 BELLCRANKBELLCRANK
-
573234073 COLLAR, SHIFTCOLLAR, SHIFT
-
583235542 RAIL, SHIFT SHAFTRAIL, SHIFT SHAFT
-
593234230 TUBE, VENTTUBE, VENT
-
603235457 SHIFT DOG, PARKSHIFT DOG, PARK
-
613235454 SUBASM., FORK, SHIFTSUBASM., FORK, SHIFT
-
623233854 SPROCKET, 48T, 6 FACESPROCKET, 48T, 6 FACE
-
633233852 GEAR, LOW, 67TGEAR, LOW, 67T
-
643235233 ENGAGEMENT DOG, 6 FACEENGAGEMENT DOG, 6 FACE
-
653235534 GEAR, 56TGEAR, 56T
-
663235336 SUBASM., PINION (INCL. BEARING AND RETAINING RINGSUBASM., PINION (INCL. BEARING AND RETAINING RING
-
673235236 GEAR, 46T, STAGE 3GEAR, 46T, STAGE 3
-
683235237 GEAR, 13T, SNORKELGEAR, 13T, SNORKEL
-
693235238 SHAFT, SHIFTSHAFT, SHIFT
-
703235450 GEAR, 48T, STAGE 2GEAR, 48T, STAGE 2
-
713235527 BRACKET, REAR MOUNTBRACKET, REAR MOUNT
-
723235528 BRACKET, REAR MOUNTBRACKET, REAR MOUNT
-
733235241 COVER, BEARINGCOVER, BEARING
-
743235243 SPACERSPACER
-
753234737 CHAIN, SILENTCHAIN, SILENT
-
767661999 SWITCH, ROTARY, 2 PIN RESISTIVESWITCH, ROTARY, 2 PIN RESISTIVE
-
773233836 O-RINGO-RING
-
783234302 O-RINGO-RING
-
793233828 O-RINGO-RING
-
803234113 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
-
813234851 SEAL, DUAL LIPSEAL, DUAL LIP
-
823235052 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
-
833234755 PLUGPLUG
-
844013908 SENSOR, SPEEDSENSOR, SPEED
