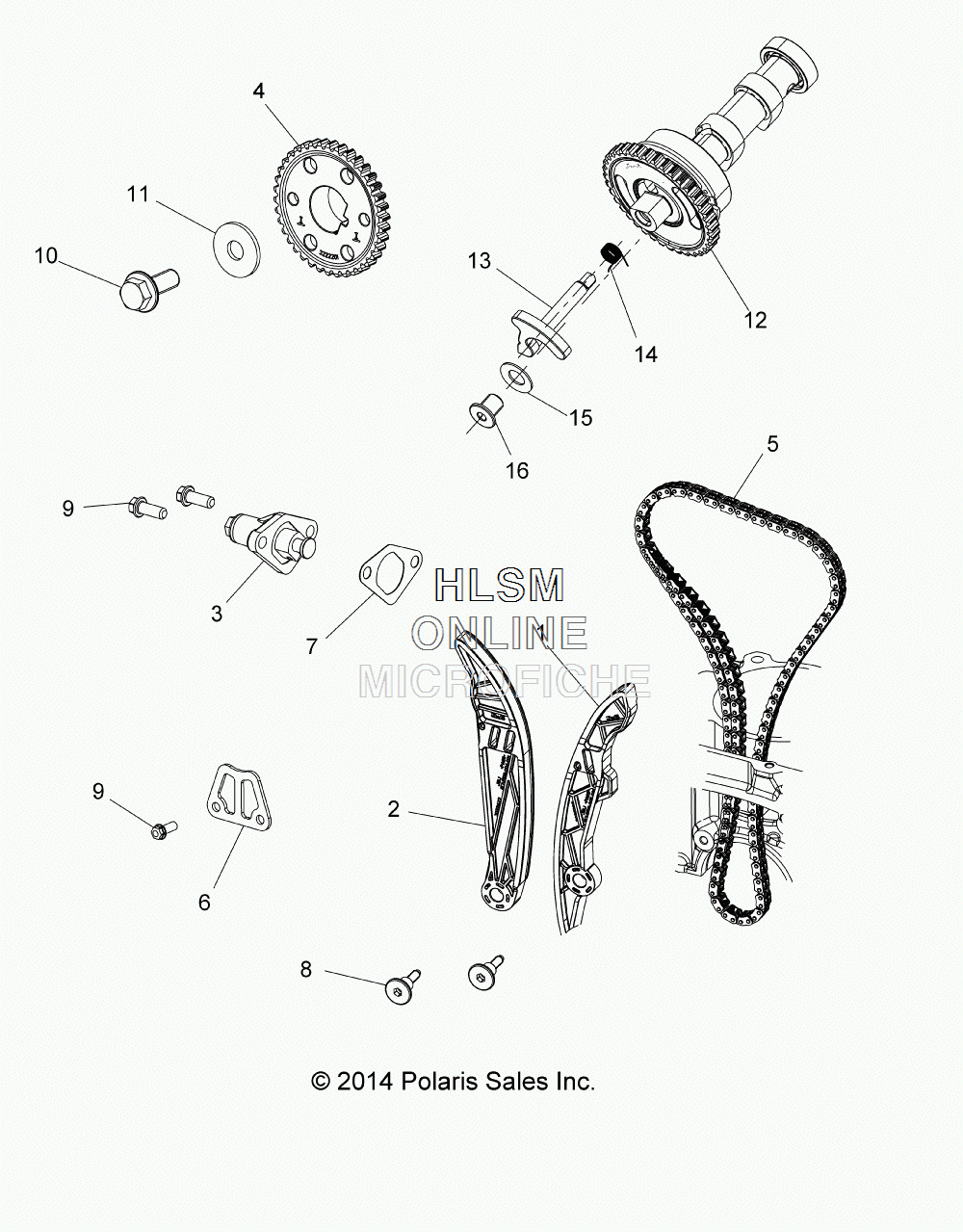

CAM CHAIN W/ SPROCKET для Polaris SPORTSMAN ETX EFI MD SAGE BRUSH GREEN METALLIC [A15SEA32HA] - 2015 года выпуска
-
№АртикулНазвание
-
13022393 GUIDE, FIXEDGUIDE, FIXED
-
23022427 GUIDE, TENSIONERGUIDE, TENSIONER
-
33022429 TENSIONERTENSIONER
-
43222201 SPROCKET, INTAKESPROCKET, INTAKE
-
53222203 CHAINCHAIN
-
65439738 GUIDE, CAM DRIVE, LOWERGUIDE, CAM DRIVE, LOWER
-
75814107 GASKET, TENSIONERGASKET, TENSIONER
-
87519350 SCREW, SHOULDERSCREW, SHOULDER
-
97518548 SCREWSCREW
-
107519349 SCREWSCREW
-
117556698 WASHER, FLATWASHER, FLAT
-
122205584 KIT, ASM., CAMSHAFT, EXHAUSTKIT, ASM., CAMSHAFT, EXHAUST
-
136230763 SHAFT, DECOMPSHAFT, DECOMP
-
147043802 SPRING, DECOMPSPRING, DECOMP
-
157043804 SPRING, DISCSPRING, DISC
-
167519348 SCREWSCREW
