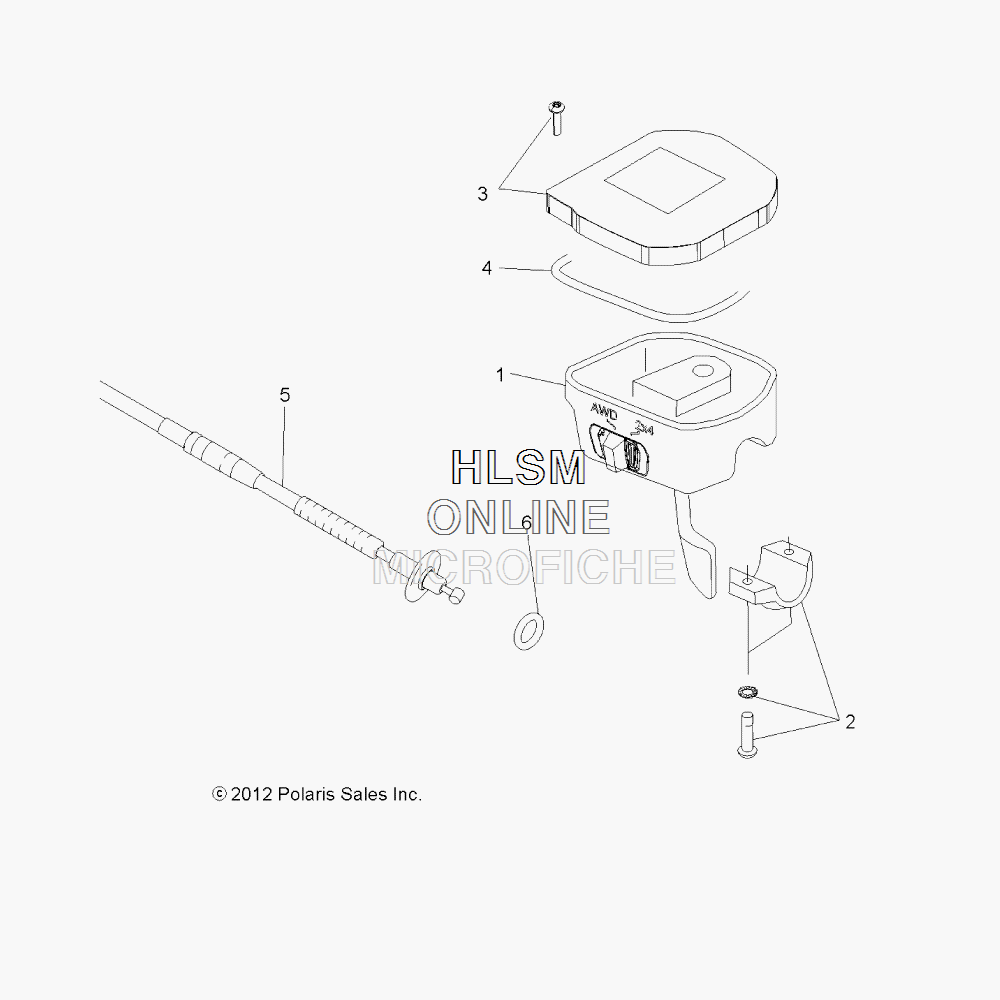

THROTTLE ASSEMBLY для Polaris SPORTSMAN TOURING 570 SAGE GREEN [A15SDA57AA] - 2015 года выпуска
-
№АртикулНазвание
-
12010403 ASM., RIGHT HANDC, 2 POSITION (INCL. 2)ASM., RIGHT HANDC, 2 POSITION (INCL. 2)
-
22010191 ASM., THROTTLE CLAMP (INCL. CLAMP, WASHERS, SCREWS)ASM., THROTTLE CLAMP (INCL. CLAMP, WASHERS, SCREWS)
-
35438268 COVER, CONTROL, RIGHT HAND (INCL. SCREWS)COVER, CONTROL, RIGHT HAND (INCL. SCREWS)
-
45413268 SEAL, THROTTLE CONTROLSEAL, THROTTLE CONTROL
-
57081861 CABLE, THROTTLE (INCL. 6)CABLE, THROTTLE (INCL. 6)
-
58360056-38 TUBING, CONVOLUTEDTUBING, CONVOLUTED
-
57080138 TIE, STRAPTIE, STRAP
-
65410193 O-RINGO-RING
