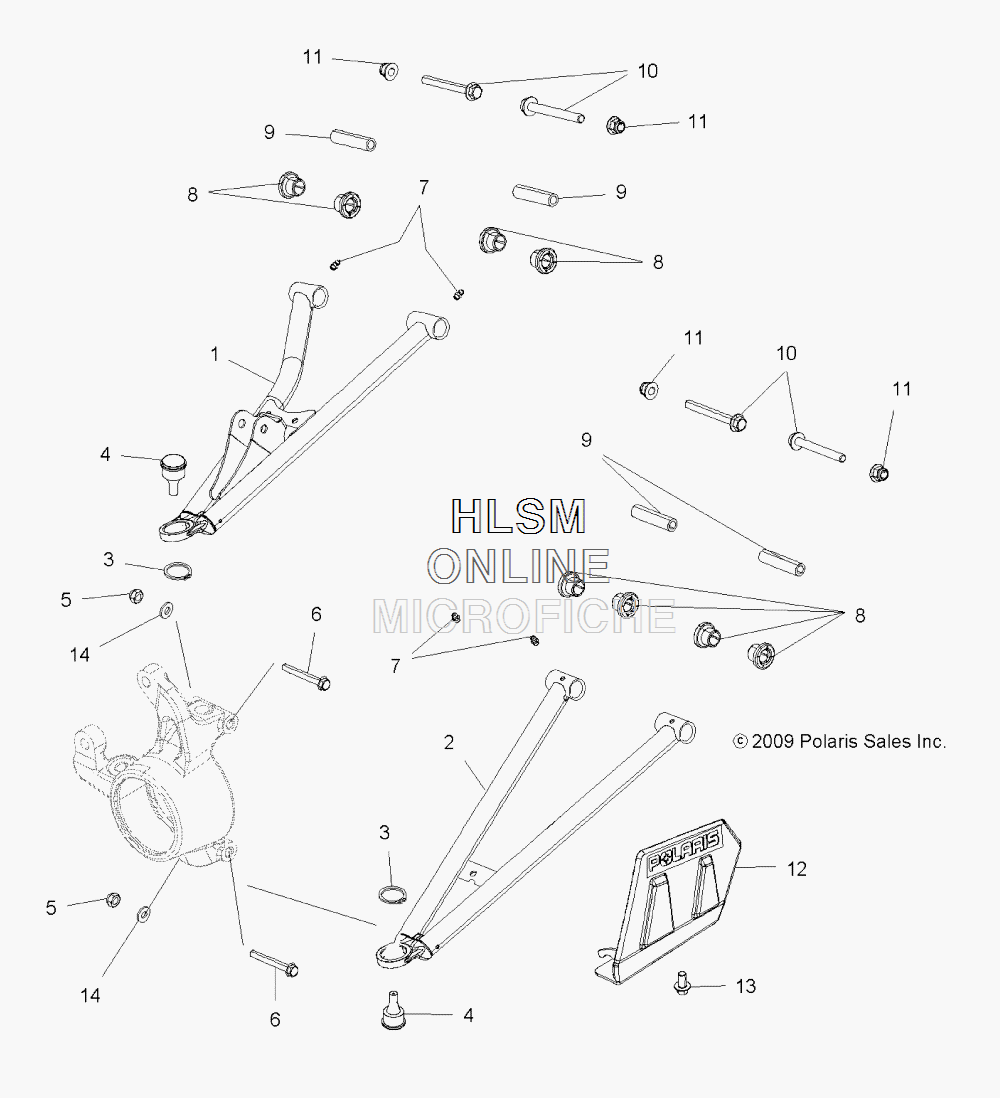

A-ARMS - FRONT для Polaris SPORTSMAN TOURING XP 1000 BRONZE MIST [A15SYE95AX] - 2015 года выпуска
-
№АртикулНазвание
-
11019808-067 ARM, CONTROL, UPPER, FRONT, LEFT HAND, BLACKARM, CONTROL, UPPER, FRONT, LEFT HAND, BLACK
-
11019809-067 ARM, CONTROL, UPPER, FRONT, RIGHT HAND, BLACKARM, CONTROL, UPPER, FRONT, RIGHT HAND, BLACK
-
21019810-067 ARM, CONTROL, LOWER, FRONT, BLACK, LEFT HANDARM, CONTROL, LOWER, FRONT, BLACK, LEFT HAND
-
21019811-067 ARM, CONTROL, LOWER, FRONT, BLACK, RIGHT HANDARM, CONTROL, LOWER, FRONT, BLACK, RIGHT HAND
-
37710533 RING, RETAININGRING, RETAINING
-
47061187 JOINT, BALL, LONG STUD (BUILT 8/28/14 AND BEFORE)JOINT, BALL, LONG STUD (BUILT 8/28/14 AND BEFORE)
-
47061220 JOINT, BALL (BUILT 8/29/14 AND AFTER)JOINT, BALL (BUILT 8/29/14 AND AFTER)
-
57547405 NUT, NYLOKNUT, NYLOK
-
67519212 SCREW, FLANGESCREW, FLANGE
-
77080433 FITTING, LUBRICATINGFITTING, LUBRICATING
-
85439874 BUSHINGBUSHING
-
95137346 SHAFT, A-ARMSHAFT, A-ARM
-
107518466 BOLT, FLANGEBOLT, FLANGE
-
117547313 NUT, FLANGENUT, FLANGE
-
125436657-070 SHIELD, CV, FRONT, LEFT HAND, BLACKSHIELD, CV, FRONT, LEFT HAND, BLACK
-
125436658-070 SHIELD, CV, FRONT, RIGHT HAND, BLACKSHIELD, CV, FRONT, RIGHT HAND, BLACK
-
137518529 SCREWSCREW
-
147556557 WASHERWASHER
