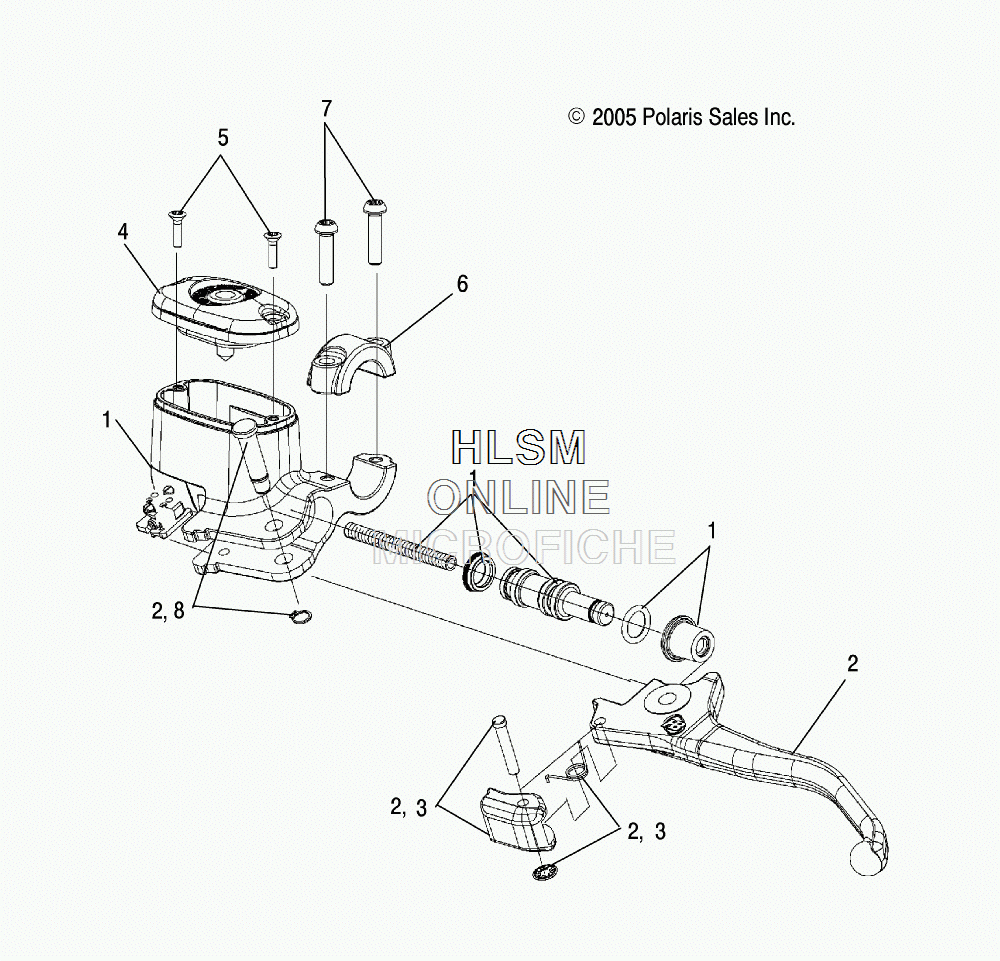

BRAKE - FRONT MASTER CYLINDER для Polaris SPORTSMAN X2 570 EPS (INDY RED) [A15SWE57AD] - 2015 года выпуска
-
№АртикулНазвание
-
82205641 ASM., MASTER CYLINDER (INCL. ALL)ASM., MASTER CYLINDER (INCL. ALL)
-
12205642 PISTON, SUBASM., RESERVOIR BODY (INCL. PISTON, SEALS, SPRING, BODY)PISTON, SUBASM., RESERVOIR BODY (INCL. PISTON, SEALS, SPRING, BODY)
-
22203053 KIT, LEVER, PARK BRAKE LEVER (INCL. BRAKE LEVER, PARK LEVER, PINS, SPRING, SNAP RINGS)KIT, LEVER, PARK BRAKE LEVER (INCL. BRAKE LEVER, PARK LEVER, PINS, SPRING, SNAP RINGS)
-
32203054 KIT, SUB ASM., PARK LEVER (INCL. PIN, LEVER, SPRING, RING)KIT, SUB ASM., PARK LEVER (INCL. PIN, LEVER, SPRING, RING)
-
42203055 KIT, MASTER CYLINDER COVER (INCL., COVER W/SEAL)KIT, MASTER CYLINDER COVER (INCL., COVER W/SEAL)
-
52203056 KIT, SCREW, COVER (INCL. 2 SCREWS)KIT, SCREW, COVER (INCL. 2 SCREWS)
-
62203093 KIT, CLAMP (INCL. CLAMP ONLY)KIT, CLAMP (INCL. CLAMP ONLY)
-
72203058 KIT, SCREW, CLAMP (INCL. 2 SCREWS)KIT, SCREW, CLAMP (INCL. 2 SCREWS)
-
82203059 KIT, PIN PIVOT, AND RING, SNAP (INCL. BRAKE LEVER, PIN, SNAP RING)KIT, PIN PIVOT, AND RING, SNAP (INCL. BRAKE LEVER, PIN, SNAP RING)
