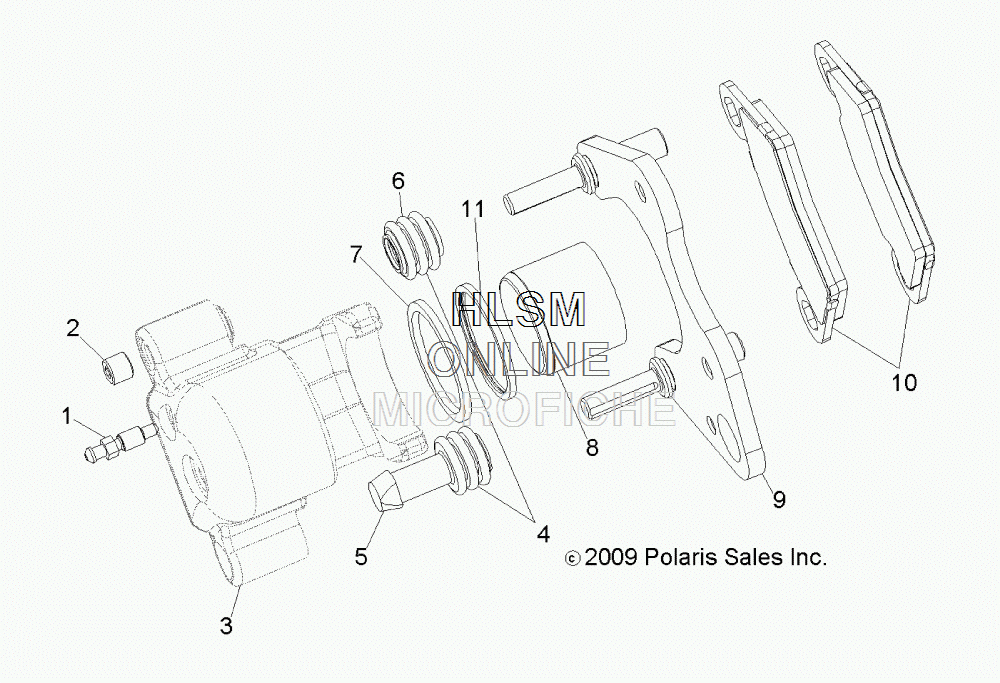

BRAKE - FRONT CALIPER для Polaris SPORTSMAN X2 570 EPS SAGE GREEN [A15SWE57AA] - 2015 года выпуска
-
№АртикулНазвание
-
91911616 ASM., CALIPER, BRAKE, FRONT, LEFT HANDASM., CALIPER, BRAKE, FRONT, LEFT HAND
-
21911617 ASM., CALIPER, BRAKE, FRONT, RIGHT HANDASM., CALIPER, BRAKE, FRONT, RIGHT HAND
-
17081343 SCREW, BLEEDERSCREW, BLEEDER
-
27518863 SCREW, SOCKET SETSCREW, SOCKET SET
-
41930642 KIT, FRONT BRAKE BOOT (INCL. 5,6)KIT, FRONT BRAKE BOOT (INCL. 5,6)
-
55412505 BOOT, BUSHINGBOOT, BUSHING
-
65412506 BOOT, PIN SEALBOOT, PIN SEAL
-
75412010 SEAL, CALIPER, INNERSEAL, CALIPER, INNER
-
85132829 PISTON, BRAKEPISTON, BRAKE
-
91910513 ASM., CALIPER, MOUNT FRONTASM., CALIPER, MOUNT FRONT
-
102202413 KIT, BRAKE PAD ASM.KIT, BRAKE PAD ASM.
-
115412011 SEAL, CALIPER, OUTERSEAL, CALIPER, OUTER
