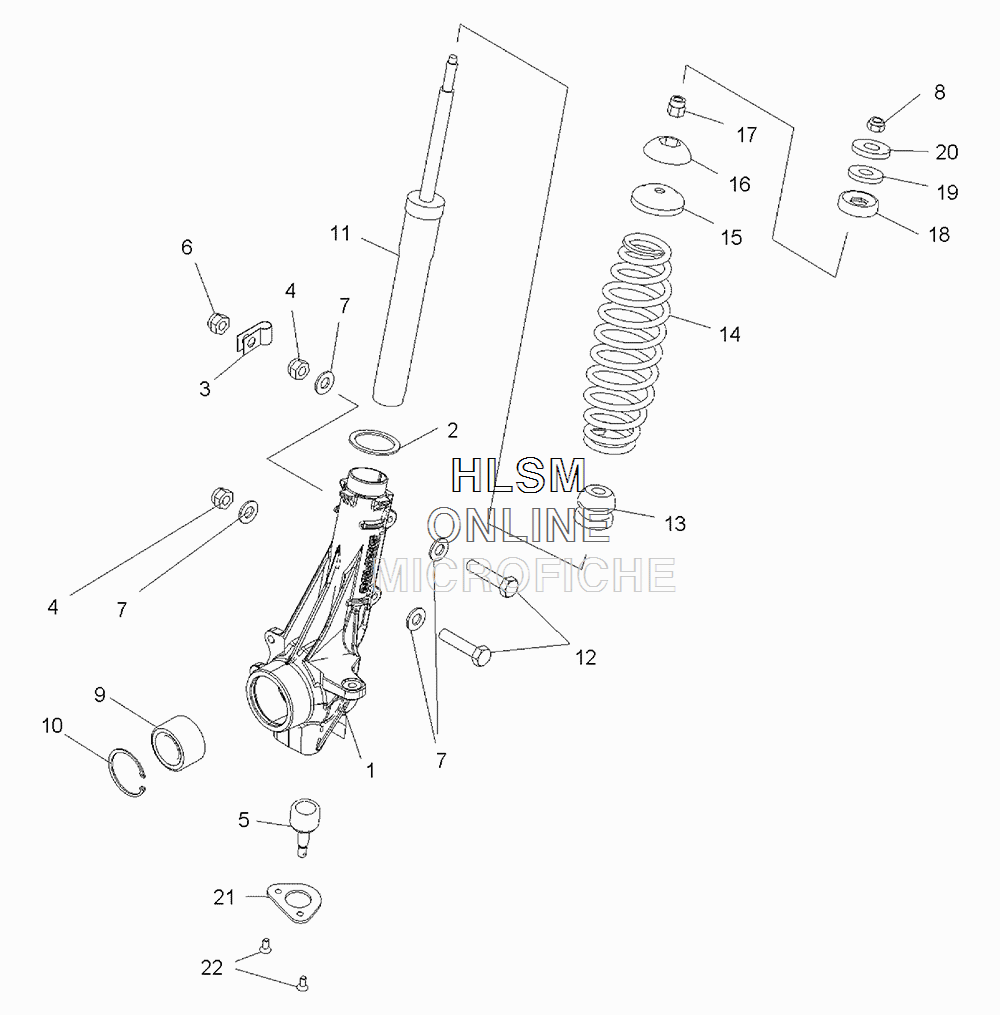

SUSPENSION - FRONT STRUT для Polaris ACE 325 EFI (INDY RED) [A16DAA32A7] - 2016 года выпуска
-
№АртикулНазвание
-
11823974 ASM., HUBSTRUT, LH, 4X4 ((INCL. 5,9,10,21,22,STRUT))ASM., HUBSTRUT, LH, 4X4 ((INCL. 5,9,10,21,22,STRUT))
-
11823975 ASM., HUBSTRUT, RH, 4X4 ((INCL. 5,9,10,21,22,STRUT))ASM., HUBSTRUT, RH, 4X4 ((INCL. 5,9,10,21,22,STRUT))
-
25211115 WASHERWASHER
-
37080367 CLAMP, CABLECLAMP, CABLE
-
47542324 NUT, NYLOKNUT, NYLOK
-
57061158 JOINT, BALL GREASELESSJOINT, BALL GREASELESS
-
67542344 NUT, NYLOK, THINNUT, NYLOK, THIN
-
77558402 WASHER, FLATWASHER, FLAT
-
87547104 NUTNUT
-
93514634 BEARING, WHEELBEARING, WHEEL
-
107710507 RING, RETAININGRING, RETAINING
-
117041762 STRUT, FRONTSTRUT, FRONT
-
127512312 BOLTBOLT
-
135412665 BUMPERBUMPER
-
147044267-458 SPRING, COMPRESSION, MATTE BLACKSPRING, COMPRESSION, MATTE BLACK
-
155243364 RETAINER, SPRINGRETAINER, SPRING
-
165432871 BALL, PIVOT, BOTTOMBALL, PIVOT, BOTTOM
-
175132062 SPACERSPACER
-
185432872 BALL, PIVOT, TOPBALL, PIVOT, TOP
-
195810291 SPACER, RUBBERSPACER, RUBBER
-
207555749 WASHERWASHER
-
215211121 BRACKET, BALL JOINTBRACKET, BALL JOINT
-
227512284 BOLT, SOCKETBOLT, SOCKET
-
11823974 ASM., HUBSTRUT, LH, 4X4 ((INCL. 5,9,10,21,22,STRUT))ASM., HUBSTRUT, LH, 4X4 ((INCL. 5,9,10,21,22,STRUT))
-
11823975 ASM., HUBSTRUT, RH, 4X4 ((INCL. 5,9,10,21,22,STRUT))ASM., HUBSTRUT, RH, 4X4 ((INCL. 5,9,10,21,22,STRUT))
-
25211115 WASHERWASHER
-
37080367 CLAMP, CABLECLAMP, CABLE
-
47542324 NUT, NYLOKNUT, NYLOK
-
57061158 JOINT, BALL GREASELESSJOINT, BALL GREASELESS
-
67542344 NUT, NYLOK, THINNUT, NYLOK, THIN
-
77558402 WASHER, FLATWASHER, FLAT
-
87547104 NUTNUT
-
93514634 BEARING, WHEELBEARING, WHEEL
-
107710507 RING, RETAININGRING, RETAINING
-
117041762 STRUT, FRONTSTRUT, FRONT
-
127512312 BOLTBOLT
-
135412665 BUMPERBUMPER
-
147044267-458 SPRING, COMPRESSION, MATTE BLACKSPRING, COMPRESSION, MATTE BLACK
-
155243364 RETAINER, SPRINGRETAINER, SPRING
-
165432871 BALL, PIVOT, BOTTOMBALL, PIVOT, BOTTOM
-
175132062 SPACERSPACER
-
185432872 BALL, PIVOT, TOPBALL, PIVOT, TOP
-
195810291 SPACER, RUBBERSPACER, RUBBER
-
207555749 WASHERWASHER
-
215211121 BRACKET, BALL JOINTBRACKET, BALL JOINT
-
227512284 BOLT, SOCKETBOLT, SOCKET
