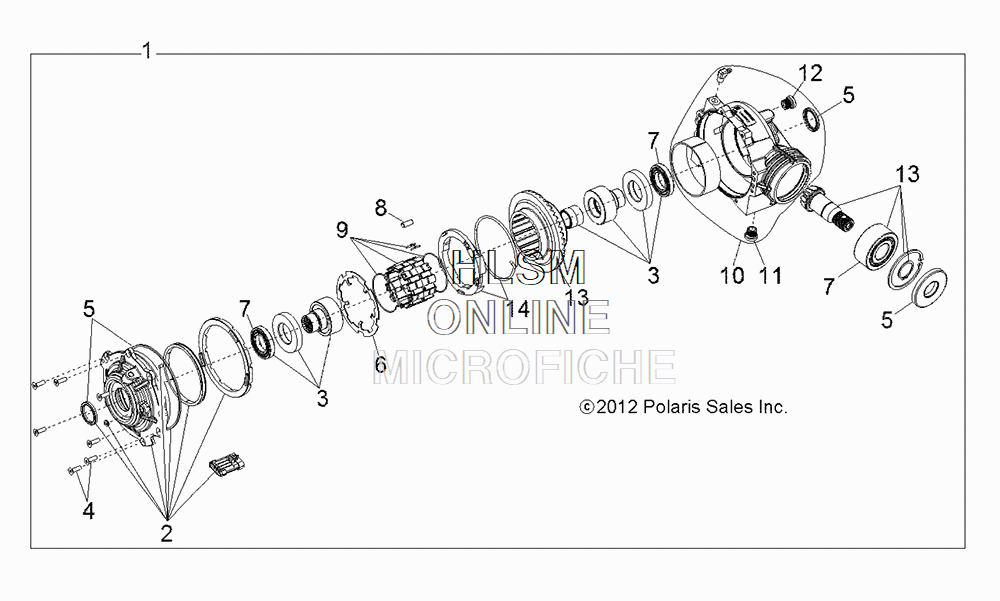

GEARCASE - INTERNAL COMPONENTS - FRONT для Polaris ACE 325 EFI (SAGEBRUSH GREEN) [A16DAA32A1] - 2016 года выпуска
-
№АртикулНазвание
-
11333285 ASSY, FRONT GEARCASE (W/2-13)ASSY, FRONT GEARCASE (W/2-13)
-
23235168 ASSY, COVER OUTPUT (SEE NOTE)ASSY, COVER OUTPUT (SEE NOTE)
-
33235169 KIT, HUB ASSY (W/BUSHING, HUB SUB. ASSY AND NYLON SPACER)KIT, HUB ASSY (W/BUSHING, HUB SUB. ASSY AND NYLON SPACER)
-
43235170 KIT, FASTENER (W/ALL FASTENERS)KIT, FASTENER (W/ALL FASTENERS)
-
53235171 KIT, SEAL REPAIR (W/ALL SEALS)KIT, SEAL REPAIR (W/ALL SEALS)
-
63235485 PLATE, ARMATUREPLATE, ARMATURE
-
73235174 BEARING, PINION (W/ALL BEARINGS)BEARING, PINION (W/ALL BEARINGS)
-
83234393 KIT, ROLLER (W/COMPLETE SET OF ROLLER)KIT, ROLLER (W/COMPLETE SET OF ROLLER)
-
93235261 ASSY, ROLL CAGE ZN (W/ROLL CAGE AND SPRING WIRE FOR H-CLIP)ASSY, ROLL CAGE ZN (W/ROLL CAGE AND SPRING WIRE FOR H-CLIP)
-
93235262 ASSY, ROLL CAGE ALUM (HIGH PERFORMANCE ACCESSORY W/CLIP SET)ASSY, ROLL CAGE ALUM (HIGH PERFORMANCE ACCESSORY W/CLIP SET)
-
103235440 KIT, GEARCASE ASSY (W/HOSE FITTING, BUSHING, SEAL, GEARCASE, FILL PLUG AND DRAIN PLUG)KIT, GEARCASE ASSY (W/HOSE FITTING, BUSHING, SEAL, GEARCASE, FILL PLUG AND DRAIN PLUG)
-
112203738 PLUG, DRAINPLUG, DRAIN
-
122203739 PLUG, FILLPLUG, FILL
-
133235636 KIT, GEAR HOUSING AND PINION (W/RING GEAR ASSY, PINION, BEARING, INTERNAL RING AND SHAFT RING)KIT, GEAR HOUSING AND PINION (W/RING GEAR ASSY, PINION, BEARING, INTERNAL RING AND SHAFT RING)
-
143235712 KIT, SPRING (W/TORSION SPRING AND SPRINT RETAINER ASSY)KIT, SPRING (W/TORSION SPRING AND SPRINT RETAINER ASSY)
